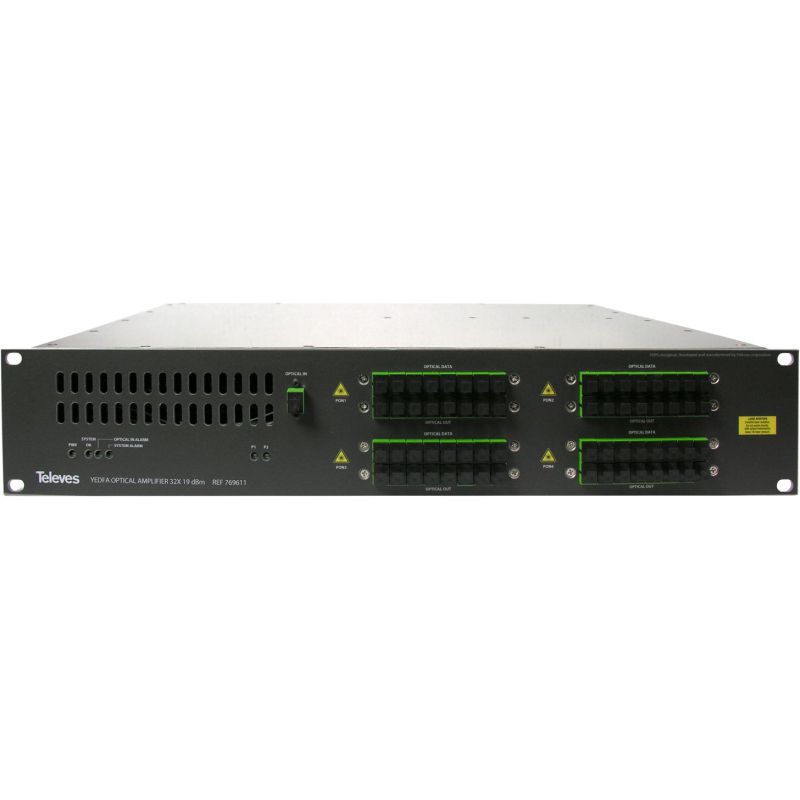

Optical amplifier YEDFA 32 outputs 20dBm + WDM Televes
search
  • Optical amplifier YEDFA 32 outputs 20dBm + WDM Televes

Optical amplifier YEDFA 32 outputs 20dBm + WDM Televes

This device consists of: an amplifier and a WDM. Designed to mix the RF Overlay service with GPON. High output optical power amplifier of 20dBm. Includes WDM for RF Overlay multiplexing with GPON signals. Input range from -10 to +10dBm. Application to include RF Overlay in GPON headers. Indicated to cover great distances. SC/APC connectors. Televes 769611

€12,576.74
Tax included
Reference televes-769611
Brand Televes
Quantity
Available in 24/48h

Free shipping
Optical amplifier YEDFA 32 outputs 20dBm + WDM Televes

Optical amplifier YEDFA 32 outputs 20dBm + WDM Televes

€12,576.74

32-output YEDFA optical amplifier with WDM, 1550 nm, Po 20dBm

This device consists of an amplifier and a WDM. Designed to mix the RF Overlay service with GPON.
The optical amplifier amplifies a 1550nm optical signal, with an output power of 20dBm. Based on YEDFA (Erbium and ytterbium doped fiber) technology, it provides a high gain, a higher optical power, and a low noise factor.
Equipped with WDM, it provides 32 x 1310 nm/1490 nm-inputs that multiplex the amplified 1550 nm-signal, providing 32 x 1310 nm /1490 nm /1550 nm-outputs to be used in a GPON headend (usually OLT).

Highlights

  • 20 dBm high-optical output power amplifier
  • Equipped with WDM for the multiplexing of RF Overlay with GPON signals
  • -10 dBm to +10 dBm input range
  • Status LED indicators
  • High-efficiency power supply
  • Hot swappable double power supply: subscriber service is not interrupted

Features

  • Application to include RF Overlay in GPON headends
  • Suitable for long distances
  • SC/APC connectors

Specifications

Optical Ports number 1 RF Overlay @ Optical IN
32 GPON @ Optical DATA
32 (GPON + RF Overlay) @ Optical OU
Operating wave length nm 1310 ± 20 @ Upstream
1490 ± 20 @ Downstream
1548 ... 1565 @ RF Overlay
Input RF overlay dBm -5 ... +10
Output power RF overlay dBm 20 @ 1550 nm
Uniformity dB 0.5
Noise figure dB 5 (Pin= 0 dBm @ 1550 nm)
Insertion loss (1310 & 1490nm) dB <1
Optical connector type SC/APC
Return loss dB <40
General Input power V~ 99 - 264
Frequency range Hz 50/60
Max. input consumption mA~ 600
Max. input power W 55
Working temperature ºC / ºF -5 ... + 45 / + 23 ... + 113
Humidity % 10 ... 95
Protection Index IP 20
