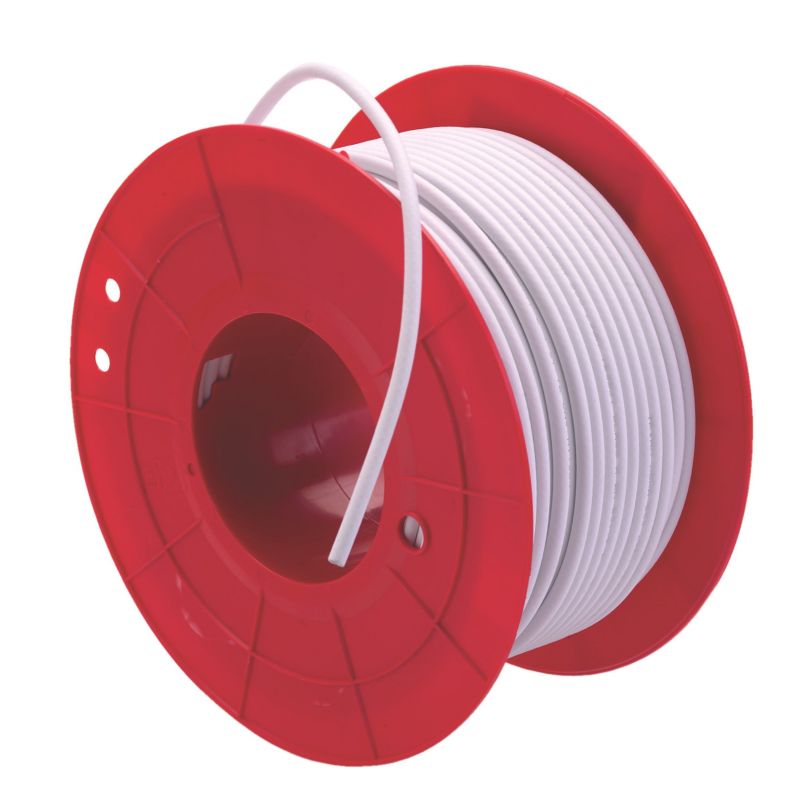

Triax KOKA F6 Plus PVC coaxial cable coil 500m white LTE
Triax KOKA F6 Plus is a premium cable for in-house installations. The wide frequency range allows the cable to carry signals for both television, radio, satellite receivers etc., whether the signal comes from satellite, terrestrial antenna or cable-tv. Coil 500m White.
€320.01
Tax included
Reference
triax-151142
Brand
Triax
Triax KOKA F6 Plus PVC coaxial cable coil 500m white LTE
€320.01
Triax KOKA F6 Plus is a premium cable for in-house installations. The wide frequency range allows the cable to carry signals for both television, radio, satellite receivers etc., whether the signal comes from satellite, terrestrial antenna or cable-tv.
- This cable is designed with a center conductor of Copper Clad Steel (CCS) which offers high mechanical strength.
- Due to the gas injected foam, which is far superior to the chemical foam, the copper cladding carries the signals without great losses.
- A good quality conductor and appropriate gas injected dielectric grants velocity ratio higher than 80%.
- The PVC material is UV protected, meaning the cable stay white for a long time in sunny and warm weather conditions.
- For outdoor installation we highly recommend the coax cables with PE jacket, as this material simply is more resistant to weather conditions.
-
CPR compliant - Fire class Eca according to the EN50575 fire standard
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702661511424 |
| CONSTRUCTION | |
| Dielectric - dimension | 4.57 ± 0.1 mm |
| Dielectric - material | PE foam |
| Jacket – dimension | 6.9 ± 0.2 mm |
| Jacket - material | PVC |
| Shield (First) foil 1 – material | Al/Pet bonded |
| Shield (First) foil 1 – overlap | 20 % |
| Shield (Second) – braid coverage | 60 ± 3 % |
| Shield (Second) – braid material | Al |
| Third shield – foil 2 – material | Al/Pet |
| Inner conductor - material | CCS |
| Inner conductor - dimension | 1.02 ± 0.03 mm |
| SHIELDING | |
| Screening attenuation @ 1000-2000 MHz | > 90 dB |
| Screening attenuation @ 2000-3000 MHz | > 95 dB |
| Screening attenuation @ 30-1000 MHz | > 100 dB |
| CHARACTERISTICS | |
| Type | KOKA F6 Plus |
| LOSS | |
| Attenuation (at 20°C) @ 1000 MHz | 21.5 dB |
| Attenuation (at 20°C) @ 1350 MHz | 25.3 dB |
| Attenuation (at 20°C) @ 1750 MHz | 28.4 dB |
| Attenuation (at 20°C) @ 200 MHz | 9.0 dB |
| Attenuation (at 20°C) @ 2150 MHz | 30.8 dB |
| Attenuation (at 20°C) @ 2400 MHz | 32.9 dB |
| Attenuation (at 20°C) @ 3000 MHz | 39.0 dB |
| Attenuation (at 20°C) @ 470 MHz | 15.2 dB |
| Attenuation (at 20°C) @ 50 MHz | 5.0 dB |
| Attenuation (at 20°C) @ 5 MHz | 2.4 dB |
| Attenuation (at 20°C) @ 862 MHz | 19.0 dB |
| RETURN LOSS | |
| Structural return loss @ 1000-2000 MHz | > 18 dB |
| Structural return loss @ 2000-3000 MHz | > 16 dB |
| Structural return loss @ 470-1000 MHz | > 21 dB |
| ELECTRICAL | |
| Outer DC resistance | < 38 Ω/km |
| Velocity ratio | 81 % |
| Impedance | 75 ± 3 Ω |
| Inner DC resistance | <100 Ω/km |
| OPERATIONAL | |
| Screening Efficiency | EN50117 (Class A) |
| Application | Indoor |
| Fire Class | Eca |
| DoP number | TR0008 |
| Notified Body | 0051 |
| MECHANICAL | |
| Packaging Depth | 0001 m |
| Packaging Height | 0.001 m |
| Total Weight | 0.047 kg |
| Packaging Width | 0.001 m |
| Length (m) | 500 m |
| Minimum bending radius - single/repeated | 23/70 mm |
| Net Weight | 0.052 kg |
| Tara Weight | 0.005 kg |
| Colour | White |
| Weight (kg) | 25 kg |
| Weight net | 24 kg |
