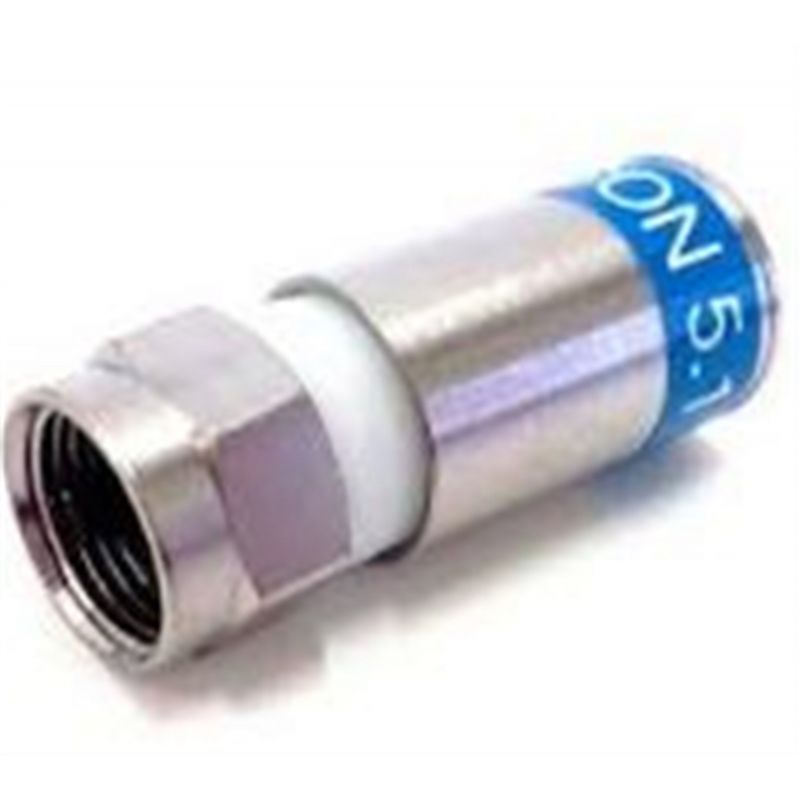

Cabelcon RG6 F Male 5.1mm compression connector
Connector for applications that require high quality and high shielding. Compression connector type F short Male 5.1mm
€1.01
€1.60
Save 37%
Tax included
Reference
triax-711564
Brand
Cabelcon
Cabelcon RG6 F Male 5.1mm compression connector
€1.01
€1.60
Save 37%
Connector for applications that require high quality & high shielding. F-type short compression connector Male F56-CX3-5.1.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5707957057518 |
| SHIELDING | |
| Shielding @ 30-1000 MHz | > 130 dB |
| Shielding @ 1000-2000 MHz | > 120 dB |
| Shielding @ 2000-3000 MHz | > 120 dB |
| TRANSFER IMPEDANCE | |
| Transfer Impedance @ 5-30 MHz | < 0.9 mΩ/m |
| CHARACTERISTICS | |
| Type | Connector F-compression |
| Cable type | 17 PAtC/VAtC, 18 PAtC/VAtC, KOKA 500 |
| Tool | 153603 |
| FREQUENCY | |
| Frequency range | 0.3-3000 MHz |
| LOSS | |
| Insertion loss (typ.) | -0.01 @ 860-1000 MHz dB |
| RETURN LOSS | |
| Return Loss | -37.1 @ 860-1000 MHz dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Screening Efficiency | EN50117 (Class A+) |
| Operating temperature range | -40 to +100 °C |
| MECHANICAL | |
| Max. Tensile Strength | 230 N/mm2 |
| Plating | Nitin-6 |
| Colour | Blue |
| Packing QTY | 100 |
| Net Weight | 0.010 kg |
| Total Weight | 0.010 kg |
