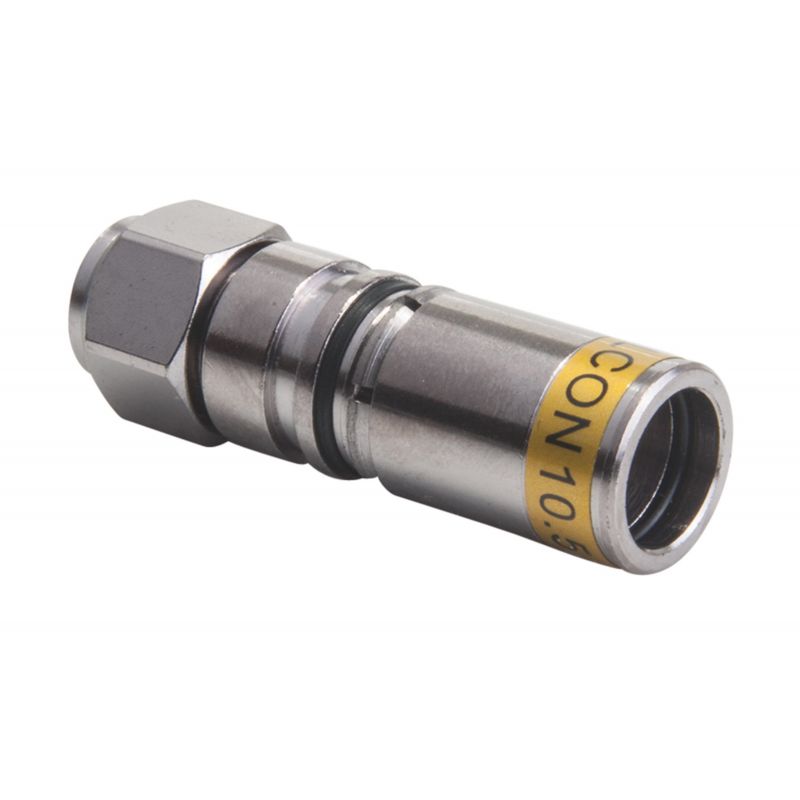

Compression connector Cabelcon RG11 F Male 10.5mm
Type F male compression connector for coaxial cables type RG11, easy mounting, 10.5mm.
€6.72
€10.67
Save 37%
Tax included
Reference
triax-711571
Brand
Cabelcon
Compression connector Cabelcon RG11 F Male 10.5mm
€6.72
€10.67
Save 37%
Type F male compression connector for coaxial cables type RG11, easy mounting, 10.5mm.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702667115718 |
| SHIELDING | |
| Shielding @ 30-1000 MHz | > 120 dB |
| Shielding @ 1000-2000 MHz | > 110 dB |
| Shielding @ 2000-3000 MHz | > 110 dB |
| TRANSFER IMPEDANCE | |
| Transfer Impedance @ 5-30 MHz | < 2.5 mΩ/m |
| CHARACTERISTICS | |
| Type | Connector F-compression |
| Cable type | RG 11 |
| Tool | 153603, 360920 |
| FREQUENCY | |
| Frequency range | 0.3-3000 MHz |
| LOSS | |
| Insertion loss (typ.) | -0.01 @ 860-1000 MHz dB |
| RETURN LOSS | |
| Return Loss | -38.7 @ 860-1000 MHz dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Screening Efficiency | EN50117 (Class A+) |
| Operating temperature range | -40 to +70 °C |
| MECHANICAL | |
| Max. Tensile Strength | >441 N/mm2 |
| Plating | Nitin-6 |
| Colour | Yellow |
| Packing QTY | 25 |
| Packaging Height | 0.002 m |
| Packaging Width | 0.006 m |
| Packaging Depth | 0.002 m |
| Net Weight | 0.027 kg |
| Total Weight | 0.027 kg |
