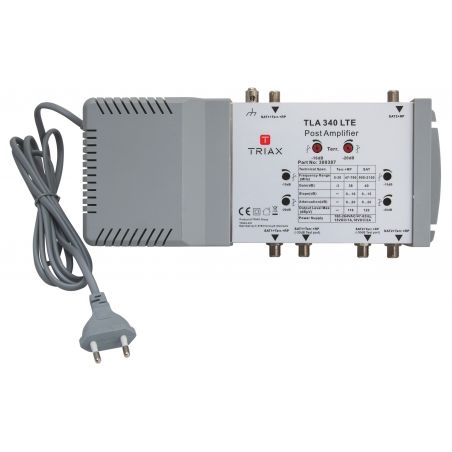

Triax TLA 340 LTE Amplifier Line inputs SAT/1x TER/RP outputs 2 SAT1+TER+RP/SAT2+TER+RP 2x (30dB TP)
search
  • Triax TLA 340 LTE Amplifier Line inputs SAT/1x TER/RP outputs 2 SAT1+TER+RP/SAT2+TER+RP 2x (30dB TP)

Triax TLA 340 LTE Amplifier Line inputs SAT/1x TER/RP outputs 2 SAT1+TER+RP/SAT2+TER+RP 2x (30dB TP)

TLA 340 is a 2-way SAT Post/Booster amplifier for 2-cable SAT-IF distribution plants. Additionally the amplifier offers a passive return path over the SAT1 and SAT2 way and. the cappability for gaining a terrestrial signal (Terr.) via the SAT1 way. The terrestrial frequency range is limitted up to 790MHz in order to reject LTE 800 interferences from the mobile radio services.

€315.81
Tax included
Reference triax-300387
Brand Triax
Quantity
Available Now

Free shipping
Triax TLA 340 LTE Amplifier Line inputs SAT/1x TER/RP outputs 2 SAT1+TER+RP/SAT2+TER+RP 2x (30dB TP)

Triax TLA 340 LTE Amplifier Line inputs SAT/1x TER/RP outputs 2 SAT1+TER+RP/SAT2+TER+RP 2x (30dB TP)

€315.81

TLA 340 is a 2-way SAT Post/Booster amplifier for 2-cable SAT-IF distribution plants.

Additionally the amplifier offers a passive return path over the  SAT1 and SAT2 way and. the cappability for gaining a terrestrial signal (Terr.) via the SAT1 way.

Gain and Slope for SAT as well as for Terr. can be adjusted at each of the transmission paths separately.

The terrestrial frequency range is limitted up to 790MHz in order to reject LTE 800 interferences from the mobile radio services.

Specifications

ORDER INFORMATION
EAN Number 5702663003873
CHARACTERISTICS
Type Amplifier - multiband
Return Path 5...30 MHz
Max. output level SAT @ -35 dB IMD3 120 dBµV
Max. Output level @ -60 dB IMD 118 dBµV
FREQUENCY
Frequency range 5...2150 MHz
Frequency range SAT 950...2150 MHz
Frequency range TER 5...790 MHz
GAIN
Gain - TER 38 dB
Gain - Satellite 1 [950-2150 MHz] 40...42 dB
Noise figure SAT 8 dB
Noise figure TER 6 dB
Slope 0...15/16 dB
LOSS
Attenuation 0...20 dB
RETURN LOSS
Return Loss IN SAT: 10.0 / TER: 8.0 / RET: 8.0 dB
Return Loss OUT SAT: 8.0 / TER: 8.0 / RET: 8.0 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
AC Supply voltage 180...240 / 47...63Hz VAC
CONNECTORS
Connector Type F-female
Number of inputs 2x SAT / 1x TER/RP
Number of outputs 2 SAT1+TER+RP / SAT2+TER+RP, 2x (30dB TP)
MECHANICAL
Packing QTY 1
Net Weight 0.950 kg
Total Weight 0.950 kg
