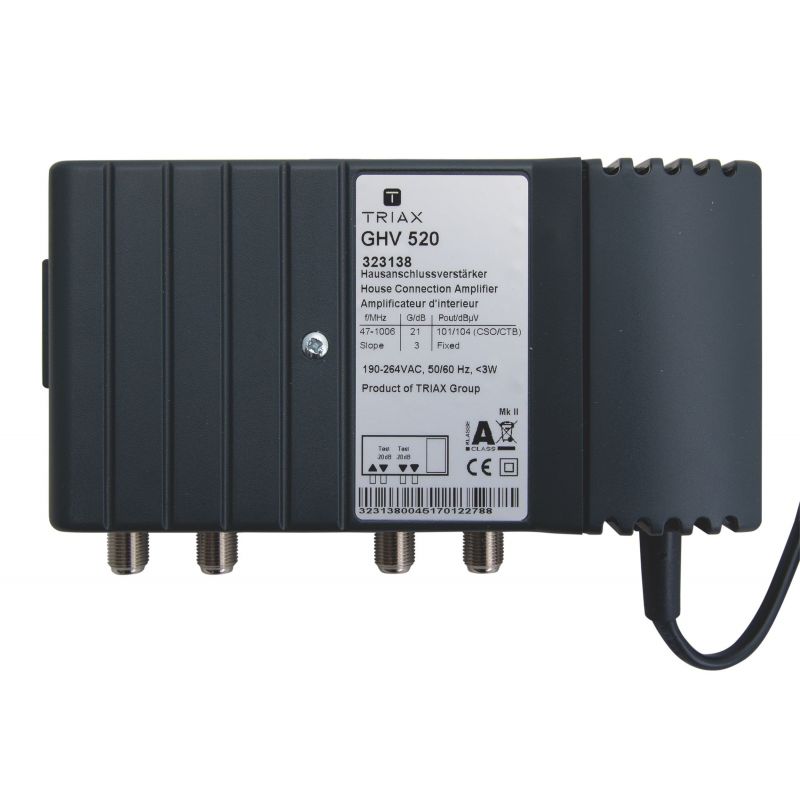

Triax GHV 520 Apartment Amplifier no RC Gain 20dB 47-1006MHz
TRIAX GHV 500 series is a low noise coaxial apartment- distribution amplifier, for use in smaller MATV distribution networks in multi dwelling houses.
€123.41
Tax included
Reference
triax-323138
Brand
Triax
Triax GHV 520 Apartment Amplifier no RC Gain 20dB 47-1006MHz
€123.41
TRIAX GHV 500 series is a low noise coaxial apartment- distribution amplifier, for use in smaller MATV distribution networks in multi dwelling houses.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663231382 |
| CHARACTERISTICS | |
| Type | Amplifier - indoor |
| Output level CTB @ 60 dB IMD | 104 dBµV |
| Output level CSO @ 60 dB IMD (42 ch) flat | 101 dBµV |
| FREQUENCY | |
| Frequency range | 47...1006 MHz |
| GAIN | |
| Noise figure - forward (VHF I "on") | 5.5 |
| Gain | 21 (@1006MHz) dB |
| Gain forward - Interstage | 0 / -3 fixe dB |
| Noise figure | 5.5 dB |
| LOSS | |
| Attenuation | 0...20 dB |
| Attenuation - interstage | 3 fix dB |
| RETURN LOSS | |
| Return loss - input (@ 40 MHz) | >18 |
| ELECTRICAL | |
| Linearity | ± 1.0 dB |
| Impedance | 75 Ω |
| OPERATIONAL | |
| AC Supply voltage | 190...264 VAC |
| Power Consumption (typ.) | <3 W |
| Operating temperature range | -25...+55 °C |
| IP Housing protection class | IP 20 |
| Reference standards | EN 50083-3 - Class 2 / EN 50083-1; EN 60065 / EN 50083 / 2RoHS 2002/95/EG compliant |
| Insulation Class | II |
| CONNECTORS | |
| RF connector - Test point input: bi-directional | -20 dB |
| RF connector - Test point output: directional | -20 dB |
| Connector Type | F-female |
| MECHANICAL | |
| Product Width | 170 mm |
| Product Height | 65 mm |
| Product Depth | 100 mm |
| Packing QTY | 1 |
| Packaging Height | 0.075 m |
| Packaging Width | 0.130 m |
| Packaging Depth | 0.230 m |
| Packaging Volume | 0.002 m3 |
| Net Weight | 0.710 kg |
| Tara Weight | 0.092 kg |
| Total Weight | 0.802 kg |
