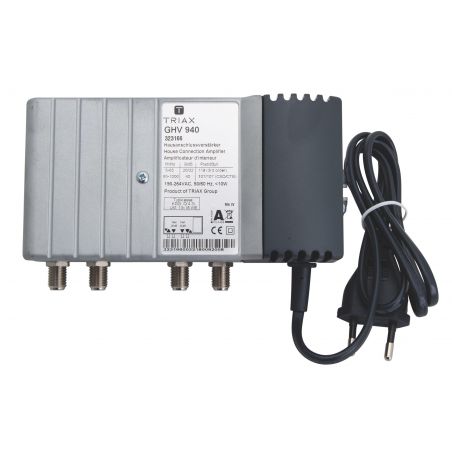

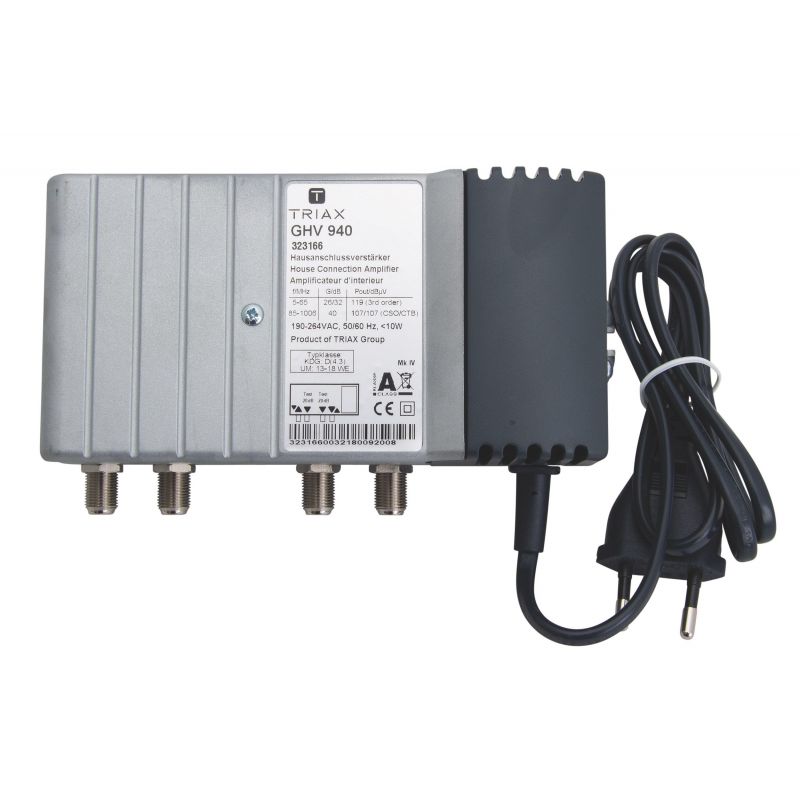

Triax GVH 940 Amplifier GCR 26/32dB 47-1006MHz G40dB
The GHV 940 is a low noise apartment distribution amplifier, for use in medium and large CATV networks of multi-dwelling buildings. It has a modular design with return channel for easy configuration and installation. Rotary switches and jumpers make adjusting the attenuation and equalization easy, keeping the up and down signal unchanged.
€299.86
Tax included
Reference
triax-323166
Brand
Triax
Triax GVH 940 Amplifier GCR 26/32dB 47-1006MHz G40dB
€299.86
The GHV 940 is a low noise apartment distribution amplifier, for use in medium and large CATV networks of multi-dwelling buildings. It has a modular design with return channel for easy configuration and installation. Rotary switches and jumpers make adjusting the attenuation and equalization easy, keeping the up and down signal unchanged.
Features
- Economic 1GHz technology.
- 40dB amplification / high output level.
- Adjustable attenuation and equalization configuration in 1dB steps using switches and rotary bridges.
- VHF band (RC=OFF) switchable or return channel (RC=ON) of 5-65 MHz.
- Selectable return channel: On/Off, Active/Passive.
- Amplification CR 26/32 dB.
- Return channel technology included, all features available without module.
- Optional automatic activation of return channel (ARA). (Switchable return channel blocker for noise elimination).
- All connectors are female F connectors, mounted individually.
- Input and output test connectors of 20 dB.
- Extensive ESD and protection against overvoltage.
- The unit is fed into the network through an EU type plug.
- Low consumption.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663231627 |
| CHARACTERISTICS | |
| Return Path | 5...65 MHz |
| Type | Amplifier - indoor |
| Output level IMD 2, EN 50083-3 | 104 dBµV |
| Output level IMD 3, EN 50083-5 | 107 dBµV |
| Output level return path | 120 dBµV |
| FREQUENCY | |
| Frequency range | 47...1006/85...1006 MHz |
| GAIN | |
| Noise figure - forward (VHF I "on") | 6.5 |
| Gain | 40 (@1006MHz) dB |
| Gain return (@60 MHz) | 22/32 dB |
| Noise figure | 6.5 dB |
| Noise figure return path | 5 dB |
| LOSS | |
| Equalization | 0...15 |
| Attenuation | 0...15 dB |
| Attenuation - interstage | 0/3/6/9 dB |
| RETURN LOSS | |
| Return loss - input (@ 40 MHz) | >18 |
| ELECTRICAL | |
| Linearity | ± 1.0 dB |
| Impedance | 75 Ω |
| OPERATIONAL | |
| AC Supply voltage | 190...264 VAC |
| Power Consumption (typ.) | <9 W |
| Operating temperature range | -25...+55 °C |
| IP Housing protection class | IP 20 |
| Reference standards | EN 50083-3 - Class 2 / EN 50083-1; EN 60065 / EN 50083 / 2RoHS 2002/95/EG compliant |
| Insulation Class | II |
| CONNECTORS | |
| RF connector - Test point input: bi-directional | -20 dB |
| RF connector - Test point output: directional | -20 dB |
| Connector Type | F-female |
| MECHANICAL | |
| Product Width | 170 mm |
| Product Height | 65 mm |
| Product Depth | 100 mm |
| Packing QTY | 1 |
| Packaging Height | 0.100 m |
| Packaging Width | 0.168 m |
| Packaging Depth | 0.065 m |
| Packaging Volume | 0.001 m3 |
| Net Weight | 0.715 kg |
| Tara Weight | 0.091 kg |
| Total Weight | 0.806 kg |
