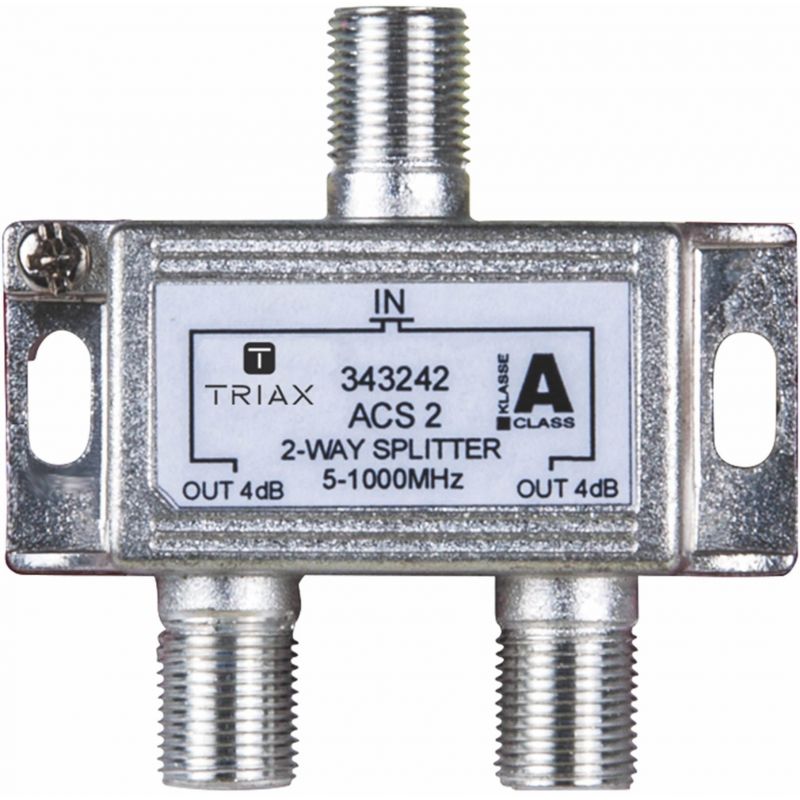

Triax ACS 2 2 way splitter F female 5-1000MHz
2 way splitter F female TRIAX optimal performance for use in CATV, SMATV & MATV. Frequency range 5-1000 MHz. High protection. Return loss Grade 2. High quality zamak housing. Internal driver of all blocked ports for AC/DC
€5.92
Tax included
Reference
triax-343242
Brand
Triax
Triax ACS 2 2 way splitter F female 5-1000MHz
€5.92
ACS 2 - 2 way splitter
TRIAX splitter all round performance for use in CATV, SMATV & MATV
- Frequency range 5-1000 MHz
- High shielding
- Return loss Grade 2
- High quality die cast housing Sn coated
- All ports AC/DC blocked at inner conductor
- Acc. to EN 50083-2 & EN 60728-4
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663432420 |
| SHIELDING | |
| Shielding effeciency VHF/UHF | > 110 dB |
| CHARACTERISTICS | |
| Type | COAX splitter |
| FREQUENCY | |
| Frequency range | 5...1000 MHz |
| LOSS | |
| Tap loss (in-tap) 5-40 MHz | 3.5 dB |
| Tap loss (in-tap) 40-470 MHz | 3.6 dB |
| Tap loss (in-tap) 470-860 MHz | 3.6 dB |
| Tap loss (in-tap) 860-1000 MHz | 4.0 dB |
| ISOLATION | |
| Isolation (tap-tap) 5-40 MHz | 30 dB |
| Isolation (tap-tap) 40-470 MHz | 32 dB |
| Isolation (tap-tap) 470-860 MHz | 28 dB |
| Isolation (tap-tap) 860-1000 MHz | 28 dB |
| RETURN LOSS | |
| Return loss (in-out) 5-40 MHz | 22 dB |
| Return loss (tap) 5-40 MHz | 22 dB |
| Return loss (in-out) 40-470 MHz | 21 dB |
| Return loss (tap) 40-470 MHz | 21 dB |
| Return loss (in-out) 470-860 MHz | 21 dB |
| Return loss (tap) 470-860 MHz | 21 dB |
| Return loss (in-out) 860-1000 MHz | 20 dB |
| Return loss (tap) 860-1000 MHz | 20 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Application | MATV, SMATV 1Ghz |
| Screening Efficiency | EN50083-2 (Class A) |
| Certification | IEC 60 728-2, IEC 60 728-4, IEC 60 728-11 |
| Environment | Indoor |
| CONNECTORS | |
| Number of outputs | 2 |
| Connector Type | F-female |
| MECHANICAL | |
| Bracket (optional) | 1x ACB-S / Art No 343232 |
| Main material | Zinc diecast/CuSn plated |
| Packing QTY | 1 |
| Packaging Height | 0.060 m |
| Packaging Width | 0.070 m |
| Packaging Depth | 0.030 m |
| Net Weight | 0.040 kg |
| Tara Weight | 0.005 kg |
| Total Weight | 0.045 kg |
