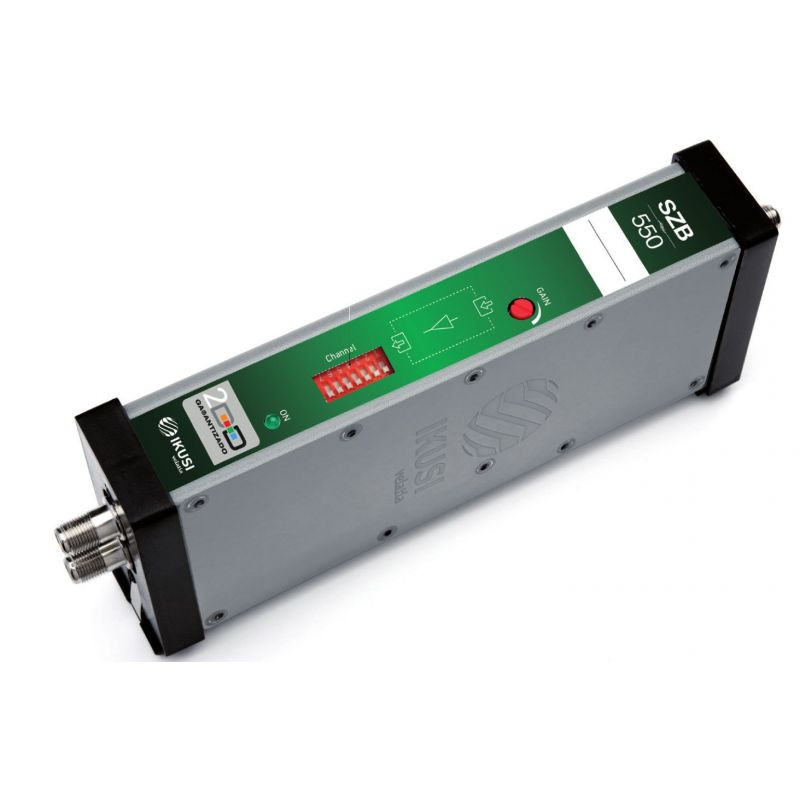

Ikusi SZB+550 Configurable UHF single-channel amplifier channels 21-48
Modular UHF modular single channel amplifier. High selectivity Channels configurable by the installer. Automatic Gain Control LTE 5G. A single stock reference for the entire UHF band (C21 ... 48). Compatible with existing headers, same format, same power.
€120.40
Tax included
Reference
ikusi-2260
Brand
Ikusi
Ikusi SZB+550 Configurable UHF single-channel amplifier channels 21-48
€120.40
Available in mid-February
Configurable UHF single-channel amplifier SZB+550
Features
- Simple and manual configuration, by the installer.
- A single stock reference for the entire UHF band (C21 ... 48).
- Compatible with existing headers, same format, same power.
- Automatic control of gain / stability of the output level.
- Adjustable filter from single-channel to four-channel.
- Greater dynamic input range (allows to work with weaker signals).
- Low level of noise figure.
- Mounting without tools on wall mounting brackets.
Specifications
| Model | SZB+550 | ||||
| Reference | 2260 | ||||
| TV system | AM-TV / DVB-T | ||||
| Connection | F female | ||||
| Covered band | MHZ | 470 - 694 | |||
| Filter bandwidth |
Channel MHz |
1 8 |
2 16 |
3 24 |
4 32 |
| Entry level | dBµV | 40 - 90 | |||
| Automatic Gain Control | dB | 50 | |||
| Output level regulation | dB | 30 | |||
| Typical output level (IMD3 -35 dB) | dBµV | 121 | |||
| Selectivity at the end of the channel ± 1 MHz | dB | 26 | |||
| Loss return output Z | dB | > 10 | |||
| Step losses at the Z output | dB | 0.5 | |||
| Feeding | VDC | +24 | |||
| Typical consumption | mA | 250 | |||
| Operating temperature | ºC | 0 .... + 45 | |||
