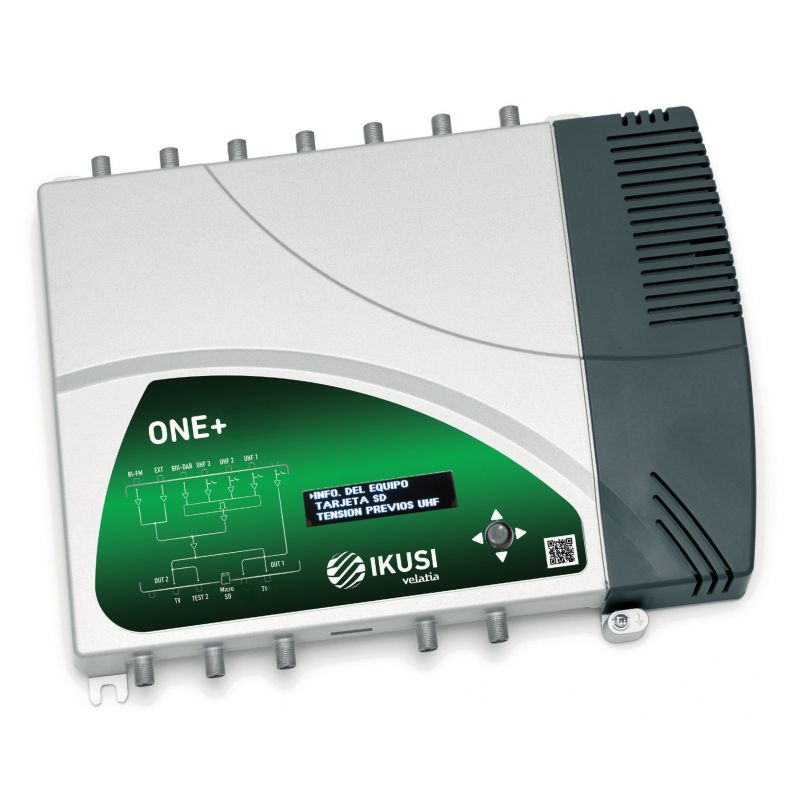

Ikusi ONE+ Digital programmable amplifier
Digital ONE+ programmable amplifier. High selectivity. Autoconfiguration in 10 seconds. Automatic Gain Control LTE 4G and 5G. Conversion of channels. Unique market with 131 dBμV Output level. 32 tunable VHF/UHF filters with variable bandwidth between 1 and 4 channels.
€532.40
Tax included
Reference
ikusi-2865
Brand
Ikusi
Ikusi ONE+ Digital programmable amplifier
€532.40
Digital ONE+ programmable amplifier
Features
- Unique market with 131 dBμV Output level.
- 32 tunable VHF/UHF filters with variable bandwidth between 1 and 4 channels.
- Larger Dynamic Input Range (allows to work with weaker signals).
- Remote maintenance (optional) via Wifi and Ethernet.
- Copy of configurations and software update in the field, by means of "microSD" card.
- Intuitive operation
- Auto programmable in 10 seconds.
- Oled screen.
- Configuration via Joystick and Micro SD.
- Coming soon, remote maintenance via wifi and ethernet.
Specifications
| MODEL | ONE+ ONE+ SAT | |||||||
| REF. | 2865 2864 | |||||||
| TV system | AM-TV / DVB-T | |||||||
| Inputs | 7 | |||||||
| BI/FM |
EXT (VHF/UHF) (only ONE+ SAT) |
BIII / DAB | UHF 3 | UHF 2 | UHF 1 |
FI-SAT (only ONE+ SAT) |
||
| Covered band | MHz | 47 - 108 | 47 - 240 / 470 - 862 | 174 - 240 |
470 - 862 470 - 790 470 - 694 |
950 - 2150 | ||
|
Number of programmable filters Number of channels per filter |
— |
32 1 - 4 |
— | |||||
| Filter bandwidth | MHz | — | — | 7 / 8 / DAB | 8 / 16 / 24 / 32 | |||
| Entry level | dBμV | 40 - 90 | 60 - 80 | 50 - 100 | 50 - 80 | |||
| CAG | dB | — | Sí | — | ||||
| Selectivity at the end of channel ± 1 MHz | dB | — | 35 | — | ||||
| Output level OUT 1 | dBμV | 131 (IMD3 -36 dB) | 131 (IMD3 -36 dB) | 118 (IMD3 -35 dB) | ||||
|
Output level OUT 1 + OUT 2 (sólo ONE+ SAT) |
dBμV | 128 (IMD3 -36 dB) | 128 (IMD3 -36 dB) | 118 (IMD3 -35 dB) | ||||
| Output level regulation | dB | 25 | 20 | 30 | 20 | |||
| Equalization | dB | — | 0 - 6 | 0 - 9 | ||||
| Noise figure | dB | < 6 | ||||||
| Test output | dB | -30 | ||||||
| Output voltage |
VDC mA |
— |
Off - 12 - 24 100 |
Bypass - 13 - 18 300 |
||||
| Tone | kHz | — | 0-22 | |||||
| Consumption | W | 25 | ||||||
| Operating temperature | ºC | -5 ... +50 | ||||||
| Protection index | IP | IP30 | ||||||
