Ikusi ONE+ SAT Digital programmable amplifier
search
  • Ikusi ONE+ SAT Digital programmable amplifier

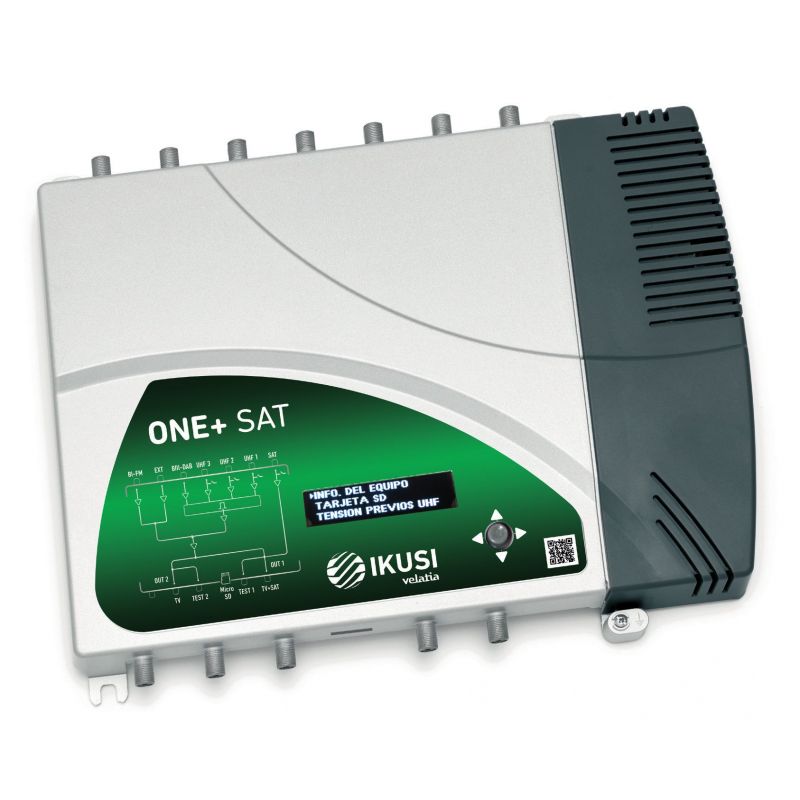

Ikusi ONE+ SAT Digital programmable amplifier

Digital ONE+ SAT programmable amplifier. High selectivity. Autoconfiguration in 10 seconds. Automatic Gain Control LTE 4G and 5G. Conversion of channels. Unique market with 131 dBμV Output level. 32 tunable VHF/UHF filters with variable bandwidth between 1 and 4 channels.

€544.50
Tax included
Reference ikusi-2864
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Ikusi ONE+ SAT Digital programmable amplifier

Ikusi ONE+ SAT Digital programmable amplifier

€544.50

Available in mid-February

Digital ONE+ SAT programmable amplifier

Features

  • Unique market with 131 dBμV Output level.
  • 32 tunable VHF/UHF filters with variable bandwidth between 1 and 4 channels.
  • Larger Dynamic Input Range (allows to work with weaker signals).
  • Remote maintenance (optional) via Wifi and Ethernet.
  • Copy of configurations and software update in the field, by means of "microSD" card.
  • Intuitive operation.
  • Auto programmable in 10 seconds.
  • Oled screen.
  • Configuration via Joystick and Micro SD.
  • Coming soon, remote maintenance via wifi and ethernet.

Specifications

MODEL   ONE+         ONE+ SAT
REF.    2865           2864
TV system   AM-TV / DVB-T
  Inputs   7
 BI/FM

EXT (VHF/UHF)

(only ONE+ SAT)

  BIII / DAB  UHF 3 UHF 2     UHF 1

FI-SAT

(only ONE+ SAT)
 Covered band  MHz   47 - 108   47 - 240 / 470 - 862   174 - 240

470 - 862

470 - 790

470 - 694

  950 - 2150

Number of programmable filters

Number of channels per filter

       —

32

1 - 4

  —
Filter bandwidth MHz — — 7 / 8 / DAB 8 / 16 / 24 / 32
Entry level dBμV 40 - 90 60 - 80  50 - 100   50 - 80
CAG dB  —  Sí   —
Selectivity at the end of channel ± 1 MHz dB  —  35   —
Output level OUT 1 dBμV  131 (IMD3 -36 dB)  131 (IMD3 -36 dB)   118 (IMD3 -35 dB)

Output level OUT 1 + OUT 2

(sólo ONE+ SAT)

  dBμV  128 (IMD3 -36 dB)     128 (IMD3 -36 dB)       118 (IMD3 -35 dB)
Output level regulation dB 25 20  30   20
Equalization dB  —  0 - 6   0 - 9
Noise figure dB   < 6
Test output dB   -30
Output voltage

VDC

mA

     —

Off - 12 - 24

100

Bypass - 13 - 18

300
Tone kHz   —     0-22
Consumption W   25
Operating temperature ºC   -5 ... +50
Protection index IP   IP30
