SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 9SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 7044 AND id_lang = 1 Inverto HOME Pro Single Universal 40mm PLL LNB 4K 0.3dB 1 output
LNB Universal Single HOME Pro 4K 0.3dB 1 output
search
  • LNB Universal Single HOME Pro 4K 0.3dB 1 output

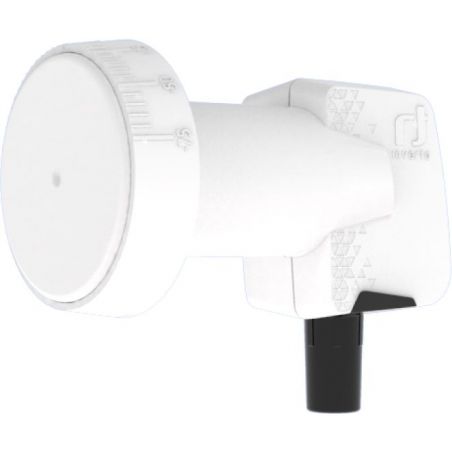

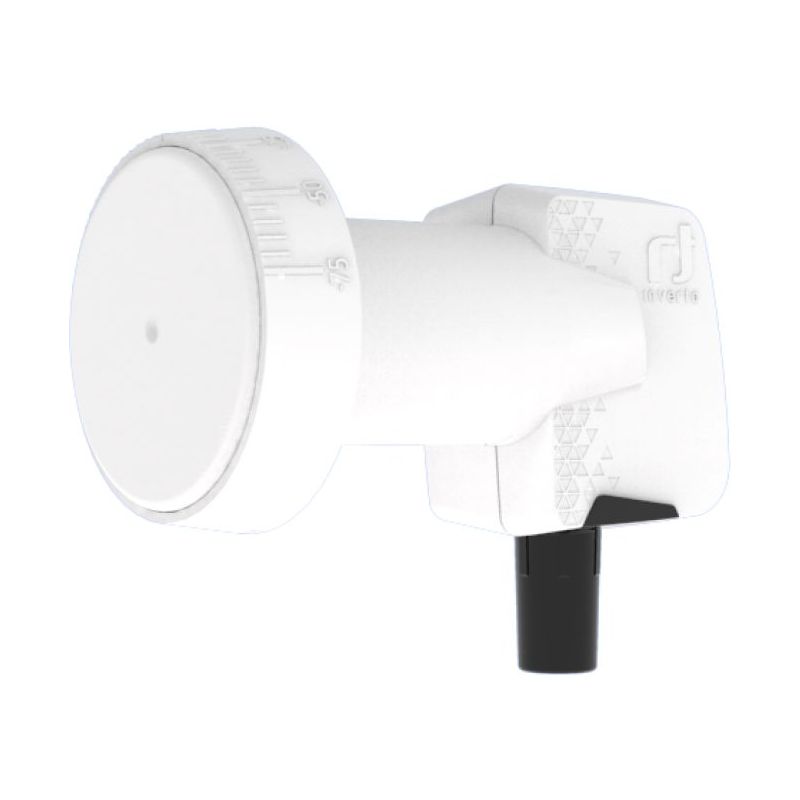

Inverto HOME Pro Single Universal 40mm PLL LNB 4K 0.3dB 1 output

Single LNB, 40mm. Noise figure 0.3dB. It enables the reception of satellite TV from a single satellite and its distribution to a single tuner Set-top box. The LNB supports HD and UHD transmissions, delivers excellent RF performances, very low power consumption and importantly engineered to mitigate interferences from 4G/LTE transmissions.

€7.43
Tax included
Reference inverto-5441
Brand Inverto
Quantity
Available Now

Free shipping
LNB Universal Single HOME Pro 4K 0.3dB 1 output

Inverto HOME Pro Single Universal 40mm PLL LNB 4K 0.3dB 1 output

€7.43
Specifically designed to address the demand of the global DTH market for a competitive and 4G/LTE protected solution, this LNB provides optimized reception capabilities using the latest chipset technology and waveguide design for satellite signal reception. It enables the reception of satellite TV from a single satellite and its distribution to a single tuner Set-top box. The LNB supports HD and UHD transmissions, delivers excellent RF performances, very low power consumption and importantly engineered to mitigate interferences from 4G/LTE transmissions. Manufactured to the highest industry quality standards and engineered to meet strict specifications, this LNB is an ideal solution for DTH operators and satellite broadcast reception across the world.

Features

  • Single LNB
  • Low Phase Noise, DVB-S2 (HD and UHD) compliant
  • Low Noise Figure
  • Low power consumption
  • High Cross Polarization Isolation
  • High Frequency stability

Specifications

Input frequency range 10.7 GHz ~ 12.75 GHz
Output frequency range 950 MHz ~ 2150 MHz
Low band LO frequency 9.75 GHz
High band LO frequency 10.6 GHz
Noise figure 0.3 dB typ. (0.7 dB max.)
LO frequency accuracy @ 25° C ±500 kHz max.
LO temperature drift ±1.0 MHz max.
LO phase noise @ 10 kHz -80 dBc/Hz max.
Conversion gain 55 dB min.
Gain ripple (over 26 MHz bandwidth) ±0.75 dB
Gain variation (over full band) ±4 dB
Image rejection 40 dB min.
3th order intermodulation - ICP3 10 dBm min.
1 dB compression point (@ output) 0 dBm min.
Cross polarization isolation 22 dB min.
Control signal Ca (V) 11.0 V ~ 14.0 V
Control signal Cb (H) 16.0 V ~ 20.0 V
Control signal Cc (band switching) 22 kHz ±4 kHz , 0.4 V ~ 0.8V pp
Output VSWR 2.5 : 1
In band spurious level -60 dBm max.
Current consumption 95 mA
Operating temperature -30 °C ~ +60 °C
Output impedance 75 Ω
Output connector type F-type (female)
Dish F/D ratio 0.6
Weight 136 g
