Triax ACT 4-24 4 ways tap 24dB
search
  • Triax ACT 4-24 4 ways tap 24dB

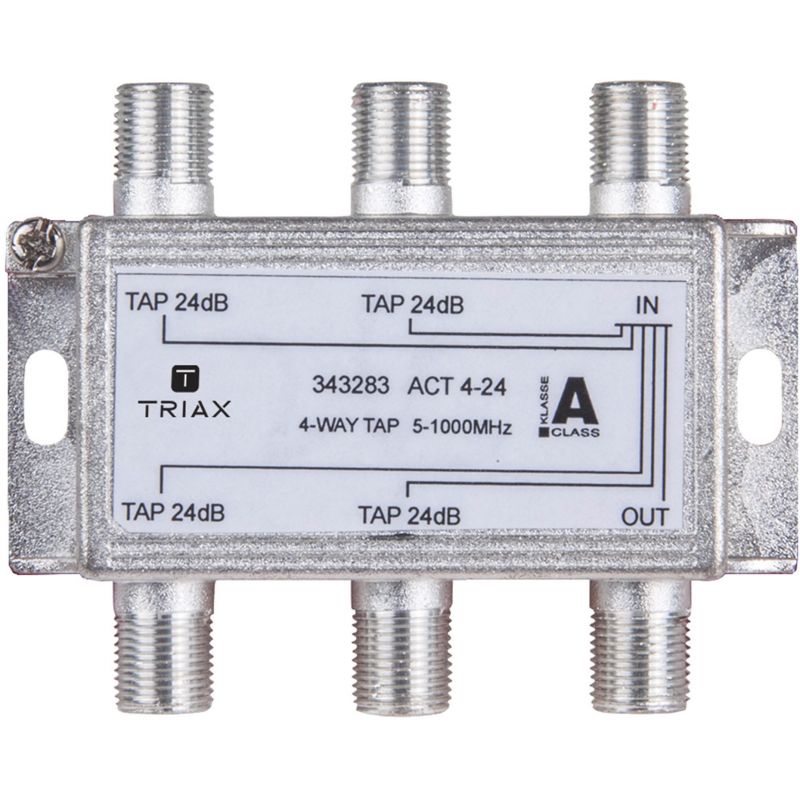

Triax ACT 4-24 4 ways tap 24dB

TRIAX tap all round performance for use in CATV, SMATV & MATV. Frequency range 5-1000 MHz. High shielding. Return loss Grade 2. High quality die cast housing Sn coated. All ports AC/DC blocked at inner conductor. Acc. to EN 50083-2 & EN 60728-4

€10.14
Tax included
Reference triax-343283
Brand Triax
Quantity
Available Now

Free shipping
Triax ACT 4-24 4 ways tap 24dB

Triax ACT 4-24 4 ways tap 24dB

€10.14

ACT 4-24 - 4 ways tap 24dB

TRIAX tap all round performance for use in CATV, SMATV & MATV

Features

  • Frequency range 5-1000 MHz
  • High shielding
  • Return loss Grade 2
  • High quality die cast housing Sn coated
  • All ports AC/DC blocked at inner conductor
  • Acc. to EN 50083-2 & EN 60728-4

Specifications

ORDER INFORMATION
EAN Number 5702663432833
SHIELDING
Shielding effeciency VHF/UHF > 110 dB
CHARACTERISTICS
Type COAX tap
FREQUENCY
Frequency range 5...1000 MHz
LOSS
Tap loss (in-tap) 40-470 MHz 24.0 dB
Tap loss (in-tap) 470-860 MHz 24.5 dB
Tap loss (in-tap) 5-40 MHz 24.0 dB
Tap loss (in-tap) 860-1000 MHz 24.5 dB
Insertion loss (in-out) 40-470 MHz 0.8 dB
Insertion loss (in-out) 470-860 MHz 1.0 dB
Insertion loss (in-out) 5-40 Mhz 1.0 dB
Insertion loss (in-out) 860-1000 MHz 1.2 dB
ISOLATION
Isolation (out-tap) 40-470 MHz 33 dB
Isolation (out-tap) 470-860 MHz 33 dB
Isolation (out-tap) 5-40 MHz 45 dB
Isolation (out-tap) 860-1000 MHz 30 dB
Isolation (tap-tap) 40-470 MHz 28 dB
Isolation (tap-tap) 470-750 MHz 26 dB
Isolation (tap-tap) 5-40 MHz 30 dB
Isolation (tap-tap) 750-862 MHz 26 dB
Isolation (tap-tap) 860-1000 MHz 25 dB
RETURN LOSS
Return loss (in-out) 40-470 MHz 20 dB
Return loss (in-out) 470-860 MHz 18 dB
Return loss (in-out) 5-40 MHz 22 dB
Return loss (in-out) 860-1000 MHz 17 dB
Return loss (tap) 40-470 MHz 20 dB
Return loss (tap) 470-860 MHz 18 dB
Return loss (tap) 5-40 MHz 22 dB
Return loss (tap) 860-1000 MHz 17 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
DC Passthrough NO - DC blocked at inner conductor
Screening Efficiency EN50083-2 (Class A)
Certification IEC 60 728-2, IEC 60 728-4, IEC 60 728-11
Application MATV, SMATV 1Ghz
Environment Indoor
CONNECTORS
Connector Type F-female
Number of outputs 1
Number of taps 4
Number of inputs 1
MECHANICAL
Total Weight 0.087 kg
Net Weight 0.080 kg
Packing QTY 1
Tara Weight 0.007 kg
Bracket (optional) 1x ACB-L / Art No 343234
Main material Zinc diecast/CuSn plated
