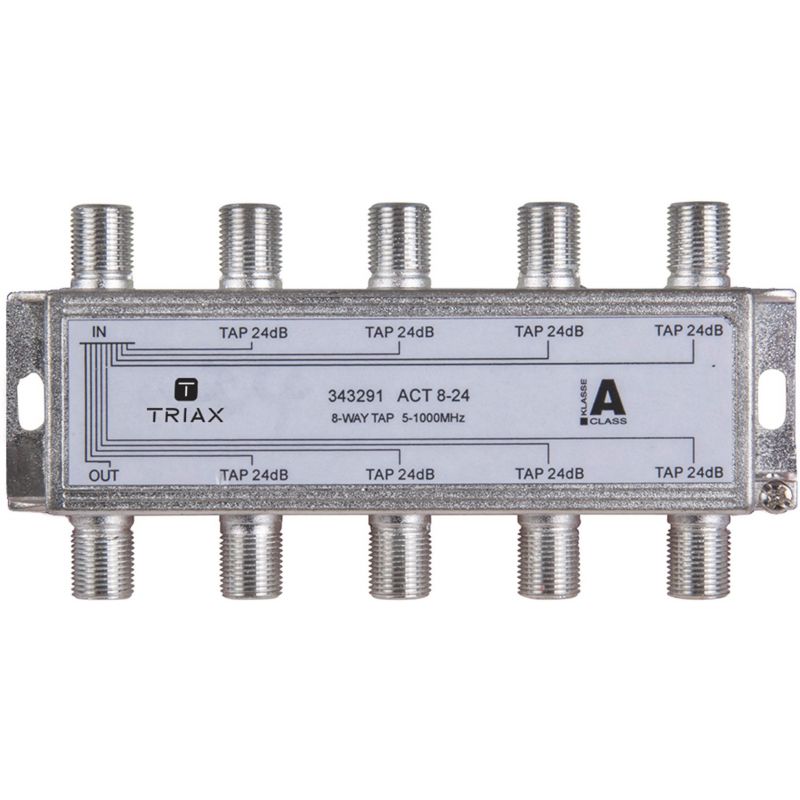

Triax ACT 8-24 8 ways tap 24dB
search
  • Triax ACT 8-24 8 ways tap 24dB

Triax ACT 8-24 8 ways tap 24dB

TRIAX tap all round performance for use in CATV, SMATV & MATV. Frequency range 5-1000 MHz. High shielding. Return loss Grade 2. High quality die cast housing Sn coated. All ports AC/DC blocked at inner conductor. Acc. to EN 50083-2 & EN 60728-4

€19.25
Tax included
Reference triax-343291
Brand Triax
Quantity
Available in 4/5 days

Free shipping
Triax ACT 8-24 8 ways tap 24dB

Triax ACT 8-24 8 ways tap 24dB

€19.25

ACT 8-24 - 8 ways tap 24dB

TRIAX tap all round performance for use in CATV, SMATV & MATV

Features

  • Frequency range 5-1000 MHz
  • High shielding
  • Return loss Grade 2
  • High quality die cast housing Sn coated
  • All ports AC/DC blocked at inner conductor
  • Acc. to EN 50083-2 & EN 60728-4

Specifications

ORDER INFORMATION
EAN Number 5702663432918
SHIELDING
Shielding effeciency VHF/UHF > 110 dB
CHARACTERISTICS
Type COAX tap
FREQUENCY
Frequency range 5...1000 MHz
LOSS
Tap loss (in-tap) 5-40 MHz 24.0 dB
Tap loss (in-tap) 40-470 MHz 24.0 dB
Tap loss (in-tap) 470-860 MHz 24.5 dB
Tap loss (in-tap) 860-1000 MHz 24.5 dB
Insertion loss (in-out) 5-40 Mhz 1.0 dB
Insertion loss (in-out) 40-470 MHz 0.8 dB
Insertion loss (in-out) 470-860 MHz 1.3 dB
Insertion loss (in-out) 860-1000 MHz 1.5 dB
ISOLATION
Isolation (tap-tap) 5-40 MHz 26 dB
Isolation (out-tap) 5-40 MHz 35 dB
Isolation (tap-tap) 40-470 MHz 26 dB
Isolation (out-tap) 40-470 MHz 36 dB
Isolation (tap-tap) 470-750 MHz 26 dB
Isolation (out-tap) 470-860 MHz 30 dB
Isolation (tap-tap) 750-862 MHz 24 dB
Isolation (tap-tap) 860-1000 MHz 24 dB
Isolation (out-tap) 860-1000 MHz 29 dB
RETURN LOSS
Return loss (in-out) 5-40 MHz 20 dB
Return loss (tap) 5-40 MHz 20 dB
Return loss (in-out) 40-470 MHz 21 dB
Return loss (tap) 40-470 MHz 21 dB
Return loss (in-out) 470-860 MHz 18 dB
Return loss (tap) 470-860 MHz 18 dB
Return loss (in-out) 860-1000 MHz 17 dB
Return loss (tap) 860-1000 MHz 17 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
Application MATV, SMATV 1Ghz
Screening Efficiency EN50083-2 (Class A)
DC Passthrough NO - DC blocked at inner conductor
Certification IEC 60 728-2, IEC 60 728-4, IEC 60 728-11
Environment Indoor
CONNECTORS
Number of inputs 1
Number of outputs 1
Number of taps 8
Connector Type F-female
MECHANICAL
Bracket (optional) 1x ACB-XL / Art No 343235
Main material Zinc diecast/CuSn plated
Packing QTY 1
Net Weight 0.150 kg
Tara Weight 0.010 kg
Total Weight 0.160 kg
