SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 7080 AND id_lang = 1 TDX Output Module 2CI Triax
TDX Output Module 2CI Triax
search
  • TDX Output Module 2CI Triax

TDX Output Module 2CI Triax

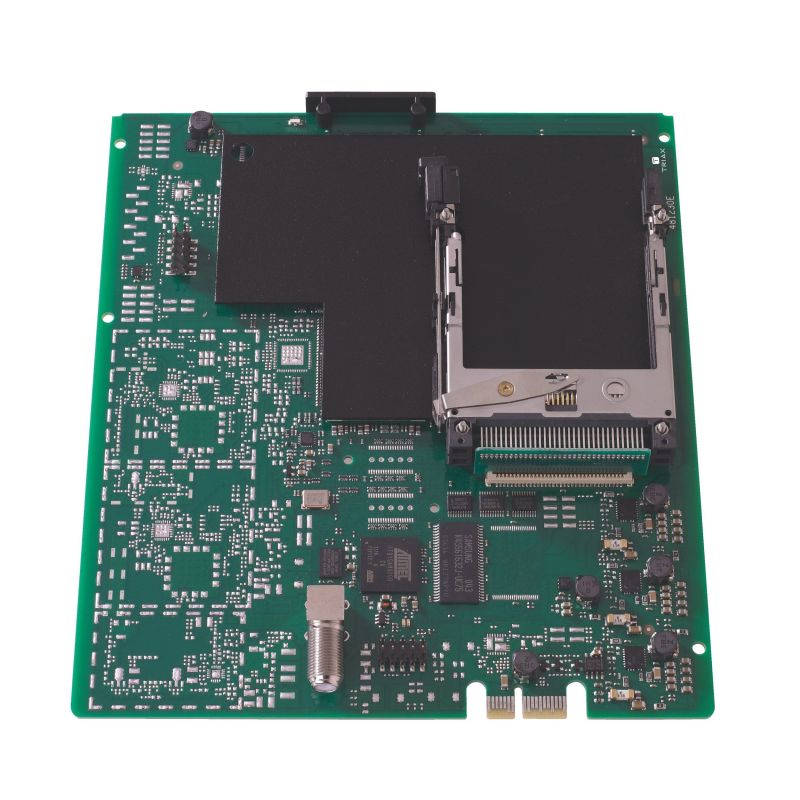

The 2CI output module has 2 PCMCIA interfaces for two CAM card readers (Conditional Access Module). It allows to take several services, depending on the CAM module, the TDX Pool, decode them and send them in open (decoded) to the TDX Pool.

€1,102.15
Tax included
Reference triax-492070
Brand Triax
Quantity
Available in 4/5 days

Free shipping
TDX Output Module 2CI Triax

TDX Output Module 2CI Triax

€1,102.15

The 2CI output module has 2 PCMCIA interfaces for two CAM card readers (Conditional Access Module). It allows to take several services, depending on the CAM module, the TDX Pool, decode them and send them in open (decoded) to the TDX Pool.

Specifications

ORDER INFORMATION
EAN Number 5702664920704
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
CI slots 2
DC Operating voltage 12 ± 1 VDC
DC Current consumption 600 mA
Temperature - operating -10 ... +50 °C
Temperature - storage -20 ... +70 °C
Humidity - operating 20 ... 80 %
Humidity - storage 10 ... 90 %
CONNECTORS
Connector Type F-female
MECHANICAL
Dimensions product (H x D x W) 24 x 162 x 185 mm
Packing QTY 1
Packaging Height 0.060 m
Packaging Width 0.180 m
Packaging Depth 0.270 m
Packaging Volume 0.003 m3
Net Weight 0.355 kg
Tara Weight 0.087 kg
Total Weight 0.442 kg
