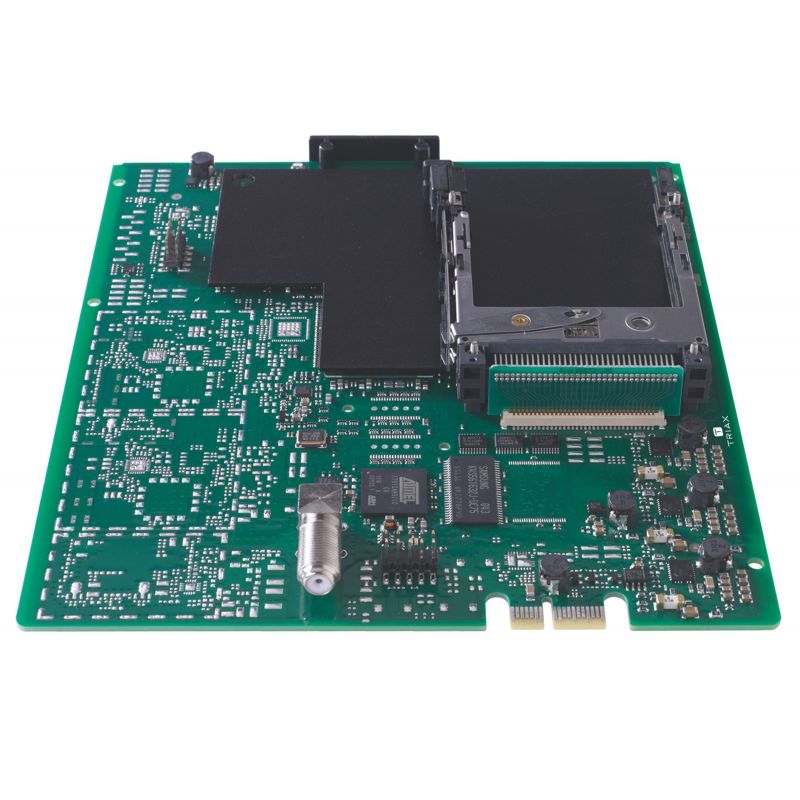

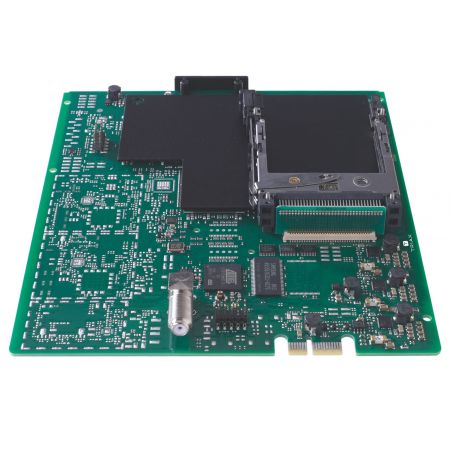

SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 7081 AND id_lang = 1 TDX Backend IP 2CI Triax
TDX Backend IP 2CI Triax
search
  • TDX Backend IP 2CI Triax

TDX Backend IP 2CI Triax

The IP output module is an output module for transmission of digital video, audio and miscellaneous data, encapsulated within one or more MPEG/DVB single program transport streams. IP multicast streaming (UDP streaming). RTP option. IGMP version 2. SPTS including SDT, PAT, PMT, CAT. Packet ratio of 3-7 TS packet per IP packet ratio 3-7:1. Max. BW 720 Mbits/s output per IP output module

€957.62
Tax included
Reference triax-492072
Brand Triax
Quantity
Available in 4/5 days

Free shipping
TDX Backend IP 2CI Triax

TDX Backend IP 2CI Triax

€957.62

The IP output module is an output module for transmission of digital video, audio and miscellaneous data, encapsulated within one or more MPEG/DVB single program transport streams.

The TDX headend system provides the following functionality when the IP out module has been installed:

  • IP multicast streaming (UDP streaming)
  • RTP option
  • IGMP version 2
  • SPTS including SDT, PAT, PMT, CAT
  • Packet ratio of 3-7 TS packet per IP packet ratio 3-7:1
  • Max. BW 720 Mbits/s output per IP output module
  • 78 services per IP output module/AUX socket
  • Possible to change service ID (SID)
  • Possible to select from IP via Link
  • 2 x CI slots complying EN 50 221

Package Content

  • IP output module
  • Auxiliary board
  • SFP transceiver RJ45 - copper

Specifications

ORDER INFORMATION
EAN Number 5702664920728
CHARACTERISTICS
Input bandwidth max. 720 Mbit/s
Input Data Format Proprietary TDX MPEG/DVB SPTSs - UDP/IP via GbE
Output Type TDX BE proprietary control and data
Output total bandwidth max. 720 Mbit/s
Output peak bandwidth max. 940 Mbit/s
Output format MPEG/DVB compliant SPTS UDP/IP multicast via GbE
EIT No EIT - must be obtained via native IP OUT
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
Output protocol 3-7:1 TS / IP packet ratio (configurable via GUI), RTP (optional via GUI)
CI slots 2
DC Operating voltage 12 ± 1 VDC
DC Current consumption < 600 mA
Temperature - operating -10 ... +50 °C
Temperature - storage -20 ... +70 °C
Humidity - operating 20 ... 80 %
Humidity - storage 10 ... 90 %
CONNECTORS
Connector Type F-female
MECHANICAL
Dimensions product (H x D x W) 24 x 162 x 185 mm
Packing QTY 1
Packaging Height 0.060 m
Packaging Width 0.190 m
Packaging Depth 0.270 m
Packaging Volume 0.003 m3
Net Weight 0.355 kg
Total Weight 0.355 kg
