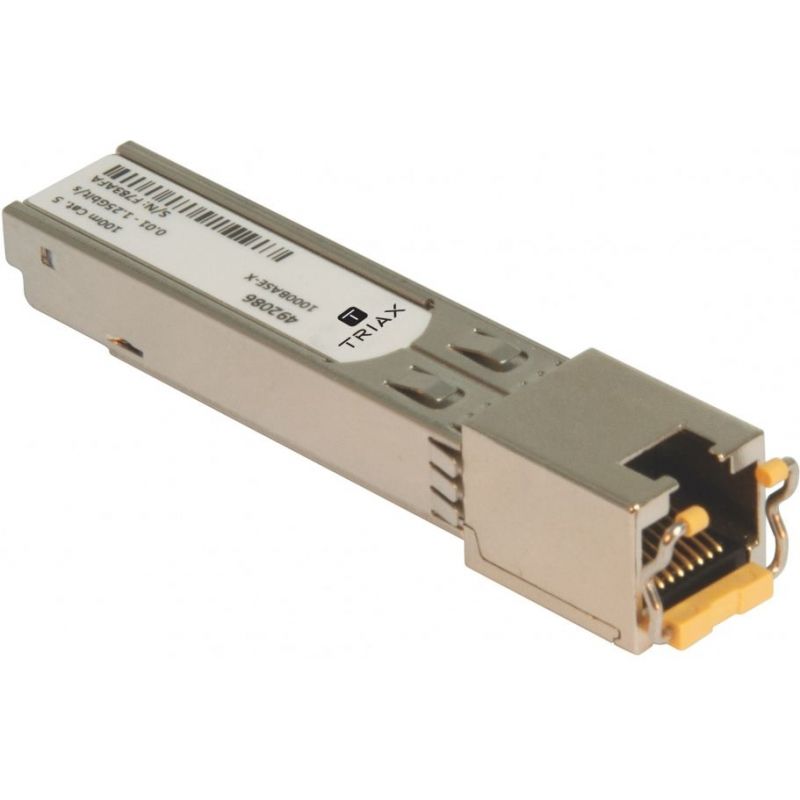

TDX SFP Module Copper RJ45 - EOLT - C12-02 plug
IP output SFP (Small Form - Factor Pluggable). It is possible to create your own bouquets of services/TV programs, available in the TDX Pool, and put them together in an IP data stream. You can use Cat 5 cable or fibre to transmit your IP stream.
€141.93
Tax included
Reference
triax-492086
Brand
Triax
TDX SFP Module Copper RJ45 - EOLT - C12-02 plug
€141.93
IP output SFP (Small Form - Factor Pluggable). It is possible to create your own bouquets of services/TV programs, available in the TDX Pool, and put them together in an IP data stream. You can use Cat 5 cable or fibre to transmit your IP stream.
Features
- Support 1000BASE-T operation in host systems with SGMII interface
- Up to 1.25Gbps bi-direction data links
- Hot-pluggable SFP footprint
- Fully metallic enclosure for low EMI
- Low power dissipation (1.05 W typical)
- Compact RJ-45 connector assembly
- 100m transmission over unshielded
- twisted pair (UTP) Category 5 Cable
- Access to physical layer IC via
- 2-wire serial bus
Applications
- LAN 1000Base-T
- 1.25 Gigabit Ethernet over Cat 5 cable
- Switch to Switch interface
- Router/Server interface
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702664920865 |
| CHARACTERISTICS | |
| Transport stream payload | max. 720 |
| OPERATIONAL | |
| Protocols | UDP with RTP optional |
| Data rate | 1000 |
| Reaching area | 100 m |
| MECHANICAL | |
| Packing QTY | 1 |
| Packaging Height | 0.013 m |
| Packaging Width | 0.015 m |
| Packaging Depth | 0.070 m |
| Net Weight | 0.022 kg |
| Tara Weight | 0.008 kg |
| Total Weight | 0.030 kg |
| Remarks | Copper SFP (RJ45) Gigabit Ethernet over Cat 5 cable |
