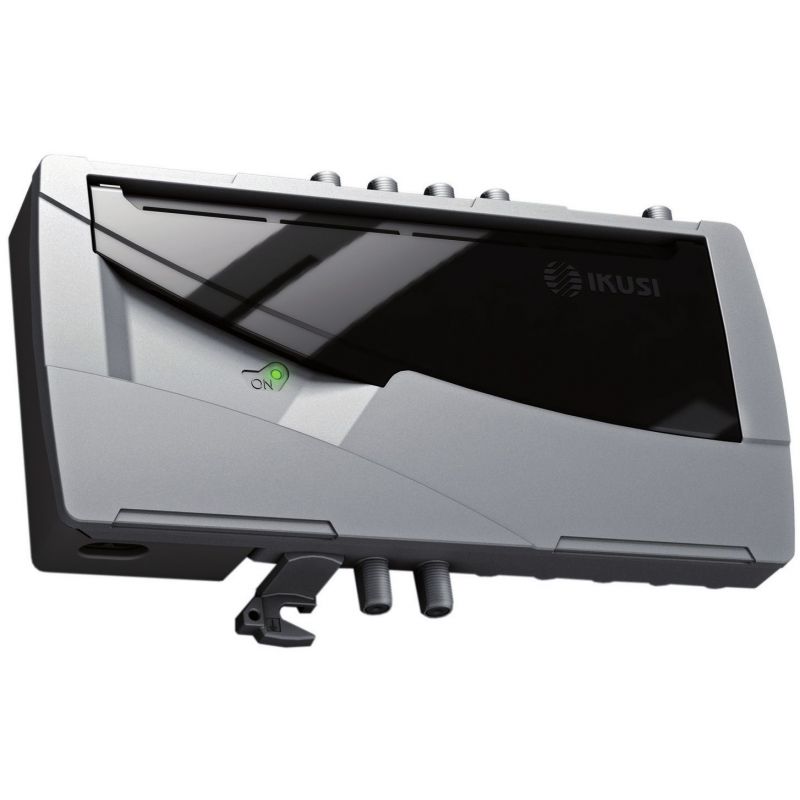

Ikusi NBS895-C60 Amplification centre 4 TV+1 SAT

Amplification centre 5 inputs, 2xUHF, BI/FM, BIII/DAB, SAT. Adapted to the first and second digital dividend. High-power broadband amplifiers, for terrestrial and satellite signals in small installations. NBS800 series high-power broadband amplifiers, NBS600 series mid-power broadband amplifiers. Interstage input attenuators. Powered by switching power supply, in removable box.

€203.89
Tax included
Reference ikusi-3575
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Ikusi NBS895-C60 Amplification centre 4 TV+1 SAT

Ikusi NBS895-C60 Amplification centre 4 TV+1 SAT

€203.89

Within the range of broadband amplifiers, we present the 5 models of programmable power stations for terrestrial and satellite signals, each model has a frequency cut adapted to a future evolution of the Digital Dividend.

Features

  • Adapted to the first and second digital dividend.
  • High-power broadband amplifiers, for terrestrial and satellite signals in small installations. NBS800 series high-power broadband amplifiers, NBS600 series mid-power broadband amplifiers.
  • Interstage input attenuators.
  • Powered by switching power supply, in removable box.
  • Power passing to input.
  • Zamak housing with protective cover for adjustment potentiometers.
  • F Connectors. Wall fixing and indoor mounting. Grounding terminal.
  • Compatible with UNICABLE TM.

Specifications

Model (Ref.) NBS895-C60
EAN Code 8435136435754
Inputs

5

BI/FM - BIII/DAB -2xUHF - FI SAT
Frequency range MHz

BI/FM: 45-112

BIII/DAB: 174-240

2xUHF: 470-790

FI-SAT: 950-2400
Gain dB

BI/FM: 42

BIII/DAB: 42

2xUHF: 45

FI-SAT: 40
Gain adjustment dB 0 - 18
Slope control range dB

 FI-SAT : 0 / 6

puente
Response flatness dB

BI/FM: ±2

BIII/DAB: ±2

2xUHF: ±1.5

FI-SAT: ±2
Outputs   1
Outputs test dB -30
Output level dBμV

BI/FM: 118

BIII/DAB: 118

2xUHF: 118

** FI-SAT: 120
Noise figure dB

BI/FM: 6

BIII/DAB: 6

2xUHF: 8

FI-SAT: 9
Input/output return loss dB

BI/FM-BIII/DAB-2xUHF: 10

FI-SAT: 6
Voltage/current preamplifier mast

UHF2: 0-12-24 V · 100 mA

FI SAT: 0-13-18V · 100 mA

LNB: 0-22 kHz
Mains supply voltage (+10% -15%) VAC 230-240
Consumption W 16

* (DIN-45004B IMD -60 dB)

** (EN 50083-3 IMD -35 dB)

• NBS895 and NBS695 Compatible with UNICABLE TM
