Triax TMS 55 IF-amplifier
search
  • Triax TMS 55 IF-amplifier

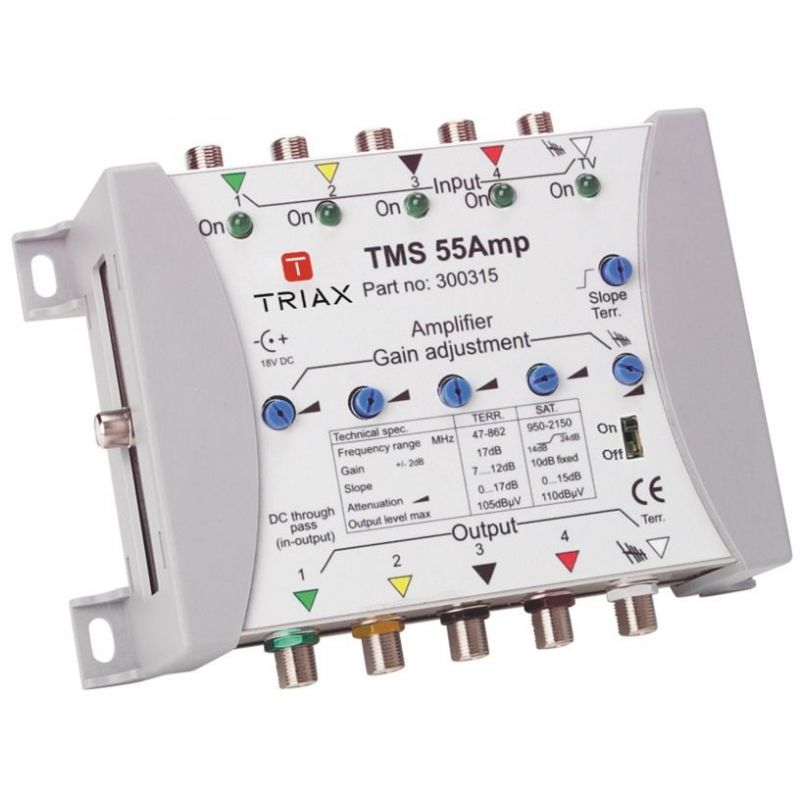

Triax TMS 55 IF-amplifier

With 5 inputs and outputs. For one SATellite position. Boost your signal to get more mileage. Using a TMS line amplifier you can compensate for the cable loss in your distribution system.

€144.74
Tax included
Reference triax-300315
Brand Triax
Quantity
Available in 4/5 days

Free shipping
Triax TMS 55 IF-amplifier

Triax TMS 55 IF-amplifier

€144.74

With 5 inputs and outputs. For one SATellite position. Boost your signal to get more mileage.Using a TMS line amplifier you can compensate for the cable loss in your distribution system.

Specifications

ORDER INFORMATION
EAN Number 5702663003156
CHARACTERISTICS
Type Amplifier - IF
Max. output level SAT @ -35 dB IMD3 110 dBµV
Output level TER - 47-862 MHz 105 dBµV
FREQUENCY
Frequency range SAT 950-2150 MHz
Frequency range 47...862 / 950 - 2150 MHz
GAIN
Gain - SAT (with 5 dB slope) 20...25 dB
Gain - TER 17 (± 2) dB
Noise figure SAT < 12.0 dB
LOSS
Adjustable attenuator SAT 0-20 dB
Adjustable attenuator TER 0-20 dB
Equalization SAT 5
Equalization TER 2...15
RETURN LOSS
Return loss SAT outputs 10.0 dB
Return loss SAT 10.0 dB
Return loss TER 10.0 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
Temperature range 0...+50 °C
DC Operating voltage 18 VDC
DC Current consumption 250 mA
Temperature - operating 0...50 °C
CONNECTORS
Number of trunk outputs 4 SAT, 1 TER
Number of inputs 4 SAT, 1 TER
Number of outputs 4x SAT, 1x TER
Colour coding of IF and TER inputs Yes
Connector Type F-female
Connector DC RCA (Phono, Cinch) female
MECHANICAL
Product Height 124 mm
Product Depth 55 mm
Product Width 165 mm
Packaging Height 0.400 m
Packaging Width 1.000 m
Packaging Depth 1.450 m
Packaging Volume 0.580 m3
Net Weight 0.520 kg
Tara Weight 0.050 kg
Total Weight 0.570 kg
