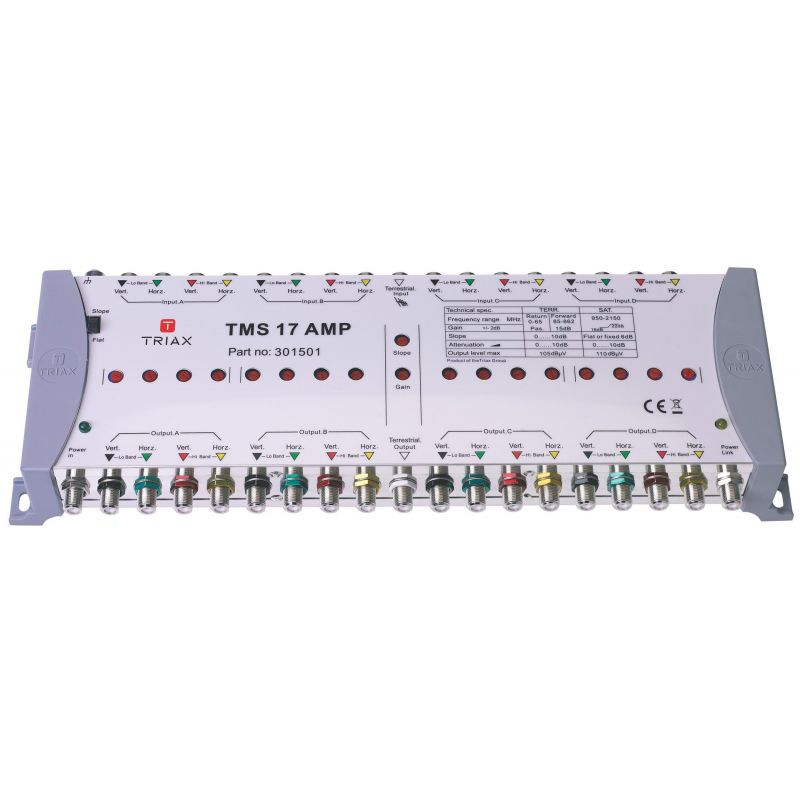

Triax TMS 17 Amplifier IF 17 inputs and 17 outputs
TRIAX TMS 17 / IF-amplifiers with 17 inputs and outputs. Boost your signal to get more mileage. Using a TMS line amplifier you. can compensate for the cable loss in your distribution system. Line amplifiers for cascadable systems.
€405.42
Tax included
Reference
triax-301501
Brand
Triax
Triax TMS 17 Amplifier IF 17 inputs and 17 outputs
€405.42
TRIAX TMS 17 / IF-amplifiers with 17 inputs and outputs.
Features
- Boost your signal to get more mileage.
- Using a TMS line amplifier you can compensate for the cable loss in your distribution system.
- Line amplifiers for cascadable systems.
- 18-24 dB amplification on each output (switchable 6dB/flat slope).
- Terrestrial line amplifier with a 17 dB amplification.
- Adjustable (0-10 dB) attenuation on all lines.
- Switchable slope on satellite lines.
- Adjustable slope (0-15 dB) on terrestrial line.
- Supply voltage via power link, trunk or DC plug.
- Colour ID on all connectors for easy installation.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663015012 |
| CHARACTERISTICS | |
| Return Path | 5...65 MHz passive |
| Type | Amplifier - IF |
| Max. output level | 110 dBµV |
| Max. output level SAT @ -35 dB IMD3 | 110 dBµV |
| Output level TER - 47-862 MHz | 105 dBµV |
| FREQUENCY | |
| Frequency range SAT | 950-2150 MHz |
| Frequency range | 5...862 / 950 - 2150 MHz |
| GAIN | |
| Gain - SAT (with 5 dB slope) | 18.....24 dB |
| Gain - TER | 17 dB |
| Noise figure SAT | < 8.0 dB |
| Noise figure TER | < 7.0 dB |
| LOSS | |
| Attenuation - adjustable | 0 - 10 dB |
| Adjustable attenuator SAT | 0-10 dB |
| Adjustable attenuator TER | 0-10 dB |
| Equalization | 0/6 dB commutable |
| Equalization SAT | 0 or 6.0 (switchable) |
| Equalization TER | 0-15.0 (adjustable) |
| ISOLATION | |
| Isolation TER to SAT | 22.0 dB |
| Isolation SAT to SAT | 30.0 dB |
| RETURN LOSS | |
| Return loss SAT | 10.0 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Temperature range | 0...+55 °C |
| DC Operating voltage | 18 VDC |
| Temperature - operating | 0...55 °C |
| CONNECTORS | |
| Number of trunk inputs | 16 SAT, 1 TER |
| Number of trunk outputs | 16 SAT, 1 TER + power link |
| Number of inputs | 16x SAT, 1x TER, power link |
| Number of outputs | 16x SAT, 1x TER, power link |
| Colour coding of IF and TER inputs | Yes |
| Connector Type | F-female |
| MECHANICAL | |
| Packaging Height | 0.700 m |
| Packaging Width | 1.200 m |
| Packaging Depth | 3.500 m |
| Packaging Volume | 2.940 m3 |
| Net Weight | 1.002 kg |
| Tara Weight | 0.270 kg |
| Total Weight | 1.272 kg |
