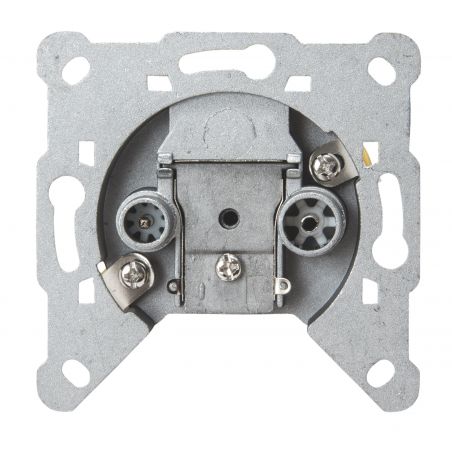

Triax TOU - 1 outlet R/TV terminated 5-1000MHz
The TRIAX TOU series of outlets is made of diecast zinc, the coax IEC connectors fulfil the DIN 45325 and IEC 169 standards. The outlets can be built into a Ø60 mm round wall box or surface mounted by means of a TOU frame.
€6.91
Tax included
Reference
triax-303621
Brand
Triax

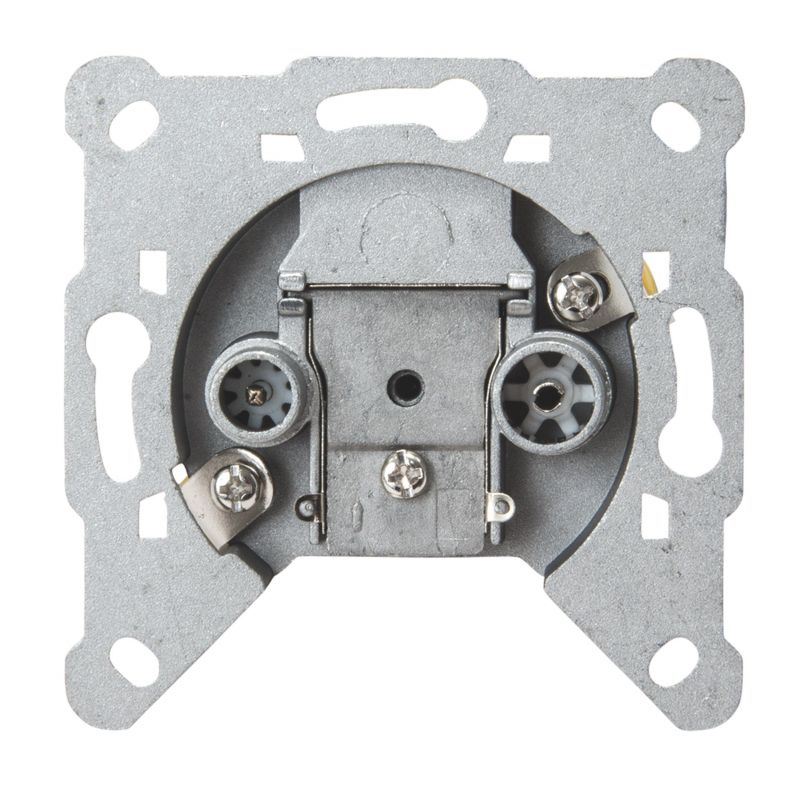

Triax TOU - 1 outlet R/TV terminated 5-1000MHz
€6.91
TOU - 1 terminated
The TRIAX TOU series of outlets is made of diecast zinc, the coax IEC connectors fulfil the DIN 45325 and IEC 169 standards. The outlets can be built into a Ø60 mm round wall box or surface mounted by means of a TOU frame.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663036215 |
| SHIELDING | |
| Shielding factor UHF | > 75.0 dB |
| Shielding factor VHF | > 85.0 dB |
| CHARACTERISTICS | |
| Type | TOU |
| Outlet Type | Terminated |
| FREQUENCY | |
| Frequency Range FM | 87.5...108 MHz |
| Frequency Range TV | 5...74/120...862 MHz |
| LOSS | |
| Through Loss IN-FM | 2.0 dB |
| Through Loss IN-TV | 1.5 dB |
| ISOLATION | |
| Isolation TV-FM | >10.0 dB |
| RETURN LOSS | |
| Return loss SAT | Cat. D *) EN 50083-4 dB |
| Return Loss FM | Cat. D *) EN 50083-4 dB |
| Return Loss TV | Cat. C *) EN 50083-4 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| CONNECTORS | |
| Connector FM | IEC-female |
| Connector TV | IEC-male |
| MECHANICAL | |
| Diameter | 60 mm |
| Packaging Height | 0.040 m |
| Packaging Width | 0.070 m |
| Packaging Depth | 0.070 m |
| Net Weight | 0.098 kg |
| Tara Weight | 0.017 kg |
| Total Weight | 0.115 kg |
| Remarks | *) According to CENELEC: B: 5-40 MHz > 18 dB, 40-862 MHz min. 18 dB - 1.5/oct. C: 5-40 MHz > 14 dB, 40-862 MHz min. 14 dB - 1.5/oct. D: 5-862 MHz > 10 dB. Standards CE: EN 50083-4. NB! excl. cover and |
