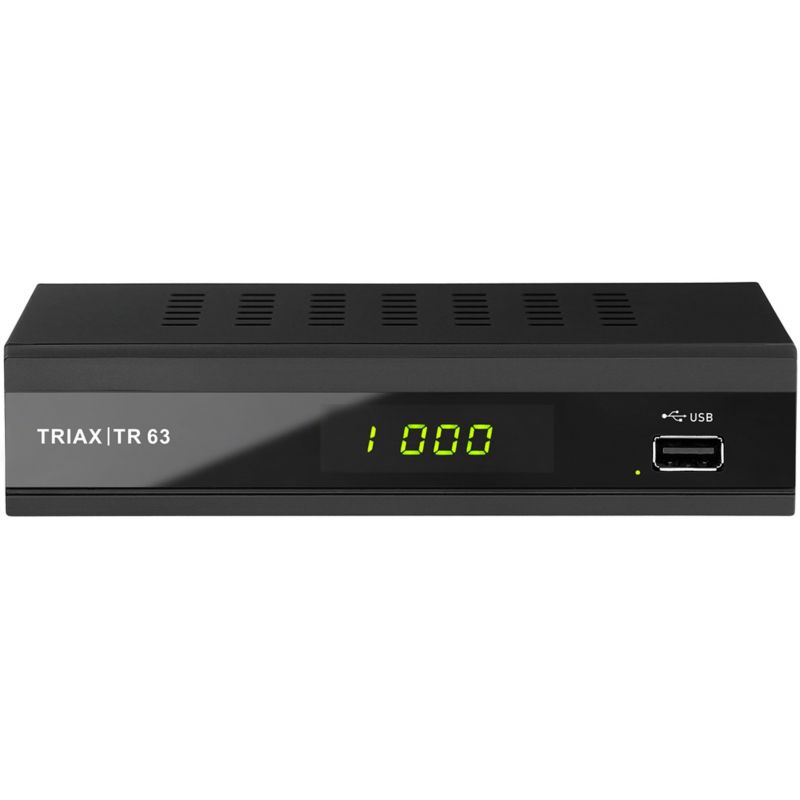

Triax TR 63 FTA Teceiver for DVB-T/T2
The TR 63 is a DVB-T2 HEVC/H.265 Set Top Box with a 4 digits display to be used for the German DVB-T2 transmission starting from 30th of May 2016 and for the switchover scheduled between 2017 to 2019. It can also be used in any country where DVB-T1, DVB-T2, MPEG4 or HEVC FTA signals are broadcasted.
This product is replaced by the Triax TR 65 FTA Receiver for DVB-T2 HEVC
€87.74
Tax included
Reference
triax-305263
Brand
Triax
Triax TR 63 FTA Teceiver for DVB-T/T2
€87.74
The TR 63 is a DVB-T2 HEVC/H.265 Set Top Box with a 4 digits display to be used for the German DVB-T2 transmission starting from 30th of May 2016 and for the switchover scheduled between 2017 to 2019.
It can also be used in any country where DVB-T1, DVB-T2, MPEG4 or HEVC FTA signals are broadcasted.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663052635 |
| CHARACTERISTICS | |
| Type | STB (set top box) |
| TER - demodulation | DVB-T/T2 (MPEG2/MPEG4/HEVC - H265) |
| TER - signal level | -70...-15 |
| Aspect ratio | 4:3 / 16:9 / Auto |
| Video decoding | MPEG2 MP@HL, AVC/H.264 HP@L4.1, MPEG4 ASP, HEVC H 265 |
| Video output | 576i, 576p, 720p, 1080i, 1080p |
| Digital audio output (S/PDIF) | 1 x Coaxial |
| HDMI Version | 1.3 |
| Video playback format | MPEG 2: (.mpg, .mpa, .mpe, .mp2, .vob, .dat), MJPEG, TS stream: (.ts, .mts< ;AVCHD>, .m2ts), AVI: (.avi, .vid, .xvid, .div), QuickTime: (.mp4, .m4a, .mov), MKV: (.mkv), ASF: (.asf, .wmv, .wma) |
| Audio playback format | WAVE (,way), MP3, ASF (WMA), AAC, Real format (.ra) |
| FREQUENCY | |
| TER - frequency range | 170...230, 470...862 MHz |
| TER - channel bandwidth | 7...8 MHz |
| Sampling frequency | 32, 44.1, 48 kHz |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Active Antenna Supply | 5V/50mA |
| Ethernet Interface | 10/100 Mbps |
| Flash memory | 32 MByte |
| DDR memory | 512 MByte |
| OSD languages | 9 |
| Number of channels | 1000 |
| Functions | Mediaplayer, PVR and Software update |
| API | Web radios, weather forecasts |
| Decryption | FTA |
| PVR ready | Yes (USB) |
| Remote control | Included |
| Remote control - keys | 45 |
| Replacement Remote art. no | 351130, item TCT 043 |
| Remote control - battery | 2 x AAA |
| Software update | via USB |
| Operating temperature range | +15 ~+35 °C |
| AC Supply voltage | 220 - 240 VAC |
| Power Consumption (typ.) | 6 ON / 0.5 STBY W |
| User guide | French |
| CONNECTORS | |
| USB port | USB on the front |
| TER - input connector | IEC female |
| Connector Optical out | S/PDIF Coax |
| Connector HDMI | HDMI female (Type A) |
| Connector TER in | IEC-female |
| TV Scart | 1 x out TV/Video |
| TER - loop out connector | IEC male |
| MECHANICAL | |
| Product Length | 158 mm |
| Display | 4-Digit, |
| Display segments | 4 x 7 segment |
| Display colour | Green |
| Main material | Steel |
| Finish | Black mat |
| Product Height | 36 mm |
| Product Depth | 90 mm |
| Product Width | 168 mm |
| Colour | Black |
| Packing QTY | 1 |
| Packaging Height | 0.038 m |
| Packaging Width | 0.168 m |
| Packaging Depth | 0.118 m |
| Packaging Volume | 0.001 m3 |
| Net Weight | 0.350 kg |
| Total Weight | 0.350 kg |
Data sheet
- Operative System
- Standard
- Tuners
- 1
- Tuner Type
- Single
- Terrestrial Tuner
- Terrestrial / Cable DVB-T2/C H.265
- Resolution
- Full HD
- SCART / CVBS
- Yes
- Hard Disk Drive PVR
- External HDD (USB)
- Remote control
- Standard
