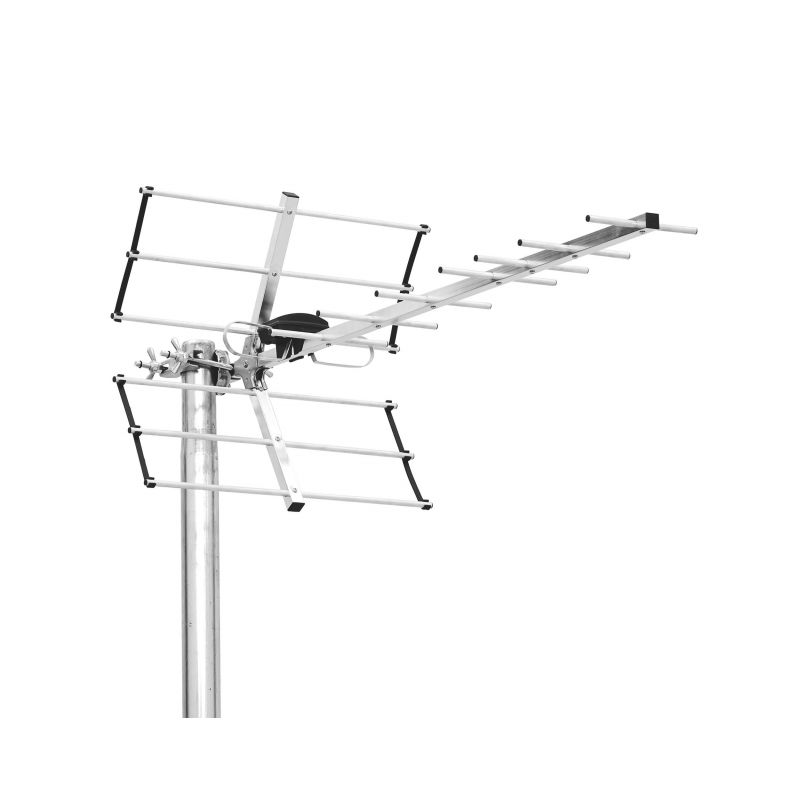

Triax DIGI 014 Antenna Yagui 14 elements with C21-60 13.5dB
14 elements UHF antenna. Unparalleled gain and rejection performance. Designed to receive DTT (Digital Terrestrial TV) signals in 470-790 MHz range (ch. 21-60). Rejects 4G/LTE signals in 791-862 MHz range using TRIAX’s “Antenna Low Pass System”.
€49.01
Tax included
Reference
triax-105420
Brand
Triax
Triax DIGI 014 Antenna Yagui 14 elements with C21-60 13.5dB
€49.01
Features
- 14 elements UHF antenna
- Unparalleled gain and rejection performance
- Designed to receive DTT (Digital Terrestrial TV) signals in 470-790 MHz range (ch. 21-60)
- Rejects 4G/LTE signals in 791-862 MHz range using TRIAX’s “Antenna Low Pass System”
- Sealed dipole house with rear pointing F-connector for optimal TV-signal performance
- Resistant to extreme weather conditions (made from aluminium, magnesium and manganese alloy)
- Adjustable brackets for masts up to 60 mm
- Bracket type: Rear mast bracket
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702661054204 |
| CHARACTERISTICS | |
| Type | Digi 14 |
| FREQUENCY | |
| Band | B IV/V UHF |
| Channels | 21...60 |
| Frequency range UHF | 470...790 MHz |
| LTE protection | 800 |
| GAIN | |
| Gain @ 474 MHz (Ch. 21) | 7,5 dBi |
| Gain @ 538 MHz (Ch. 29) | 9,5 dBi |
| Gain @ 602 MHz (Ch. 37) | 12.0 dBi |
| Gain @ 730 MHz (Ch. 53) | 13.0 dBi |
| Gain @ 786 MHz (Ch. 60) | 13.5 dBi |
| LOSS | |
| Rejection @ 811 MHz (LTE D1) | 5.0 dB |
| Rejection @ 821 MHz (LTE D6) | 11.0 dB |
| Rejection @ 832 MHz (LTE U1) | 11.0 dB |
| Rejection @ 862 MHz (LTE U6) | 8.0 dB |
| ELECTRICAL | |
| Front to back ratio - horisontal | 21 dB |
| Impedance | 75 Ω |
| CONNECTORS | |
| Connector Type | F-female |
| MECHANICAL | |
| Elements | 14 |
| Windload | 54 N |
| Beamwidth horisontal | ± 21 ° |
| Bracketry | Mast |
| Main material | Aluminium |
| Product Length | 1015 mm |
| Product Width | 420 mm |
| Packing QTY | 10 |
| Packaging Height | 0.075 m |
| Packaging Width | 0.230 m |
| Packaging Depth | 1.050 m |
| Packaging Volume | 0.018 m3 |
| Net Weight | 0.810 kg |
| Tara Weight | 0.490 kg |
| Total Weight | 1.300 kg |
