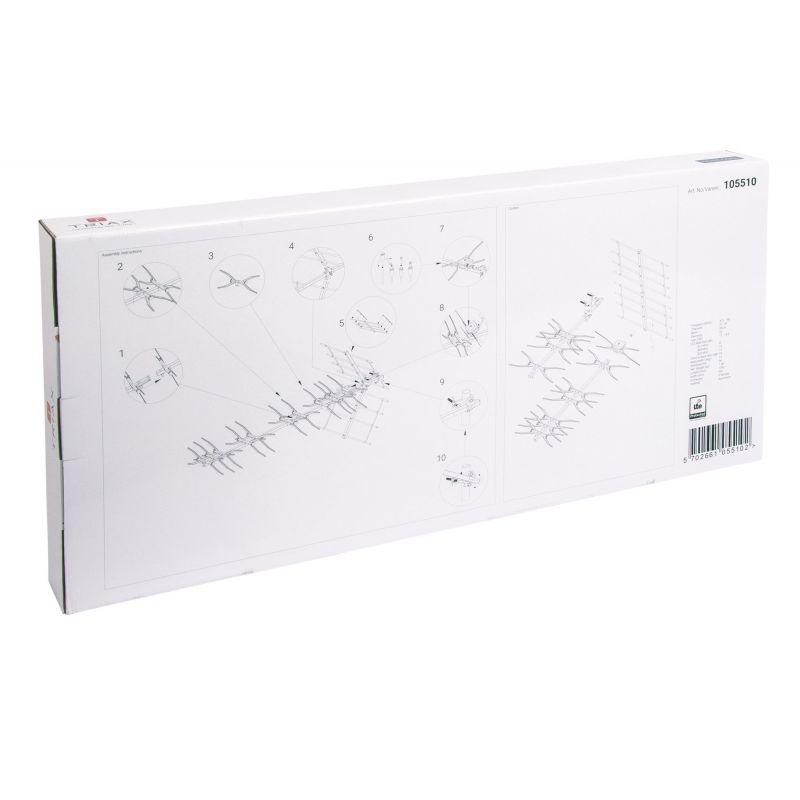

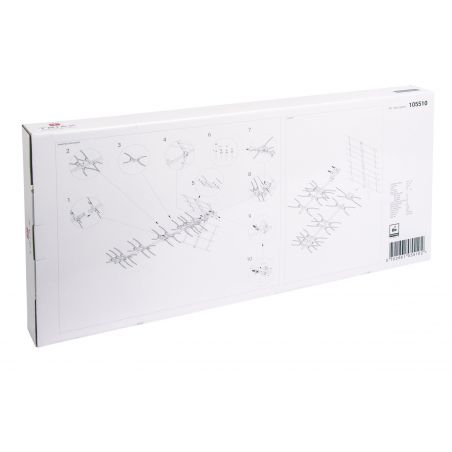

Triax UNIX 52 UHF antenna with LTE filter with 32 elements for C21/C60 G 12.5dB
52 elements UHF antenna. Unparalleled gain and rejection performance. Designed to receive DTT (Digital Terrestrial TV) signals in 470-790 MHz range (ch. 21-60). Rejects 4G/LTE signals in 791-862 MHz range using TRIAX’s “Antenna Low Pass System”. Sealed dipole house with rear pointing F-connector for optimal TV-signal performance.
€75.03
Tax included
Reference
triax-105510
Brand
Triax
Triax UNIX 52 UHF antenna with LTE filter with 32 elements for C21/C60 G 12.5dB
€75.03
52 elements UHF antenna.
Features
- Unparalleled gain and rejection performance.
- Designed to receive DTT (Digital Terrestrial TV) signals in 470-790 MHz range (ch. 21-60).
- Rejects 4G/LTE signals in 791-862 MHz range using TRIAX’s “Antenna Low Pass System”.
- Sealed dipole house with rear pointing F-connector for optimal TV-signal performance.
- Resistant to extreme weather conditions (made from aluminium, magnesium and manganese alloy).
- Adjustable brackets for masts up to 60 mm.
- Bracket type: Rear mast bracket.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702661055102 |
| CHARACTERISTICS | |
| Type | UNIX 52 |
| FREQUENCY | |
| Band | B IV/V UHF |
| Channels | 21...60 |
| Frequency range UHF | 470...790 MHz |
| LTE protection | 800 |
| GAIN | |
| Gain @ 474 MHz (Ch. 21) | 11 dBi |
| Gain @ 538 MHz (Ch. 29) | 11.0 dBi |
| Gain @ 602 MHz (Ch. 37) | 13.0 dBi |
| Gain @ 730 MHz (Ch. 53) | 14.5 dBi |
| Gain @ 786 MHz (Ch. 60) | 11.5 dBi |
| LOSS | |
| Rejection @ 811 MHz (LTE D1) | 8.0 dB |
| Rejection @ 821 MHz (LTE D6) | 8.0 dB |
| Rejection @ 832 MHz (LTE U1) | 10.0 dB |
| Rejection @ 862 MHz (LTE U6) | 15.0 dB |
| ELECTRICAL | |
| Front to back ratio - horisontal | 25 dB |
| Impedance | 75 Ω |
| CONNECTORS | |
| Connector Type | F-female |
| MECHANICAL | |
| Elements | 52 |
| Windload | 96 N |
| Beamwidth horisontal | ± 15 ° |
| Bracketry | Mast - backmounting |
| Main material | Aluminium |
| Product Length | 1512 mm |
| Product Width | 500 mm |
| Packing QTY | 5 |
| Packaging Height | 0.085 m |
| Packaging Width | 0.425 m |
| Packaging Depth | 0.910 m |
| Packaging Volume | 0.033 m3 |
| Net Weight | 1.325 kg |
| Tara Weight | 0.835 kg |
| Total Weight | 2.160 kg |
