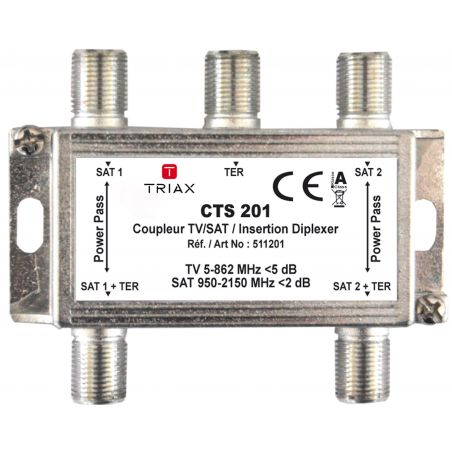

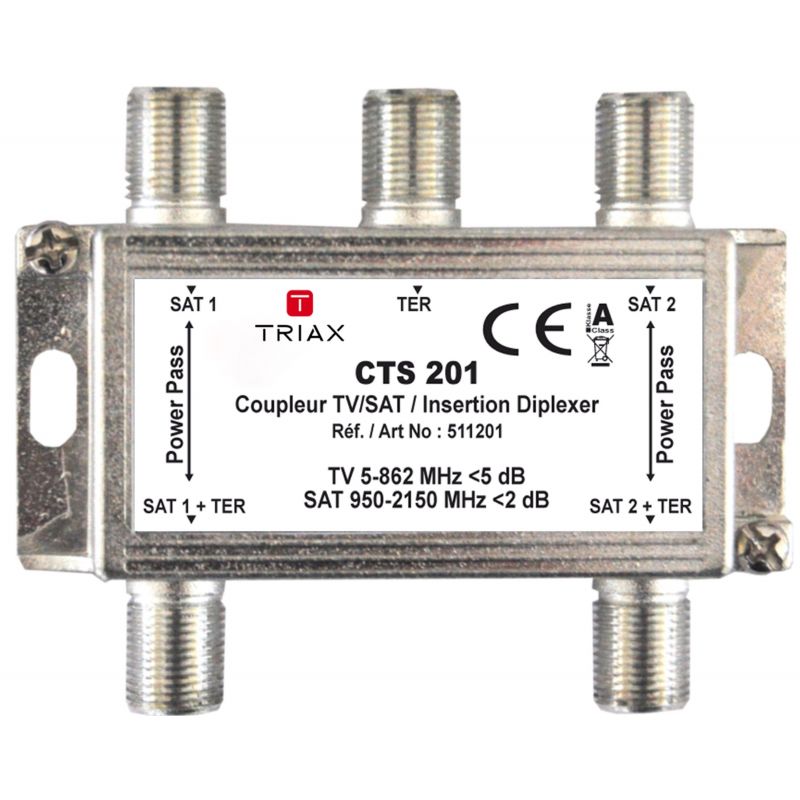

Triax CTS 201 RF + FI band mixer for ICT. 3e/2s
TV / SAT coupler with double shielding 3 inputs: 1 TERR / 2 SAT, 2 outputs. 1 terrestrial input: 47 - 862 MHz, step loss: <4 dB. 2 satellite inputs: 950 - 2200 MHz, step loss: <2 dB. DC connection: 24 VDC / 1 A. 2 independent outputs of 47 - 2200 MHz. Allows terrestrial signals to be coupled with the satellite signals coming from the 2 outputs of a double LNB.
€62.56
Tax included
Reference
triax-511201
Brand
Triax
Triax CTS 201 RF + FI band mixer for ICT. 3e/2s
€62.56
RF + FI band mixers for ICT
Features
- 3 Inputs (Sat / Terr), 2 outputs (Sat + Terr)
- Attenuation in Sat: -1 dB
- Attenuation in Terr: -1.5 dB
- Current pass In/Out: 1 A maximum
Specifications
| INFORMACION DE PEDIDO | |
|---|---|
| Código EAN | 5702665112016 |
| CARACTERÍSTICAS | |
| Tipi | Acoplador |
| BANDA DE FRECUENCIA | |
| [Entrada 1] - frecuencias | 47...862 MHz MHz |
| [Entrada 2] - banda | 950...2200 |
| [Entrada 3] - frecuencias | 950...2200 MHz |
| ATENUACIÓN | |
| [Entrada 1] - pérdida de paso | < 4 dB |
| [Entrada 2] - pérdida de paso | 2 dB |
| [Entrada 3] - pérdida de paso | 2 dB |
| CONECTORES | |
| Tipo de conector | F-hembra |
| Número de entradas | 3 Entradas (1 TV, 2 Sat) |
| Número de salidas | 2 salidas 47 ... 2200 MHz independientes. |
| MECÁNICO | |
| Altura bruta | 0.075 m |
| Ancho bruto | 0.058 m |
| Profundidad bruta | 0.016 m |
| Peso neto | 0.160 kg |
| Peso bruto | 0.200 Kg |
| Observaciones | Permite que las señales terrestres se acoplen con las señales de satélite que provienen de las 2 salidas de un LNB doble. |
Notice: Undefined index: category in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Notice: Trying to get property of non-object in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
TV / SAT coupler with double shielding 3 inputs: 1 TERR / 2 SAT, 2 outputs. 1 terrestrial input: 47 - 862 MHz, step loss: <4 dB. 2 satellite inputs: 950 - 2200 MHz, step loss: <2 dB. DC connection: 24 VDC / 1 A. 2 independent outputs of 47 - 2200 MHz. Allows terrestrial signals to be coupled with the satellite signals coming from the 2 outputs of a double LNB.
