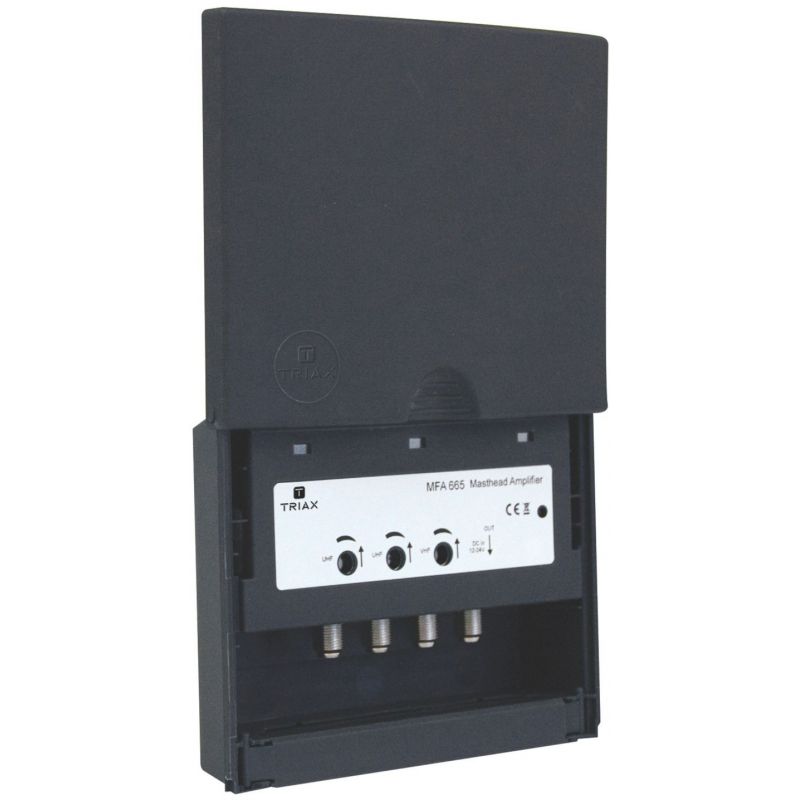

MFA 665 3 Input UHF/UHF/VHF Multiband mast amplifier Triax
Mast amplifier 3 inputs UHF1 / UHF2 / VHF. Gain: UHF 1 (19 - 29 dB), UHF2 (12 - 22 dB), VHF (13 - 23 dB). Output level: 109 dBμV. F female connectors. Waterproof housing. RF armored and CE approved (EN 50083).
€58.69
Tax included
Reference
triax-340665
Brand
Triax
MFA 665 - UHF / UHF / VHF - mast amplifier
Features
- Mast amplifier 3 inputs UHF1 / UHF2 / VHF.
- Gain: UHF 1 (19 - 29 dB), UHF2 (12 - 22 dB), VHF (13 - 23 dB).
- Output level: 109 dBμV.
- F female connectors.
- Waterproof housing.
- RF armored and CE approved (EN 50083).
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663406650 |
| CHARACTERISTICS | |
| Type | Amplifier - mast |
| Max. Output level @ -60 dB IMD | 109 dBµV |
| FREQUENCY | |
| Input 1 - frequency | 470...862 MHz |
| Input 1 - band | UHF |
| Input 1 - channels | 21...69 |
| Input 2 - frequency | 470...862 MHz |
| Input 2 - band | UHF |
| Input 2 - channels | 21...69 |
| Input 3 - frequency | 47...230 MHz |
| Input 3 - band | VHF |
| Input 3 - channels | 2...12 |
| GAIN | |
| Input 1 - gain | 19...29 dB |
| Input 1 - noise figure | 3,8 dB |
| Input 2 - gain | 12...22 dB |
| Input 2 - noise figure | 12 dB |
| Input 3 - gain | 13...23 dB |
| Input 3 - noise figure | 4.5 dB |
| RETURN LOSS | |
| Return Loss | 10/10 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| LED indicator | Green |
| DC Operating voltage | 12...24 VDC |
| DC Current consumption | 82...98 mA |
| CONNECTORS | |
| Number of inputs | 3 |
| Number of outputs | 1 |
| Connector Type | F-female |
| MECHANICAL | |
| Product Height | 115 mm |
| Product Depth | 60 mm |
| Product Width | 117 mm |
| Colour | RAL 7016 - Anthracite grey |
| Packaging Height | 0.060 m |
| Packaging Width | 0.130 m |
| Packaging Depth | 0.145 m |
| Packaging Volume | 0.001 m3 |
| Net Weight | 0.226 kg |
| Tara Weight | 0.046 kg |
| Total Weight | 0.272 kg |
