  • Triax TOL 64 Optical LNB for 64 distributions

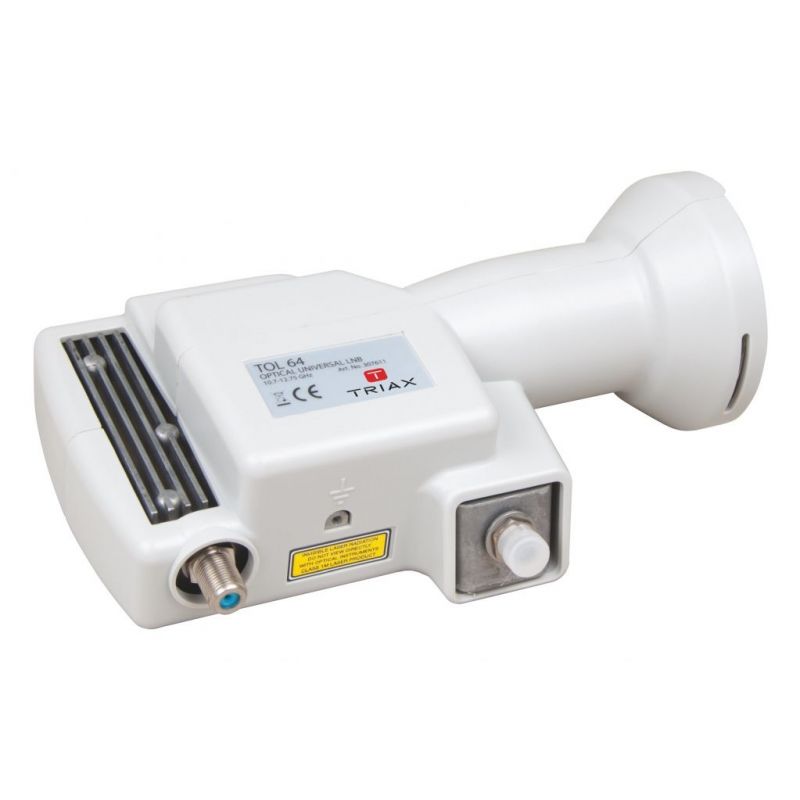

Triax TOL 64 Optical LNB for 64 distributions

The TRIAX TOL64 is a high quality universal high performance optical LNB that, in addition to the excellent performance of the LNB, provides a broadband 1310 nm optical output where the four polarities of the satellites are stacked in a frequency range (950- 5450 MHz).

€590.78
Tax included
Reference triax-307611
Brand Triax
Quantity
Available in 4/5 days

Free shipping

Triax TOL 64 Optical LNB for 64 distributions

€590.78

The TRIAX TOL64 is a high quality universal high performance optical LNB that, in addition to the excellent performance of the LNB, provides a broadband 1310 nm optical output where the four polarities of the satellites are stacked in a frequency range (950- 5450 MHz). Using modern laser technology, this frequency range can be transmitted through a single laser at a very large distance, with a link link for 64-way splitters ..

This allows a configuration of the system that can drive a fairly large passive optical network (PON) before the signal finally feeds a series of optical converters for traditional coaxial cable distribution. The stacking / unstacking technology provides a very cost-effective solution, since a single laser carries the four complete satellite polarities in an optical cable. This, unlike traditional fiber optic solutions that require a laser by polarity, means a substantial cost saving, without compromising the signals, range or quality of the satellite.

This means that not only is the investment in fiber optic cables maintained at an absolute minimum, but the full PON also benefits from the same savings. The DC power of the LNB is made through a coaxial cable and an F connector. The power supply is included in the kit. A high quality FC / PC type fiber optic connector is used for optimal outdoor performance.

Specifications

INFORMACIÓN DEL PEDIDO
Número EAN 5702663076112
CARACTERÍSTICAS ÓPTICAS
Optical output level (nom. @ 25 °C) 8.5 dBm
Optical budget for PON (max.) 22 dB
Optical splitting in PON (max.) 64
CARACTERÍSTICAS
Tipo LNB Opto
Longitud de onda 1310 nm
Laser Class 1M
Feedhorn diameter 40 mm
Rango Frecuencia entrada 10.7 - 12.75 GHz
Polarización entrada horizontal & vertical
SAT-IF vertical band, stacked VL + VH 0.950 - 3.0 GHz
SAT-IF horizontal band, stacked HL + HH 3.4 - 5.45 GHz
Frecuencia O.L, Vertical 9.75 GHz
Frecuencia O.L, Horizontal 7.3 GHz
Image frequency rejection (min.) 40 dB
Spurious in SAT-IF band -25 dBc
Fibre link distance max. (subject to PON loss) 10 km
GANANCIA
Ganancia 62 - 72 dB
Noise figure (typical) 0.5 dB
AISLAMIENTO
Cross polar isolation (typ.) 30 dB
OPERACIONAL
DC Tensión de trabajo 20 VDC
Consumo de tensión < 300 mA
Externo PSU Incluida
Externo PSU Código articulo 307657 (TPS323-20Vdc/1.2A)
Temperature Operating -30 ... +60 °C
Temperatura - almacenaje -40 ... +70 °C
CONECTORES
Conector OUT FC/PC
Connector power supply F-female
MECÁNICO
Dimensions product HxDxW 173 x 108 x 68 mm
Altura Embalaje 0.070 m
Anchura Embalaje 0.190 m
Profundidad Embalaje 0.120 m
Volumen Embalaje 0.002 m3
Peso Neto 0.641 kg
Peso Tara 0.051 kg
Peso Total 0.692 kg
