search
  • TSI Universal Single LNB Triax

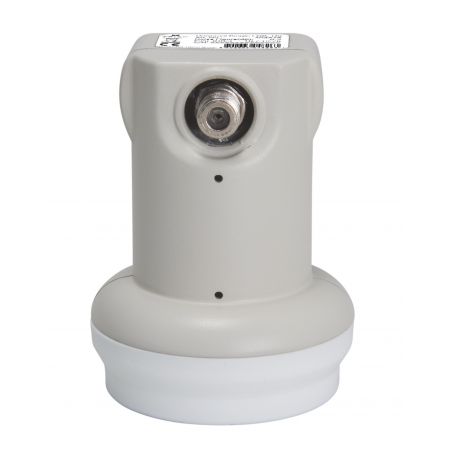

Triax TSID LNB Universal Single Converter

TRIAX Single LNB's.  Great quality, low footprint. Cutting edge RF technology. Excellent Cross polar isolation. Excellent low noise / low phase noise. High output / low power consumption. Weatherproof & qualified for harsh invironments.

€9.32
Tax included
Reference triax-304828
Brand Triax
Quantity
Available in 4/5 days

Free shipping

Triax TSID LNB Universal Single Converter

€9.32

TRIAX complete range of LNB's

Features

  • Great quality, low footprint
  • Cutting edge RF technology
  • Excellent Cross polar isolation
  • Excellent low noise / low phase noise
  • High output / low power consumption
  • Weatherproof & qualified for harsh invironments
  • Single type
  • Formerly triax-304826

Specifications

CHARACTERISTICS
Phase noise @ room temperature - 1 kHz - 60 dBc/Hz
Phase noise @ room temperature - 10 kHz - 80 dBc/Hz
Phase noise @ room temperature - 100 kHz - 100 dBc/Hz
Spurious level - 60 (max.) dBm
Image rejection (min.) 40 dB
Output VSWR 2.0:1
Feedhorn diameter Ø 40 mm
LO temperature drifting ± 3 MHz
LNB type Single
FREQUENCY
Input frequency low band 10.7...11,7 GHz
Input frequency high band 11.7...12.75 GHz
Output frequency low band 950...2150 MHz
L.O. frequency low band 9.75 GHz
L.O. frequency high band 10.6 GHz
GAIN
Gain flatness (across 26 MHz segm) 5 dB
Conversion gain (typ.) 55...65 dB
Noise figure max. ≤ 1.0 dB
ISOLATION
Cross polarization isolation 20 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
DC Current consumption 100 mA
Operating voltage vertical 10.5...14.5 V/DC
Operating voltage horizontal 15.5...21.0 V/DC
Temperature - operating -30...60 °C
MECHANICAL
Reflector type Offset
Colour RAL 7035 - Light grey
Packing QTY 1
Product Height 110 mm
Product Width 62 mm
Product Depth 62 mm
Packaging Height 0,180 m
Packaging Width 0,065 m
Packaging Depth 0,065 m
Packaging Volume 0,053 m3
Net Weight 0,111 kg
Tara Weight 0,022 kg
Total Weight 0,133 kg
