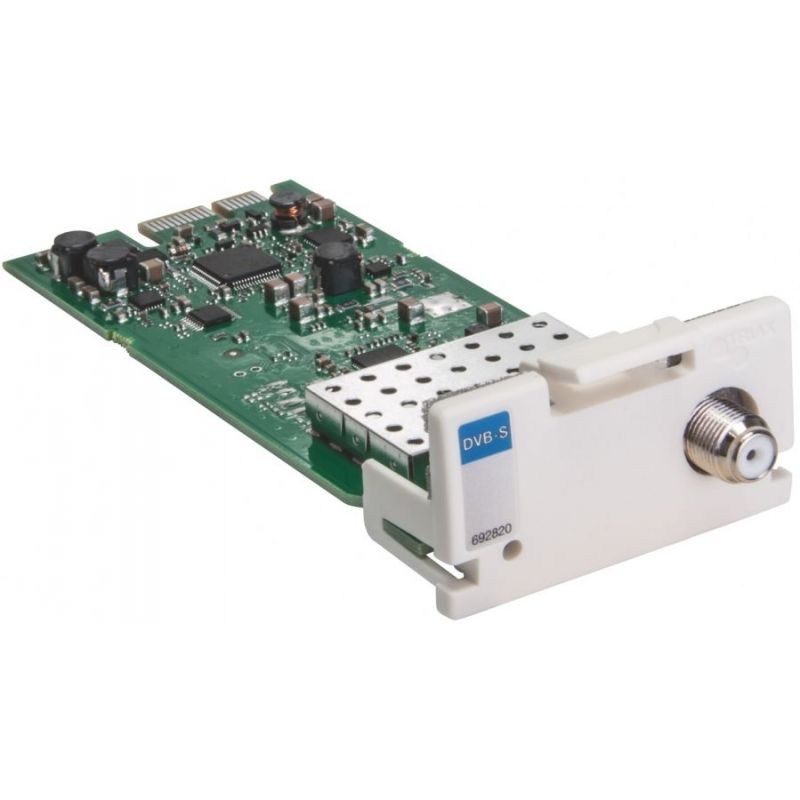

Triax TDH 811 Frontend IN Module DVB-S/S2 - 8PSK 950-2150MHz
The DVB-S/S2 frontend module is an input module for the reception of digital satellite signals in a TDH 800 headend system. The module can receive a complete transponder and all services on the chosen frequency can be transferred to the TDH 800 pool.
€297.25
Tax included
Reference
triax-692820
Brand
Triax
Triax TDH 811 Frontend IN Module DVB-S/S2 - 8PSK 950-2150MHz
€297.25
DVB-S/S2 frontend module
The DVB-S/S2 frontend module is an input module for the reception of digital satellite signals in a TDH 800 headend system. The module can receive a complete transponder and all services on the chosen frequency can be transferred to the TDH 800 pool.
The DVB-S/S2 frontend module includes an IF tuner with antenna loop through and a QPSK/8PSK demodulator with serial transport stream input to the TDH 800 headend system.
Features
- Software downloading through TDH 800 system controller module.
- Preconfiguration from/to file through system controller module.
- Log to file/flash.
- Meets the DVB-S standard, up to 45 MS / s.
- Meets the DVB-S2 standard, up to 37 MS / s.
- LNB control: 0/14 / 18V - 0 / 22kHz.
- All services are transferred to the TDH 800 pool.
- Meets DiSEqC protocol (1.0)
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702666928203 |
| CHARACTERISTICS | |
| Input level | 55...75 dBµV |
| LNB V/H programmable | 0-13-18/300 V/mA |
| LNB LO/HI programmable | 0/22 kHz |
| DiSEqC level | 1.1 |
| FREQUENCY | |
| Input frequency range | 950...2150 MHz |
| RETURN LOSS | |
| Input return loss | > 10 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| DC Operating voltage | 12 VDC |
| DC Current consumption | OFF 150/ ON 450 mA |
| Temperature - operating | -10...+50 °C |
| Humidity - operating | 20...80 % |
| Temperature - storage | -20...+70 °C |
| Humidity - storage | 10...90 % |
| CONNECTORS | |
| Number of inputs | 1 |
| Connector Type | F-female |
| MECHANICAL | |
| Dimensions product (H x D x W) | 32 x 132 x 50 mm |
| Packing QTY | 1 |
| Packaging Height | 0.040 m |
| Packaging Width | 0.075 m |
| Packaging Depth | 0.175 m |
| Packaging Volume | 0.001 m3 |
| Net Weight | 0.075 kg |
| Tara Weight | 0.030 kg |
| Total Weight | 0.105 kg |
