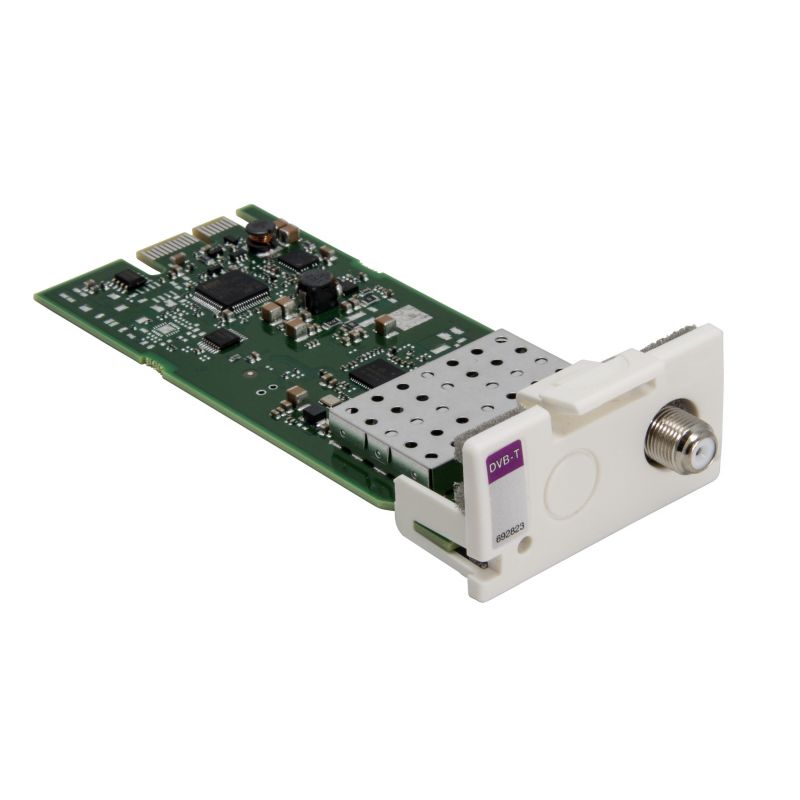

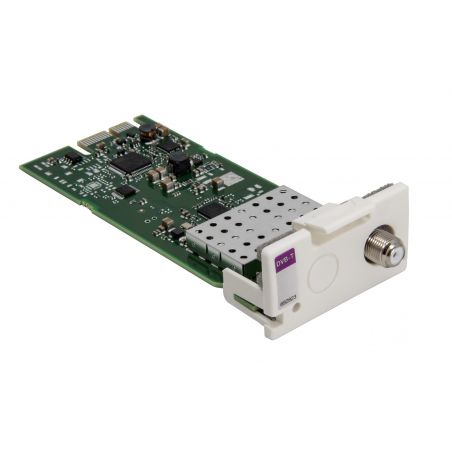

Triax TDH 813 Frontend IN Module DVB-T/T2 - 177.5 ... 226.5/474 ... 858MHz
The DVB-T/T2 frontend module is an input module for the reception of both T and T2 digital terrestrial signals. The module can receive a complete terrestrial MUX and send all services in the MUX to the TDH 800 pool.
€297.25
Tax included
Reference
triax-692823
Brand
Triax
Triax TDH 813 Frontend IN Module DVB-T/T2 - 177.5 ... 226.5/474 ... 858MHz
€297.25
DVB-T/T2 frontend module
The DVB-T/T2 frontend module is an input module for the reception of both T and T2 digital terrestrial signals. The module can receive a complete terrestrial MUX and send all services in the MUX to the TDH 800 pool.
The DVB-T/T2 frontend module includes a tuner, with integrated gain control and channel filtering, and a COFDM demodulator with serial transport stream input to the TDH 800 system.
Features
- Reception of HD and SD services
- Software downloading through TDH 800 system controller module
- Preconfiguration from/to file through system controller module
- Log to file/flash
- All services will be transferred to the TDH 800 pool
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702666928234 |
| CHARACTERISTICS | |
| Demodulator Type | COFDM |
| Input level | 45...75 dBµV |
| FFT mode DVB-T | 2K, 8K |
| FFT mode DVB-T2 | 1 K, 2K, 4K, 8K, 16K, 32K |
| Constallations DVB-T | QPSK, 16QAM, 64QAM |
| Constallations DVB-T2 | QPSK, 16QAM, 64QAM, 256QAM |
| Code rates DVB-T | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Code rates DVB-T2 | 1/2, 2/3, 3/4, 5/6 |
| Guard Interval DVB-T | 1/4, 1/8, 1/16, 1/32 |
| Guard interval DVB-T2 | 1/4, 1/8, 1/16, 1/32, 1/128 |
| FREQUENCY | |
| Input frequency range | VHF III 177.5 - 226.5 MHz /UHF 474 - 858 MHz |
| Bandwidth | 7/8 MHz |
| GAIN | |
| Input noise figure | < 7.0 dB |
| RETURN LOSS | |
| Input return loss | > 6 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| DC Operating voltage | 12 VDC |
| DC Current consumption | 200 mA |
| Temperature - operating | -10 to +50 °C |
| Humidity - operating | 20 to 80 % |
| Temperature - storage | -20 to + 70 °C |
| Humidity - storage | 10 to 90 % |
| CONNECTORS | |
| Number of inputs | 1 |
| Connector Type | F-female |
| MECHANICAL | |
| Dimensions product (H x D x W) | 29 x 132 x 50 mm |
| Packing QTY | 1 |
| Packaging Height | 0.040 m |
| Packaging Width | 0.075 m |
| Packaging Depth | 0.175 m |
| Packaging Volume | 0.001 m3 |
| Net Weight | 0.047 kg |
| Tara Weight | 0.033 kg |
| Total Weight | 0.080 kg |
