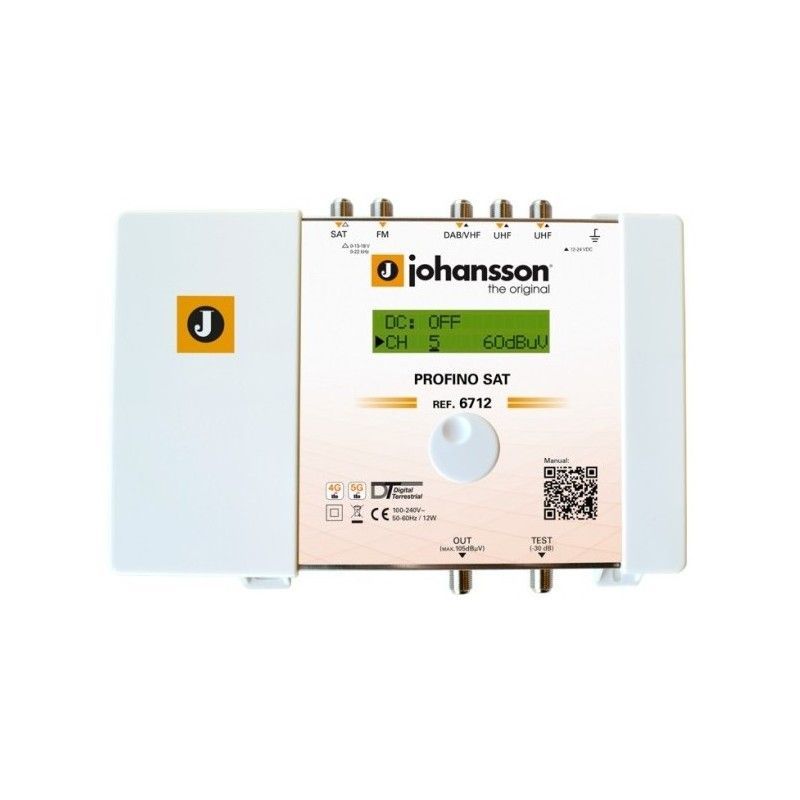

Johansson 6712 Programmable Header Profino Revolution SAT

Programmable terrestrial filter amplifier: 5 inputs: 1SAT + 1 FM + 1 DAB/VHF + 2 UHF / 20 Channels / AGC / 12-24 V remote power.

€243.21 €363.00 Save 33%
Tax included
Reference johansson-6712
Brand Johansson
Quantity
Available Now

Free shipping
Johansson 6712 Programmable Header Profino Revolution SAT

Johansson 6712 Programmable Header Profino Revolution SAT

€243.21 €363.00 Save 33%

Programmable terrestrial filter amplifier: 5 inputs: 1SAT + 1 FM + 1 DAB/VHF + 2 UHF / 20 Channels / AGC / 12-24 V remote power

THE PROFINO WILL BOOST YOUR BUSINESS

  • The Profino Revolution SAT is a light version digital Profiler.
  • The 6712 has 1 SAT, 1 FM, 1 DAB/VHF and 2 UHF inputs.
  • Up to 20 Channels can be filtered and amplified.
  • Channel conversion is not possible, but the filters on adjacent channels are extremely sharp.

The new Johansson Profino Revolution SAT has no equivalent on the market due to its revolutionary technology:

  • Read-out of input level strength: no need for field strength meter
  • Can process up to 20 channels (Terrestrial and Satellite)
  • Sharpest filters on the market (50 dB on adjacent channels)
  • Real-time AGC on all individual multiplexes
  • Flex matrix: complete flexibility in assigning filters from any input
  • Made in Europe, for worldwide application
  • The Profino Revolution SAT is really easy to install
  • RED compliant (selectivity classification 0 – 1 – 2 – 3 – 4)

Specifications

 Model   6712*
Inputs - 1 SAT + 1 FM + 1 DAB/VHF + 2 UHF
Outputs - 1 main (SAT-FM-DAB-VHF-UHF) + 1 test port (-30dB)
Frequency range MHz
MHz
MHz
MHz		 SAT: 950 - 2400
FM: 88 - 108
VHF:174 - 240
UHF: 470 - 862
LTE protection MHz Automatic selection: 694, 790 or OFF
Input level dBµV
dBµV
dBµV
dBµV		 SAT: 40 - 95
FM: 37 - 77
VHF: 45** - 109
UHF: 45** - 109
SAT output power (-35dBc/IM3 2 carriers) dBµV 119
FM output power (60dB/IM3) dBµV 113
VHF/UHF output power (60dB/IM3) dBµV 115
VHF/UHF output power with 1 MUX dBµV 105
VHF/UHF output power with 6 MUX dBµV 105
Conversion - No
Gain dB
dB
dB
dB		 SAT: 40
FM: 35
VHF: 35
UHF: 45
Gain adjustment dB
dB
dB		 SAT: 20
FM: 20
VHF/UHF: Channel AGC
Noise figure dB SAT: 8
General attenuator dB 20
Slope adjustment dB
dB		 SAT: 12
VHF/UHF: 9
Selectivity dB
dB/1MHz		 SAT: 40 (@862 MHz)
VHF/UHF: 35
Return Loss dB 10
Output MER dB
dB		 VHF: 35
UHF: 35
ESD protection - All inputs
DC @ VHF/UHF input
DC Load current @ VHF/UHF input		 V
mA		 12 or 24
100 (total for the 3 inputs)
DC @ SAT input
DC Load current @ SAT input		 -
mA		 13V/18V/Bypass & 0/22 kHz selectable by SW
300
SD port - No
Operating temperature °C -5 to +50
Power Supply
Power Consumption		 V
W		 100 - 240
12
Dimensions mm 217 x 165 x 59
Weight kg 0.8

* Patent Pending
** For 64QAM with code rate 3/4
