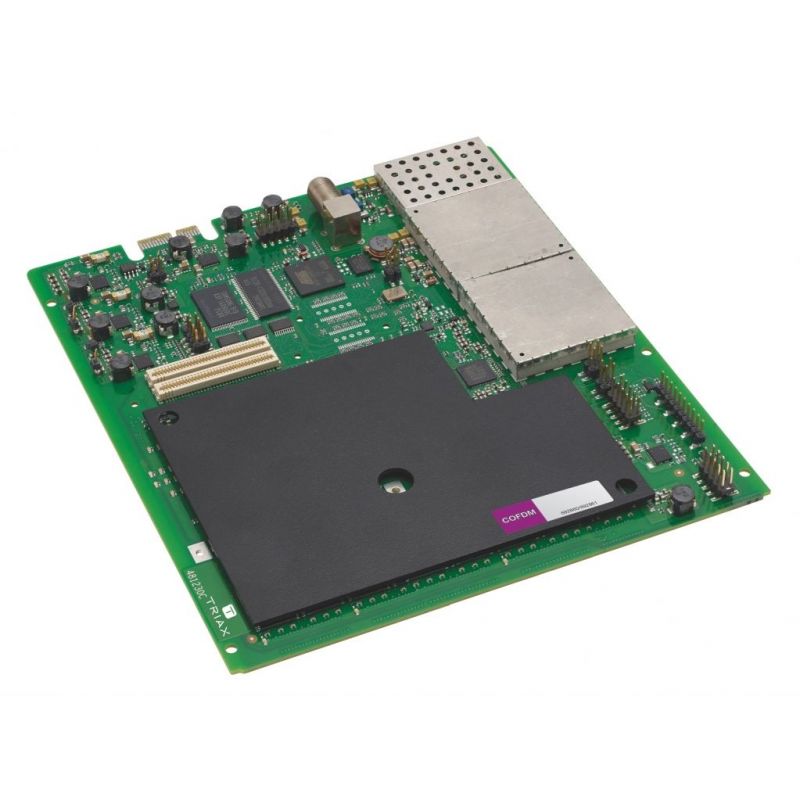

Triax TDH 843 Backend Module 4 adjacent COFDM outputs 50...858 MHz
Quad COFDM backend modules - DVB-T in FTA. The TDH 800 quad COFDM backend module is an output module that enables you to create up to 4 muxes of services/TV programs which are available from the TDH 800 pool. The services are distributed in a COFDM data stream. The COFDM output modules is delivered in a free-to-air version.
€2,697.62
Tax included
Reference
triax-692860
Brand
Triax
Triax TDH 843 Backend Module 4 adjacent COFDM outputs 50...858 MHz
€2,697.62
Quad modules COFDM backend - FTA
Quad COFDM backend modules - DVB-T in FTA. The TDH 800 quad COFDM backend module is an output module that enables you to create up to 4 muxes of services/TV programs which are available from the TDH 800 pool. The services are distributed in a COFDM data stream. The COFDM output modules is delivered in a free-to-air version.
Features
- DVB-T Quad COFDM output module for FTA programs or to decode contents/services.
- NIT and stuffing.
- Supports local NIT and Golbal.
- SDTactual and others of the transport stream.
- Easy to install
- All services are transferred to TDH 800 pool.
- Supports decoding through the CA (692851) - The module adds filler bits.
- Combine your COFDM muxes as you like.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702666928609 |
| CHARACTERISTICS | |
| Spurious Signals | > 60 dB |
| Carrier supported | 2K |
| Guard Interval | 1/32, 1/16, 1/8, 1/4 |
| TER - FEC rate | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Output QAM Modes | 16QAM, 64QAM, QPSK |
| Output spectrum | Normal |
| Output level adjustment | +3...-17 dB |
| Output Level System | 90.0 ± 1.5 dBµV |
| MER | ≥ 35.0 dB |
| FREQUENCY | |
| Output frequency range | 50.5 - 858 MHz |
| Channel Raster | 7, 8, 8.5 MHz |
| Frequency step | 250 kHz |
| RETURN LOSS | |
| Output Return Loss | > 10 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| CI slots | 0 |
| DC Operating voltage | 12 ± 1 VDC |
| DC Current consumption | 1000 mA |
| Temperature - operating | -10...+50 °C |
| Humidity - operating | 20...80 % |
| Temperature - storage | -20...+70 °C |
| Humidity - storage | 10...90 % |
| CONNECTORS | |
| Connector Type | F-female |
| MECHANICAL | |
| Dimensions product (H x D x W) | 17 x 162 x 182 mm |
| Packing QTY | 1 |
| Packaging Height | 0.060 m |
| Packaging Width | 0.180 m |
| Packaging Depth | 0.270 m |
| Packaging Volume | 0.003 m3 |
| Net Weight | 0.290 kg |
| Total Weight | 0.290 kg |
