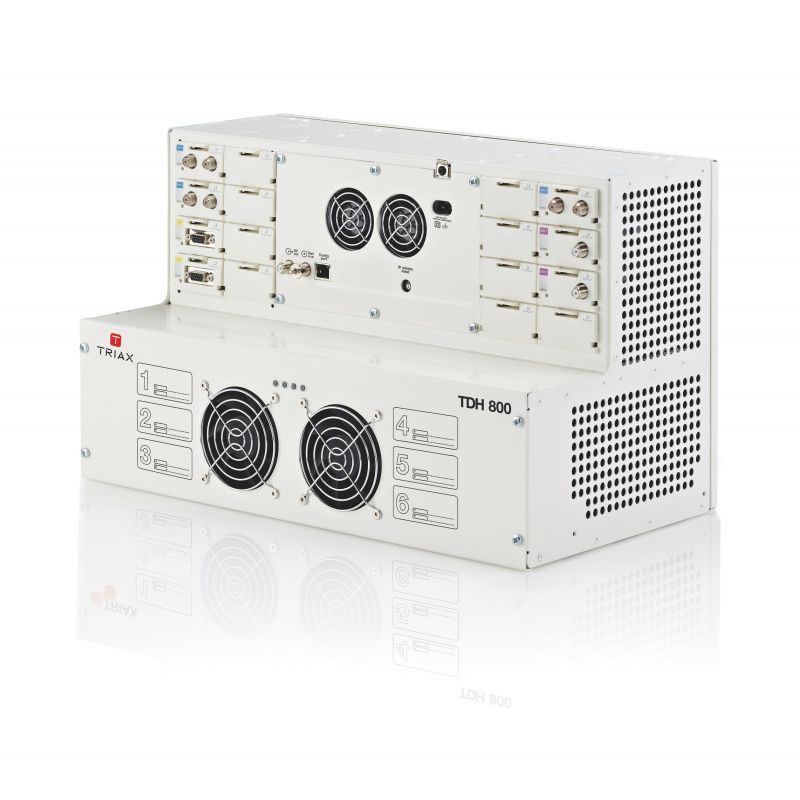

Triax TDH 801 Cabinet Main Unit
The cabinet is designed as one system of input and output signals, as such up to 24 PAL programmes or 24 QAM channels are possible; it is extremely compact and can therefore be easily installed on a wall or in a 19" rack. The HF output level of the integrated TDH 800 output amplifier can be software-adjusted within the range 85 dBµV through 93 dBµV.
€2,772.09
Tax included
Reference
triax-692890
Brand
Triax
Triax TDH 801 Cabinet Main Unit
€2,772.09
TDH 800. Technology, that can do more.
The cabinet is designed as one system of input and output signals, as such up to 24 PAL programmes or 24 QAM channels are possible; it is extremely compact and can therefore be easily installed on a wall or in a 19 "rack. Whether it is related to the installation, maintenance or repair all inputs, outputs and cables can be easily installed and operated from the front of the TDH 800.
The HF output level of the integrated TDH 800 output amplifier can be software-adjusted within the range 85 dBµV through 93 dBµV.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702666928906 |
| CHARACTERISTICS | |
| Max. LNB control | 4 x 305 mA |
| Output level max. @ 60 dB IMD - 24 combined channels | 93 dBµV |
| Test point | - 20 dB |
| External test point | F-connector |
| FREQUENCY | |
| Frequency range (RF OUT) | 47-862 MHz |
| RETURN LOSS | |
| Return loss (RF OUT) | > 10 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| AC Supply voltage | 190-260 (50/60 HZ IEC320 1.8m cable) VAC |
| Power Consumption (typ.) | 280 (min 20) W |
| Temperature - storage | -20 to +70 °C |
| Temperature - operating | -10 to +50 °C |
| Humidity - storage | 10 to 90 % |
| Humidity - operating | 20 to 80 % |
| CONNECTORS | |
| External RF OUT | F-connector |
| PC interface | RJ 45 |
| MECHANICAL | |
| Dimensions product (H x D x W) | 265 x 240 x 440 mm |
| Packing QTY | 1 |
| Packaging Height | 0.390 m |
| Packaging Width | 0.550 m |
| Packaging Depth | 0.330 m |
| Packaging Volume | 0.071 m3 |
| Net Weight | 10.180 kg |
| Total Weight | 10.180 kg |
