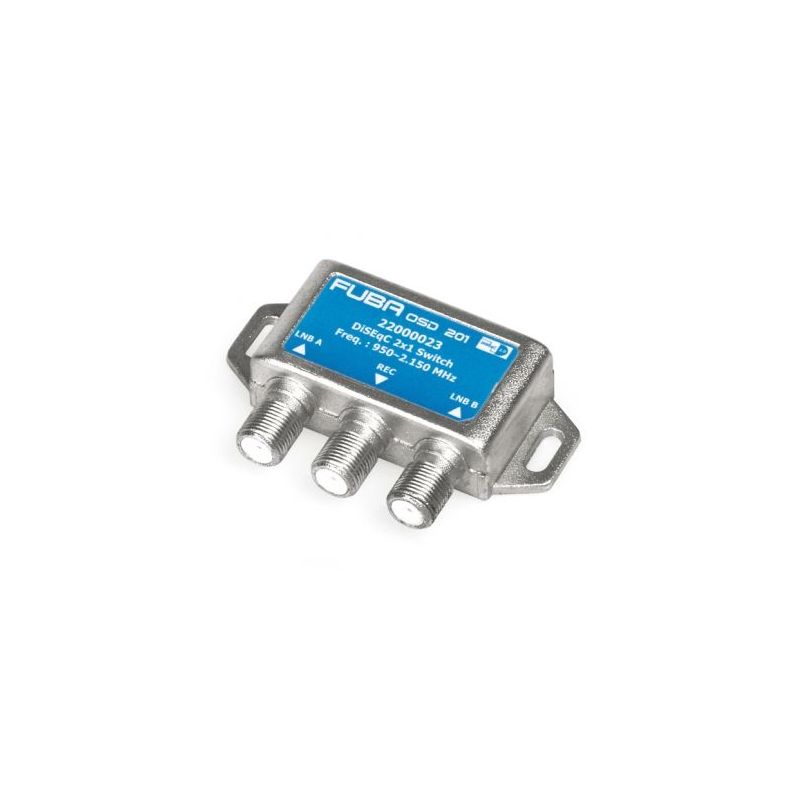

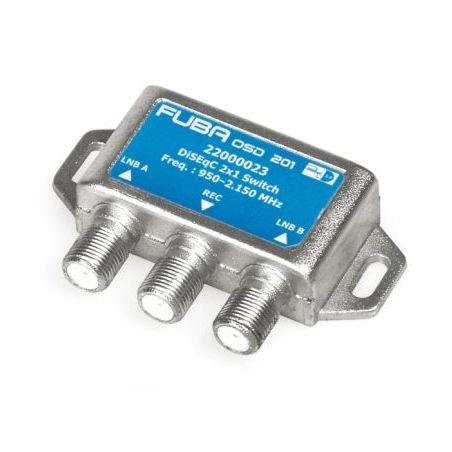

Fuba DISEqC OSD 201 2 inputs 1 output
The DiSEqC 2 switch in the OSD series has a completely cast structure. Inside. Without protector. It consists of 2 entrances and 1 exit. Input frequency 920 ... 2200 MHz. DiSEqC A / B, Toneburst. Total loss: 4 +/- 1 dB. Input / output coupling:> 20 dB. Power: max. 500 mA. Current consumption: 13-20 V, 10 mA.
€8.72
Tax included
Reference
fuba-22000023
Brand
Fuba
Fuba DISEqC OSD 201 2 inputs 1 output
€8.72
The DiSEqC 2 switch in the OSD series has a completely cast structure. Inside. Without protector.
Specifications
| Description | DiSEqC 2x1 switch |
| Working frequency | 950 ... 2200 MHz |
| Inputs | 2 |
| Outputs | 1 |
| Switching | DiSEqC A / B, Toneburst |
| Attenuation of step | 4 ± 1 dB |
| Input / output decoupling | > 20 dB |
| Power supply LNB | máx. 500 mA |
| Impedance | 75 Ω |
| Connections | Sockets f |
| Weight | 100 g |
Notice: Undefined index: category in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Notice: Trying to get property of non-object in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
The DiSEqC 2 switch in the OSD series has a completely cast structure. Inside. Without protector. It consists of 2 entrances and 1 exit. Input frequency 920 ... 2200 MHz. DiSEqC A / B, Toneburst. Total loss: 4 +/- 1 dB. Input / output coupling:> 20 dB. Power: max. 500 mA. Current consumption: 13-20 V, 10 mA.
