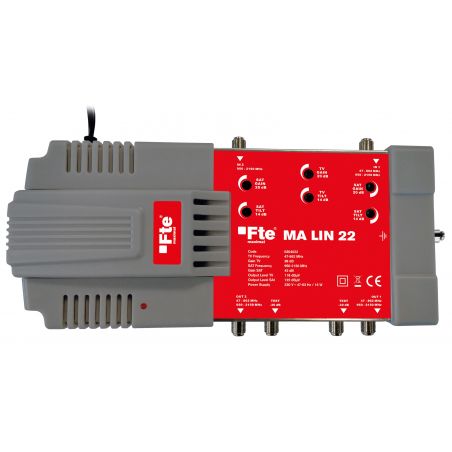

Fte MA LIN 22 Line amplifier
Line amplifier MA LIN 22. 2 inputs (1 ter, 1 ter + sat) and 1 output (2 + 2 of Test (-30 dB)
TER + SAT.) Ter frequency range: 47 - 862 MHz, Sat: 950 - 2150 MHz. Ter gain: 38 ± 1.5 dB, Sat: 42 ± 1.5 dB. Consumption: 230 Vac / 50-60Hz / 16W
€199.41
Tax included
Reference
fte-0304022
Brand
Fte
Fte MA LIN 22 Line amplifier
€199.41
Line amplifier
Specifications
| Model | MA LIN 22 | |
| Code | 0304022 | |
| Nº Inputs SAT | 1 | |
| Nº Inputs TER + SAT | 1 | |
| Nº outputs TER + SAT | 2 + 2 de Test (-30 dB) | |
| Margin frequencies | TER | 47 - 862 MHz |
| SAT | 950 - 2150 MHz | |
| Gain | TER | 38 ± 1.5 dB |
| SAT | 42 ± 1.5 dB | |
| Regulation | TER | 20 dB |
| SAT | 20 dB | |
| Equalization | TER | 14 dB |
| SAT | 14 dB | |
| Max output level | TER | 118 dBμV |
| SAT | 122 dBμV | |
| Operating temperature | 0-40oC | |
| Consumption | 230 Vac/ 50-60Hz /16W | |
| Dimensions | 262 x 128 x 65 mm |
