Triax TMB100S Programmable Central 6 inputs/1 outputs Triax 55 dB 10 LTE filters

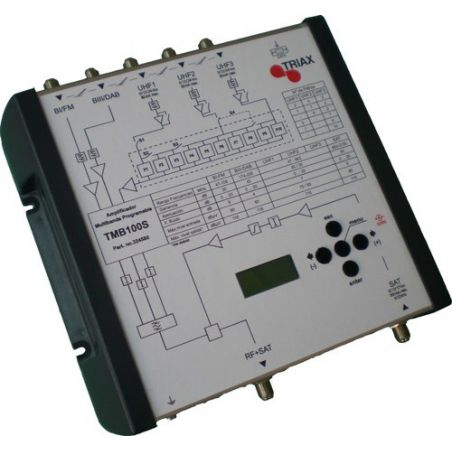

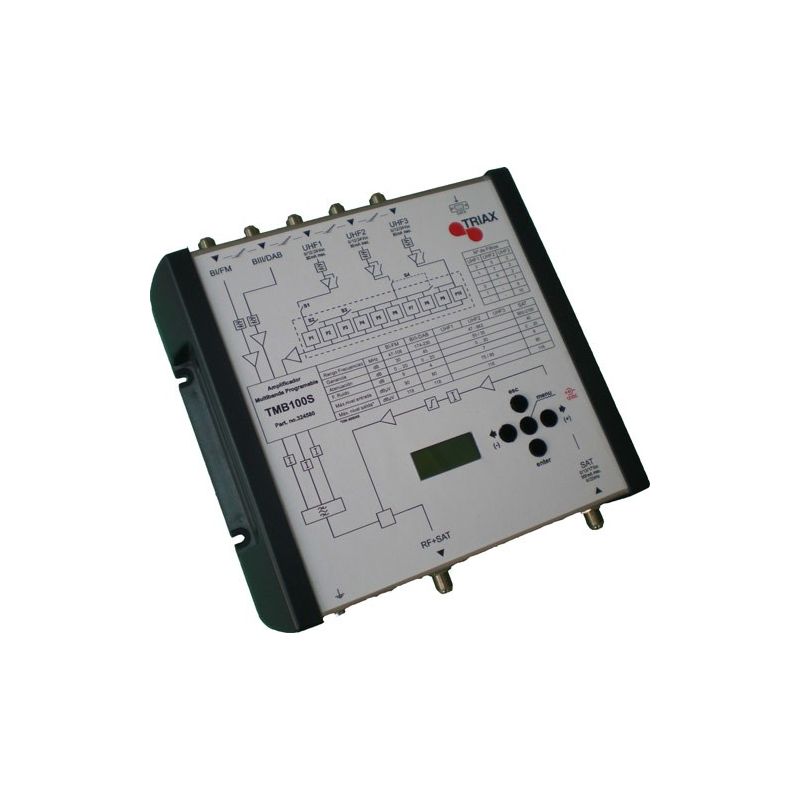

The new programmable multi-band amplifier TMB 100S from TRIAX has all the necessary features to amplify and distribute a large number of analogue and digital terrestrial and satellite signals in a network.
€517.75
Tax included
Reference
triax-324580
Brand
Triax
Triax TMB100S Programmable Central 6 inputs/1 outputs Triax 55 dB 10 LTE filters
€517.75
Programmable multiband Amplifier TMB 100S
Interconnecting and amplifying selectively up to 5 different positioned TV antennas.
This multi-band amplifier is ideal for interconnecting and amplifying of several aerial antennas in MATV plants. The amplifier uses the frequency-selective filtering and level matching of UHF channels. They are selectively combined with the VHF bands.
Features
- 6 entries (BI / FM; BIII; 3xUHF; SAT)
- 10 selective UHF filters that adjust the bandwidth from 1 to 7 channels (8-56 MHz).
- All UHF filters have separate settings, such as amplification and frequency.
- Switchable UHF gain 55/35 dB, BIII gain 45 dB, FM gain 30 dB; SAT gain 40 dB
- Output level UHF 117 dBμV (@ -60 dBc).
- Output level SAT 118 dBμV (IMA 35 dB).
- Power to preamplifiers 12 - 24 V / 80 mA
- Automatic Gain Control provides an output level for constant UHF and VHF and stable operating conditions
- Export or import of all device settings thanks to the RS 232 interface.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663245808 |
| CHARACTERISTICS | |
| Input level - BIII/DAB | max. 80 dBµV |
| Input level - FM | max. 90 dBµV |
| Input level - UHF | max. 95 dBµV |
| Output level @ 60dB IMD - UHF | 115 dBµV |
| Output level BIII/DAB - 170-230 MHz | 120 dBµV |
| FREQUENCY | |
| Filter Bandwidth UHF | 8-56 (1...7ch) MHz |
| Filter Bandwidth VHF | 7 (1ch) MHz |
| Filter Selectivity @ 16 MHz | 16 dB |
| Frequency range BI/FM | 47...108 MHz |
| Frequency range BIII/DAB | 174...240 MHz |
| Frequency range UHF | 470...862 (LTE on: 790) MHz |
| Number of channel filters | 10 |
| GAIN | |
| Gain - FM [47-108 MHz] | 32 dB |
| Gain - DAB [170-230 MHz] | 48 dB |
| Gain - Satellite 1 [950-2150 MHz] | 40 dB |
| Gain - UHF 1 [470-790 MHz] | 55 dB |
| Gain - UHF 3 [470-790 MHz] | 55 dB |
| Gain - UHF 2 [470-790 MHz] | 55 dB |
| Noise figure BI/FM | 9 dB |
| Noise figure SAT | 7.0 dB |
| Noise figure UHF | 7 dB |
| Noise figure VHF | 5 dB |
| LOSS | |
| Attenuation | 0...20 dB |
| RETURN LOSS | |
| Return Loss | >8 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Certification | CE, RoHS2 |
| Screening Efficiency | EN50083-2 (Class A) |
| Operating temperature range | -5 - +40 °C |
| AC Supply voltage | 100...240 VAC |
| Power Consumption (typ.) | 12...18 W |
| Remote Supply | 12...24 / 80mA V/mA |
| CONNECTORS | |
| Connector Type | F-female |
| Number of outputs | 1 |
| RF connector - input | F-female |
| RF connector - output | F-female |
| MECHANICAL | |
| Product Depth | 360 mm |
| Total Weight | 1,667 kg |
| Net Weight | 1,667 kg |
| Product Width | 225 mm |
| Product Height | 50 mm |
