Ellipse antenna

UHF, 2nd Digital Dividend (LTE700)

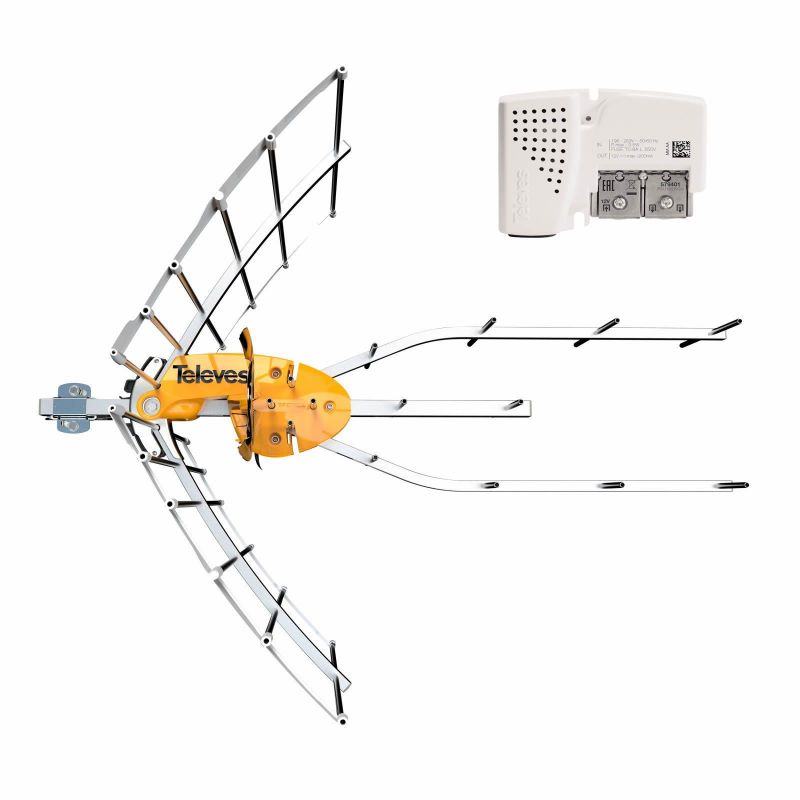

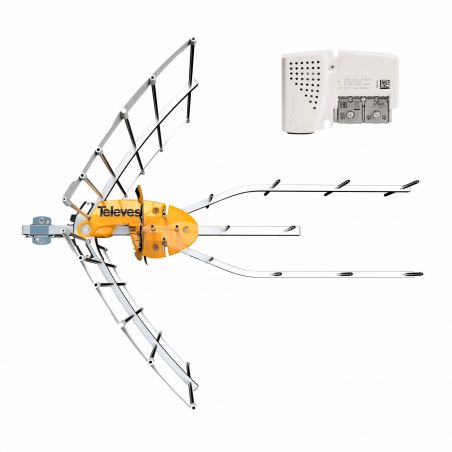

Ellipse is an intelligent antenna that adapts automatically and in real time to your reception conditions. It has been designed for a stable reception and quality of UHF (TDT), optimizing the rejection to the LTE band (up to channel 48) with a SAW filter of great selectivity.
A new concept of antenna that eliminates any interference even in the limit of the TV band merging in a 100% stainless mechanics, a breakthrough design and the new generation of TForce with SAW filter.

Includes power supply.

Ref: 579401 PicoKom power supply, 12V - 200mA, 2 outputs.

Source for 12V housing (220mA), which sends power through the coaxial input cable, allowing the TV signal to pass through. It is inserted into the installation to power mast amplifiers or a BOSS system. It is compatible with amplifiers with satellite mix (FImix), as it automatically detects at its output the existence of an LNB management signal (voltage and tone) generated by a receiver, and lets it pass to its input.

Highlights

• The antenna with the best DTT coverage area: receives correctly in multiple locations, even if the signal is very strong, or reaches the very weak antenna
• Able to adapt to changes in reception conditions: it is continuously checking the signal and adjusting its gain to always give the best possible output level
• Eliminates any interference, even in the limit of the TV band: thanks to its SAW filter (Surface Acoustic Wave) which is characterized by its high selectivity, interference is filtered, mainly from LTE telephony, respecting the last channel of the band
• Mechanics completely immune to corrosion: aluminum and fiberglass structure, stainless steel fasteners and ZAMAK jaw reinforced with anti-corrosive treatment
• Innovative aerodynamic design: its inimitable and meticulously meticulous aesthetic line, is the sample of the passion for details
• Optimized reception: the concave surface of the curved reflectors concentrates the received signal in the dipole. The convex surface maximizes the shielding of the dipole, increasing the rejection against interference
• Assembly experience: assembly of the antenna in less than 30 seconds and the entire installation is done without tools
• Robust and permanent anchoring that prevents maladjustments over time

Features

• Very light and compact: it facilitates installation in complicated places and offers less wind resistance
• High dynamic range: allows to receive a quality signal in a wide range of situations, raising very weak signals and avoiding saturation with high levels of reception
• Optimal C/N: the quality of the signal is respected to the maximum thanks to a figure of very low noise.
• Ideal gain: intelligence automatically regulates the gain at the right level
• Special dipole in double "U": its open/closed format provides optimal flatness in its frequency response
• Fully shielded junction box that protects the BOSS system from impulse noise, and connected to ground for total protection against electric shock
• Low consumption in intelligent mode
• Manufacture in Europe: made in a new line of automated manufacturing, assembled to guarantee the quality of the product through specific controls and manufacturing tests
• Includes power supply to activate intelligence

TForce technology:

Televes exceeds the silicon era and ushers in a new era in the design of electronic components, which allows obtaining integrated circuits that operate in the frequency band of microwaves. TForce is based on the manufacture of semiconductor compounds such as gallium arsenide (GaAs), providing the products that integrate it with features that are difficult to match.

Televés has reinvented the antenna concept. Until now, an antenna was limited to being the sensor element in a TV installation where gain and directivity were the characteristics to be highlighted. The introduction of an intelligent device such as BOSS gave the antenna the ability to receive very weak signals without the risk of being affected by very strong signals where, in addition, the fluctuations did not affect the final result: the concept of "dynamic margin" it is thus revealed as the most remarkable among the quality parameters.

The creation of a BOSS with TForce technology, based on the use of MMIC components, is an extraordinary milestone in the optimization of dynamic Margin. A technology that allowed the recovery of lost signals from distant satellites is what now makes it possible to increase the range of coverage in DTT installations.

Videos

Specifications

Antenna
