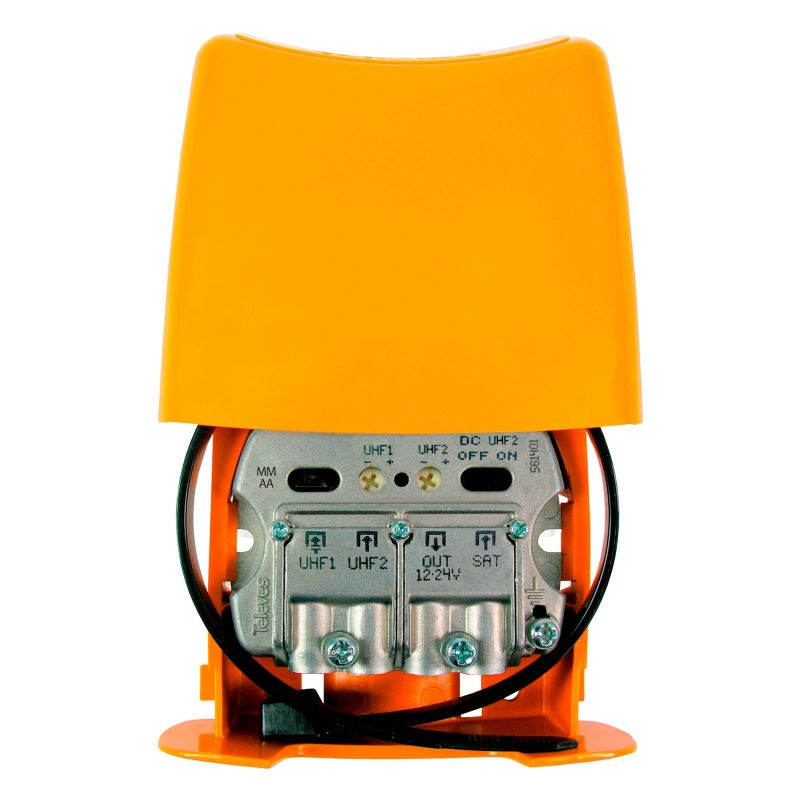

Amplifier Mast NanoKom 3e/1s EasyF UHF/UHF[dc]/FImix[dc] 12...24V LTE790 Televes
search
  • Amplifier Mast NanoKom 3e/1s EasyF UHF/UHF[dc]/FImix[dc] 12...24V LTE790 Televes

Amplifier Mast NanoKom 3e/1s EasyF UHF/UHF[dc]/FImix[dc] 12...24V LTE790 Televes

Masthead amplifier for the amplification and combination of terrestrial and satellite television signals coming from several antennas. LTE790. Equipped with 3 inputs: the signals on both UHF inputs are amplified, whereas the SAT signal is only combined.
Allows DC pass towards the satellite input to power the LNB.

€40.29
Tax included
Reference televes-561401
Brand Televes
Quantity
Available in 24/48h

Free shipping
Amplifier Mast NanoKom 3e/1s EasyF UHF/UHF[dc]/FImix[dc] 12...24V LTE790 Televes

Amplifier Mast NanoKom 3e/1s EasyF UHF/UHF[dc]/FImix[dc] 12...24V LTE790 Televes

€40.29

Masthead amplifier for the amplification and combination of terrestrial and satellite television signals coming from several antennas.

LTE790.
Equipped with 3 inputs: the signals on both UHF inputs are amplified, whereas the SAT signal is only combined.
Allows DC pass towards the satellite input to power the LNB.

Highlights

  • Separate amplification and very low noise figure, thus respecting signal quality
  • Ultra-small ergonomic design
  • EasyF connection system
  • Can be powered in the 12 V-to-24 V range
  • Fully automated manufacturing, subject to the most stringent quality controls
  • High-screening Zamak chassis

Features

  • LTE/5G filter to remove mobile phone interference. LTE790.
  • ON/OFF switch to allow DC pass towards one of the UHF inputs for the powering of a BOSS system
  • Easy mounting. Equipped with a clamp for mast mounting
  • Resistant ABS-plastic orange case for outdoor installation

Specifiactions

Bands UHF 1 UHF 2 SAT
Frequency margin MHz 470...694 470...694 950...2150
Gain dB 28 -2.5
Gain adjustment range dB MANUAL
0 ... 20		 -
Max. output level DIN 45004B dB 108 -
EN 50083 115 -
10 CH DVB-T - -
Noise level dB

6.5

 -
DC Pass DC UHF OFF mA 0
ON - 40 -
DC SAT - - 300
Power supply Vdc/mA 12-24 / 50
Protection index IP 23
Operating temperature ºC -5 ... +45
