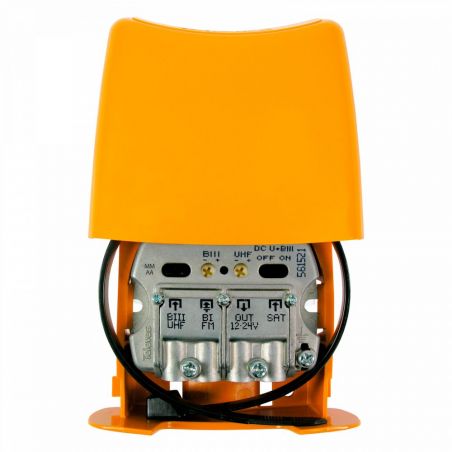

Amplifier Mast NanoKom 3e/1s EasyF BIII/UHF[dc]/FMmix/FImix[dc]12 ... 24V LTE700 Televes

Masthead amplifier for the amplification and combination of terrestrial television and satellite signals coming from several antennas. LTE700. Equipped with 3 inputs: the BIII/UHF input signal is amplified, whereas the FM and SAT signals are only combined. Allows DC pass towards the satellite input to power the LNB. Televes 561521

€45.06

Tax included

Reference televes-561521

Brand Televes

Amplifier Mast NanoKom 3e/1s EasyF BIII/UHF[dc]/FMmix/FImix[dc]12 ... 24V LTE700 Televes

€45.06

Description
Product Details

Masthead amplifier for the amplification and combination of terrestrial television and satellite signals coming from several antennas.

LTE700
Equipped with 3 inputs: the BIII/UHF input signal is amplified, whereas the FM and SAT signals are only combined.
Allows DC pass towards the satellite input to power the LNB.

Highlights

Equipped with USOS (User Selectable Output Signal) technology: the installer selects the desired output level, which remains stable. The device automatically adjusts gain according to the input signal variation.
Separate amplification and very low noise figure, thus respecting signal quality
Ultra-small ergonomic design
EasyF connection system
Can be powered in the 12 V-to-24 V range
Fully automated manufacturing, subject to the most stringent quality controls
High-screening Zamak chassis

Features

LTE/5G filter to remove mobile phone interference. LTE700
ON/OFF switch to allow DC pass towards the UHF input for the powering of a BOSS system
Easy mounting. Equipped with a plastic tie for mast mounting
Resistant ABS-plastic orange case for outdoor installation

Specifications

Bands			UHF + BIII		BI + FM	SAT
Frequency margin	MHz		470...694	174...254	47...108	950...2150
Gain	dB		28	18	-1.5	-2.5
Gain adjustment range	dB		AUTO 0 ... 15	AUTO 0 ... 15	-	-
Max.output level	dBμV	DIN 45004B	108	106	-	-
		EN 50083	115	113	-	-
		10 CH DVB-T	94	-	-	-
		2 CH DVB-T	-	90	-	-
Output level regulation margin	dB		0...12	0...12	-	-
Noise figure	dB		2	3	-	-
Power supply	V /mA		12-24 / 50
Max current through inputs	OFF	mA	0
	ON		40		-	-
	DC OUT -> DC SAT		-	-	-	300
Protection Level	IP		23
Temperature operat. limits	ºC		-5 ... +45
