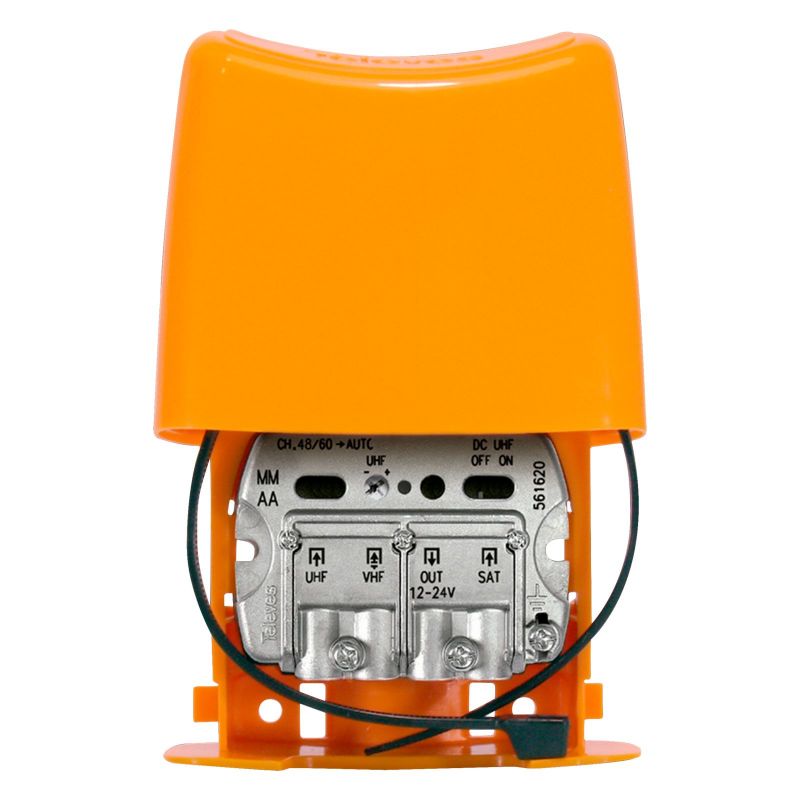

Masthead amplifier for the amplification and combination of terrestrial and satellite television signals coming from several antennas.
Equipped with 3 inputs: the UHF input signal is amplified, whereas the VHF and SAT signals are only combined.
Allows DC pass towards the satellite input to power the LNB.
Thanks to the Auto-LTE feature, the device is able to automatically switch the LTE filter on to filter channels from 48 (LTE700) to 60 (LTE790) depending on the scenario.

Highlights

• Equipped with USOS (User Selectable Output Signal) technology: the installer selects the desired output level, which remains stable. The device automatically adjusts gain according to the input signal variation.
• Separate amplification and very low noise figure, thus respecting signal quality
• Ultra-small ergonomic design
• EasyF connection system
• Can be powered in the 12 V-to-24 V range
• Fully automated manufacturing, subject to the most stringent quality controls
• High-screening Zamak chassis

Features

• LTE filter to remove mobile phone interference
• ON/OFF switch to allow DC pass towards the UHF input for the powering of a BOSS system
• Easy mounting. Equipped with a plastic tie for mast mounting
• Resistant ABS-plastic orange case for outdoor installation

Specifications
