  • Amplifier Mast NanoKom 3e/1s EasyF UHF[dc]/UHF/VHFmix 12...24V LTE700 Televes

Amplifier Mast NanoKom 3e/1s EasyF UHF[dc]/UHF/VHFmix 12...24V LTE700 Televes

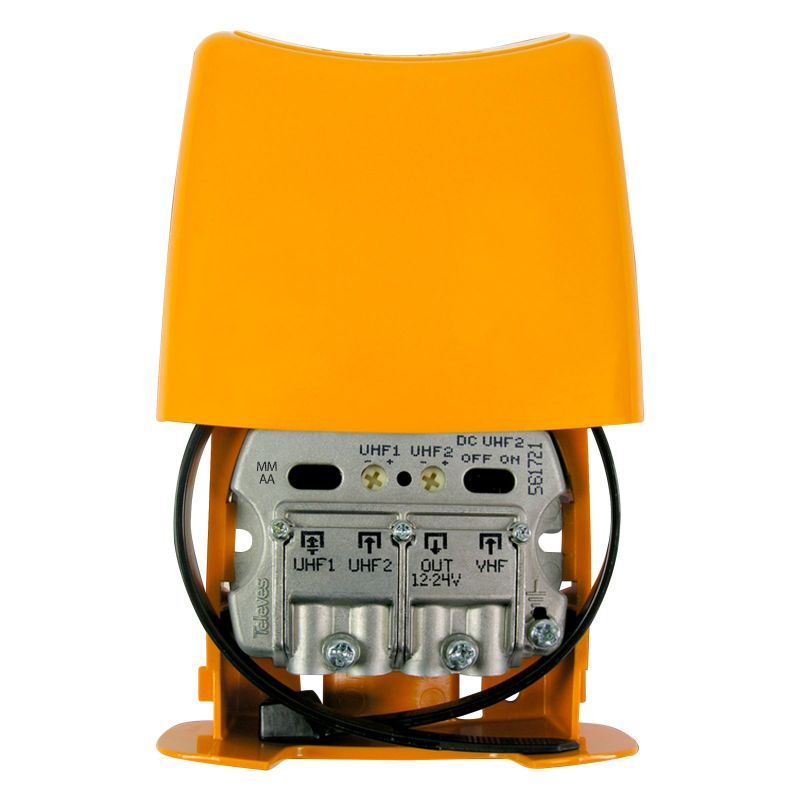

Masthead amplifier for the amplification and combination of terrestrial television signals coming from several antennas. LTE700. Equipped with 3 inputs: the signals on both UHF inputs are amplified, whereas the VHF signal is only combined. The amplifier is powered through the output coaxial cable. Televes 561721

€36.89
Tax included
Reference televes-561721
Brand Televes
Quantity
Available in 24/48h

Free shipping
Amplifier Mast NanoKom 3e/1s EasyF UHF[dc]/UHF/VHFmix 12...24V LTE700 Televes

Amplifier Mast NanoKom 3e/1s EasyF UHF[dc]/UHF/VHFmix 12...24V LTE700 Televes

€36.89

Masthead amplifier for the amplification and combination of terrestrial television signals coming from several antennas.

LTE700
Equipped with 3 inputs: the signals on both UHF inputs are amplified, whereas the VHF signal is only combined. The amplifier is powered through the output coaxial cable.

Highlights

  • Separate amplification and very low noise figure, thus respecting signal quality
  • Ultra-small ergonomic design
  • EasyF connection system
  • Can be powered in the 12 V-to-24 V range
  • Fully automated manufacturing, subject to the most stringent quality controls
  • High-screening Zamak chassis

Features

  • LTE/5G filter to remove mobile phone interference. LTE700
  • ON/OFF switch to allow DC pass towards one of the UHF inputs for the powering of a BOSS system
  • Easy mounting. Equipped with a clamp for mast mounting
  • Resistant ABS-plastic orange case for outdoor installation

Specifications

Bands UHF 1 UHF 2 VHF
Frequency margin MHz 470...694 470...694 47...254
Gain dB 28 -1.5
Gain adjustment range dB   0...20 -
Max.output level

dBμV /

dBmV

 DIN 45004B 108 -
EN 50083 115 -
10 CH DVB-T - - -
2 CH DVB-T - - -
Output level regulation margin dB - - -
Noise figure dB 6.5 -
Power supply V /mA 12 ... 24 / 50
Max current through inputs OFF mA 0
ON - 40 -
DC OUT -> DC SAT - - -
Protection Level IP 23
Temperature operat. limits

ºC

-5 ... +45
