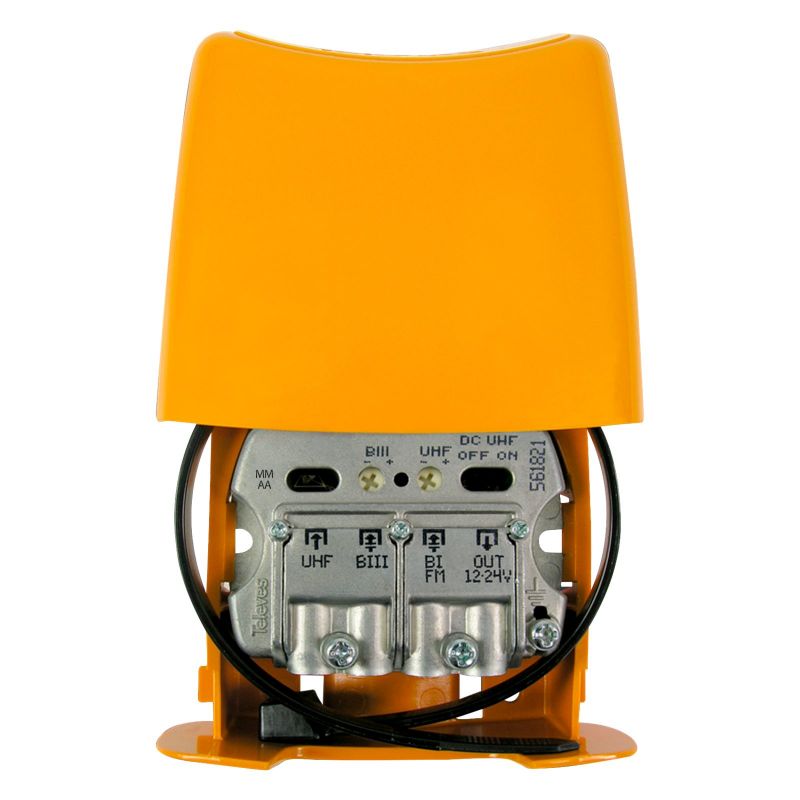

Masthead amplifier for the amplification and combination of terrestrial television signals coming from several antennas.

LTE700
Equipped with 3 inputs: the signals on the BIII and UHF inputs are amplified, whereas the FM signal is only combined.

Highlights

• Equipped with USOS (User Selectable Output Signal) technology: the installer selects the desired output level, which remains stable. The device automatically adjusts gain according to the input signal variation.
• Separate amplification and very low noise figure, thus respecting signal quality
• Ultra-small ergonomic design
• EasyF connection system
• Can be powered in the 12 V-to-24 V range
• Fully automated manufacturing, subject to the most stringent quality controls
• High-screening Zamak chassis

Features

• LTE/5G filter to remove mobile phone interference. LTE700
• ON/OFF switch to allow DC pass towards the UHF input for the powering of a BOSS system
• Easy mounting. Equipped with a plastic tie for mast mounting
• Resistant ABS-plastic orange case for outdoor installation

Specifications
