SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 742 AND id_lang = 1 Televes mast amplifier 1e / 1s BI / FM / BIII / UHF
Amplificador Televes de mástil 1e/1s BI/FM/BIII/UHF
search
  • Amplificador Televes de mástil 1e/1s BI/FM/BIII/UHF
  • Amplificador Televes de mástil 1e/1s BI/FM/BIII/UHF

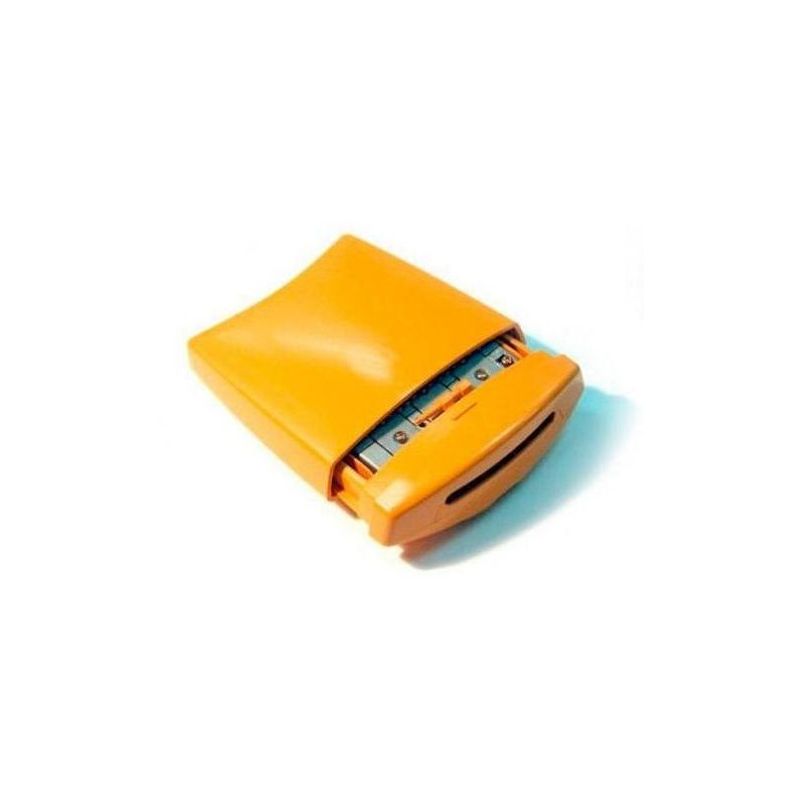

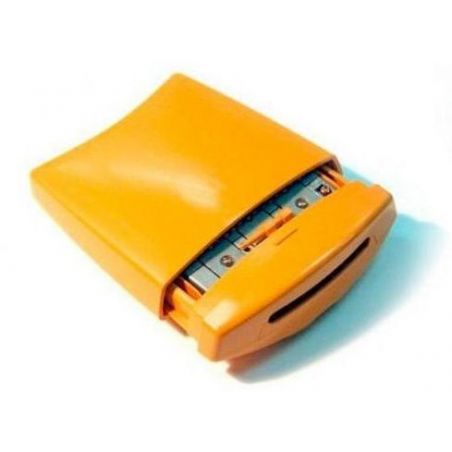

Mast Amplifier 1e / 1s FM / BIII / DAB / UHF Televes

For TDT. Tickets BI / BIII-FM-UHF. Gain regulation of 15dB in BI / BIII-UHF and 20dB in FM. Current flow in UHF. High IP23 weather protection factor. Quick connections Easy F. Includes Flange for fastening to the mast.

€40.34
Tax included
Reference televes-535640
Brand Televes
Quantity
Available in 24/48h

Free shipping
Amplificador Televes de mástil 1e/1s BI/FM/BIII/UHF

Mast Amplifier 1e / 1s FM / BIII / DAB / UHF Televes

€40.34

For TDT. Tickets BI / BIII-FM-UHF. Gain regulation of 15dB in BI / BIII-UHF and 20dB in FM. Current flow in UHF. High IP23 weather protection factor. Quick connections Easy F. Includes Flange for fastening to the mast.

Features

  • High and low gain solutions.
  • Solutions with SAT mix.
  • Automatic DC step control for your inputs.
  • Ergonomic design and easy assembly.
  • EasyF connection system.
  • ABS box.

Specifications

Reference  535640
Inputs BIII/DAB  FM UHF
Frequency range MHz 174-254  88-108 470-790
Gain dB 31  15 41
Gain regulation dB 0 ... 18 0 ... 15
Noise figure dB 8 -- 5,5
Output voltage dBµV  112 116
Step DC entry mA - 40
Reject entries dB -
Power supply Vdc 24
Consumption mA 75
Protection index IP 23
Dimensions mm 120 x 130 x 40
