SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 743 AND id_lang = 1 Televes mast amplifier 4e / 1s BI / BIII / DAB-FM-UU G38db
Amplificador mástil Televes 3e/1s BI/BIII/DAB-FM-U-U G38db
search
  • Amplificador mástil Televes 3e/1s BI/BIII/DAB-FM-U-U G38db

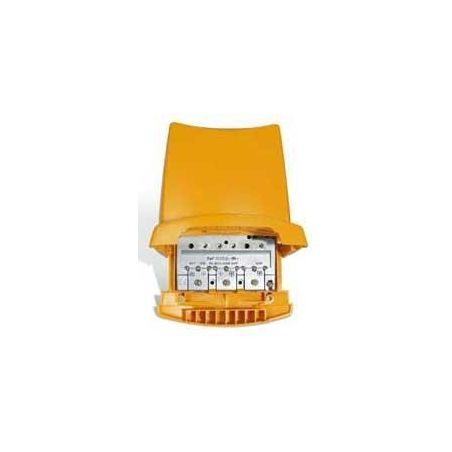

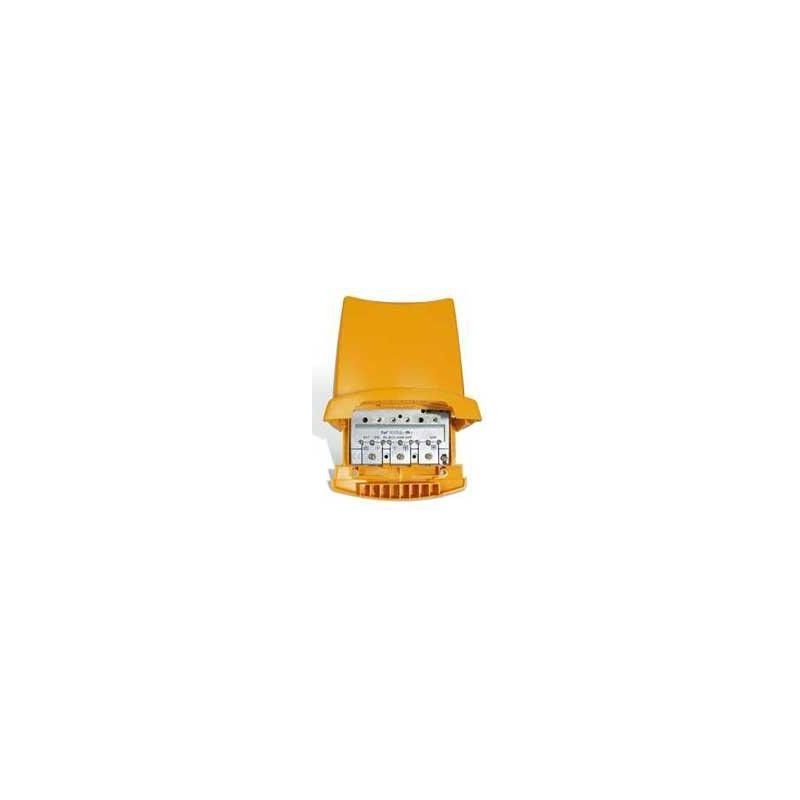

Mast amplifier 4e/1s BI/BIII/DAB-FM-U-U G39dB Televes

Band: BI / III-DAB / FM / UHF1 / UHF2. Frequency range (MHz): 47-68 / 175-254 / 88-108 / 470-862. Gain: 25 - 38. Regulation (dB): 15/20/15 / 15. Noise figure (dB): 4/4 / 7.5 / 7.5.

This product is replaced by the High gain mast amplifier (LTE700, 2nd Digital Dividend) 4 inputs: FM-BIII/DAB-UHF-UHF Televes

€58.14
Tax included
Reference televes-535840
Brand Televes
Quantity
Available in 24/48h

Free shipping
Amplificador mástil Televes 3e/1s BI/BIII/DAB-FM-U-U G38db

Mast amplifier 4e/1s BI/BIII/DAB-FM-U-U G39dB Televes

€58.14

Complete range of mast amplifiers, offering solutions for both terrestrial and satellite reception.

Features

  • High and low gain solutions.
  • Solutions with SAT mix.
  • Automatic DC step control for your inputs.
  • Ergonomic design and easy assembly.
  • EasyF connection system.
  • ABS box.

Specifications

Reference 535840
Inputs BIII-DAB FM UHF1 UHF2
Frequency range 174-254MHz 88-108MHz 470-790MHz
Gain 32dB 15dB 39dB
Gain regulation 0 ... 18dB 0 ... 18dB 0 ... 15dB
Noise figure 6dB - 9dB
Output voltage 112 dBµV 116 dBµV
Step DC entry - 45mA
Reject entries -dB
Power supply 24Vdc
Consumption 75mA
Protection index IP23
Dimensions 120 x 130 x 40 mm
