SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 744 AND id_lang = 1 Televes mast amplifier 2e / 4s U / Vmix-FI mix 4s
Amplificador de mástil Televes 2e/4s U/Vmix-FI mix 4s
search
  • Amplificador de mástil Televes 2e/4s U/Vmix-FI mix 4s

Amplificador de mastro Televes 2e / 4s U / Vmix-FI mix 4s

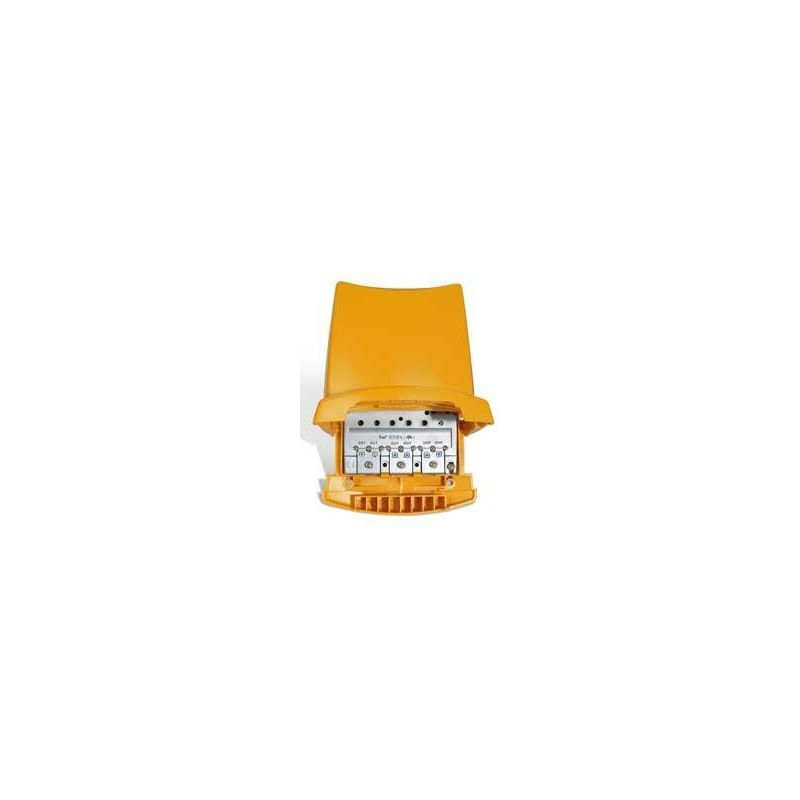

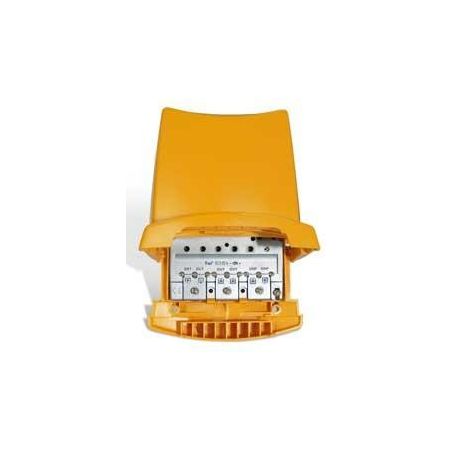

The Televes 5354 mast amplifier has 2 inputs and 4 outputs that also allow the passage of the signal of a parabolic antenna, with an amplification power of 21db.

€39.59
Tax included
Reference televes-5354
Brand Televes
Quantity
Available in 24/48h

Free shipping
Amplificador de mástil Televes 2e/4s U/Vmix-FI mix 4s

Amplificador de mastro Televes 2e / 4s U / Vmix-FI mix 4s

€39.59

Wide range of mast amplifiers offering solutions for both terrestrial and satellite reception.  Supplied in a weatherproof box made of ABS plastic.

Features

  • High / Low gain versions. Products with satellite input.
  • Automatic DC bypass to the inputs.
  • User friendly design for easy of use.
  • EasyF connection type.
  • Weatherproof cases made of ABS plastic.

Specifications

Reference  5354
 Inputs/ Bands  VHF  UHF SAT
 Frequency range MHz  47-254  470-862  950-2200
 Gain dB  -9 20  12
 Gain adjustment range dB 0 15 0
 Noise figure dB - 2.5 -
 Output level DIN45004B dBµV  - 93 -
 Max current through inputs mA - 40  350
 Power supply Vdc 12...24
 Current consumption mA 40
 Protection index IP 23
 Dimensions (Wid x Hei x Dep) mm 120 x 130 x 40

Data Sheet
