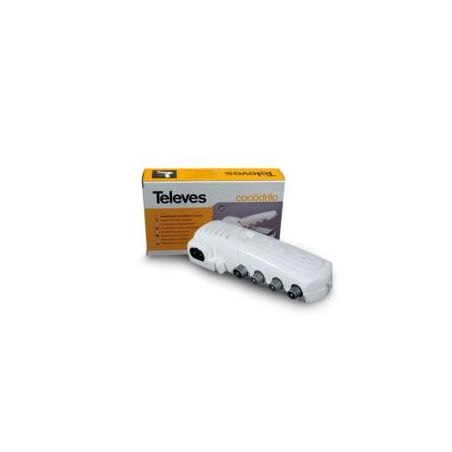

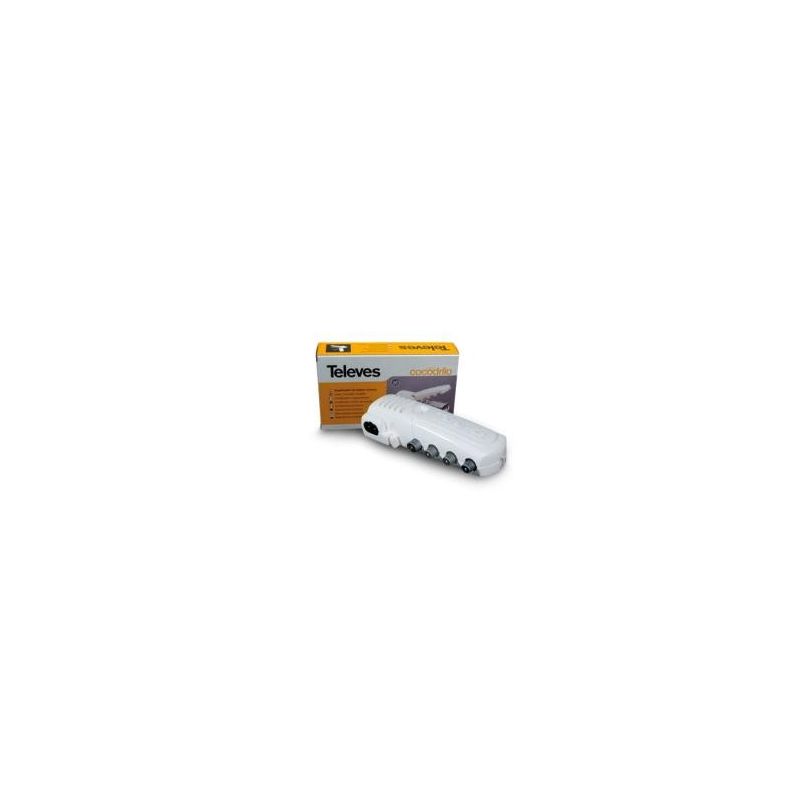

Amplificador interior de vivienda Televes 2S+TV+DC a conectores CEI gama MATV (47-862 MHz)

Indoor amplifier of housing Televes 2S + TV + DC to connectors CEI range MATV (47-862 MHz)

Current step for preamplifiers (MRD-Dipole ..). ON / OFF switch for the passage of current. Gain 20dB, 14dB on TV output. Regulation of Gain of 12 dB. Reduced size that facilitates its installation in boxes of 100 x 150mm.

This product is replaced by the IEC (DC) domestic amplifier 1e/(2s +TV) 47...694MHz G 20dB LTE700/5G Televes

€58.56

Tax included

Reference televes-545740

Brand Televes

Indoor amplifier of housing Televes 2S + TV + DC to connectors CEI range MATV (47-862 MHz)

€58.56

Description
Product Details

Wide range of housing amplifiers for MATV applications, characterized by their power output and low consumption.

Features

Fully automated manufacturing.
50% less consumption than a standard amplifier.
Low noise figure
Adjustable gain
Up to 5 exits

Specifications

Reference		545740
Inputs / Outputs		1(+Vdc)/S1-S2-TV
Frequency range	MHz	47-790
Gain	dB	20(S1-S2) 12(TV)
Gain regulation	dB	12
Output level (DIN 45004-B)	dBµV	106
Rejection between departures	dB	>25
Noise figure	dB	<5
Supply voltage	Vac	230±10%
Consumption	w	2
Protection index	IP	20
Dimensions	mm	145x45x35
Connector type		CEI
