Amplificador interior de vivenda Televes 2 salidas + TV G. 18/10+20/12 dB Vs 105+110 dBμV “F” - [BL]
search
  • Amplificador interior de vivenda Televes 2 salidas + TV G. 18/10+20/12 dB Vs 105+110 dBμV “F” - [BL]

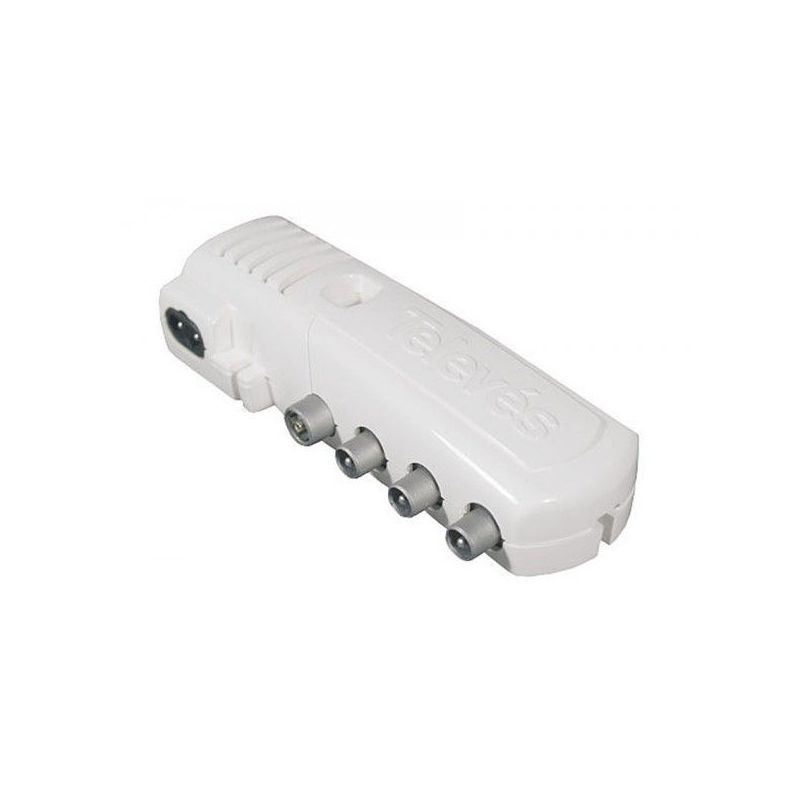

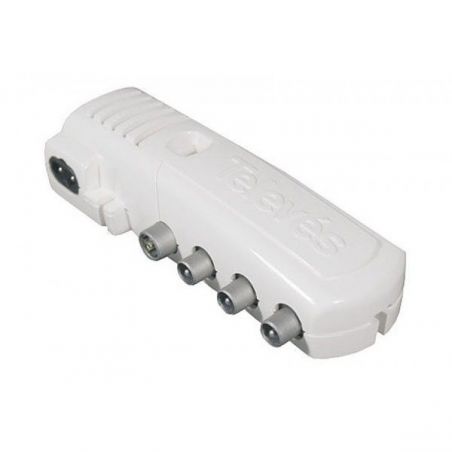

Indoor amplifier with 2 outputs + TV G. 18/10 + 20/12 dB Vs 105 + 110 dBμV "F" - [BL] Televes

Domestic amplifier for SMATV applications.

€58.14
Tax included
Reference televes-5530
Brand Televes
Quantity
Available in 24/48h

Free shipping
Amplificador interior de vivenda Televes 2 salidas + TV G. 18/10+20/12 dB Vs 105+110 dBμV “F” - [BL]

Indoor amplifier with 2 outputs + TV G. 18/10 + 20/12 dB Vs 105 + 110 dBμV "F" - [BL] Televes

€58.14

Domestic amplifier for SMATV applications.

Features

  • Fully automatic production.
  • Low Noise figure.
  • Adjustable gain.
  • Passive return path.
  • Up to 3 outputs. Allows power from outputs to input.

Specifications

Reference   5530
 Number of outputs 3 ( 2+TV )
 Foward path
 Frequency range MHz 47-862 950-2150
 Gain Outputs dB 18 20
TV 10 12
 Output level dBμV 105 110
 Gain adjustment dB 0-12  -
 Noise figure dB 5 3,5
Return path
 Frequency range  MHz  5-30
 Gain Outputs db  -9
TV  -16
 Power supply
 Main voltage Vac  196-264
 Max through current Out -> In mA 300
 AC Power consumption W 6
 Protection index IP 20
 Dimensions (Wid x Hei x Dep) mm 145 x 45 x 35
