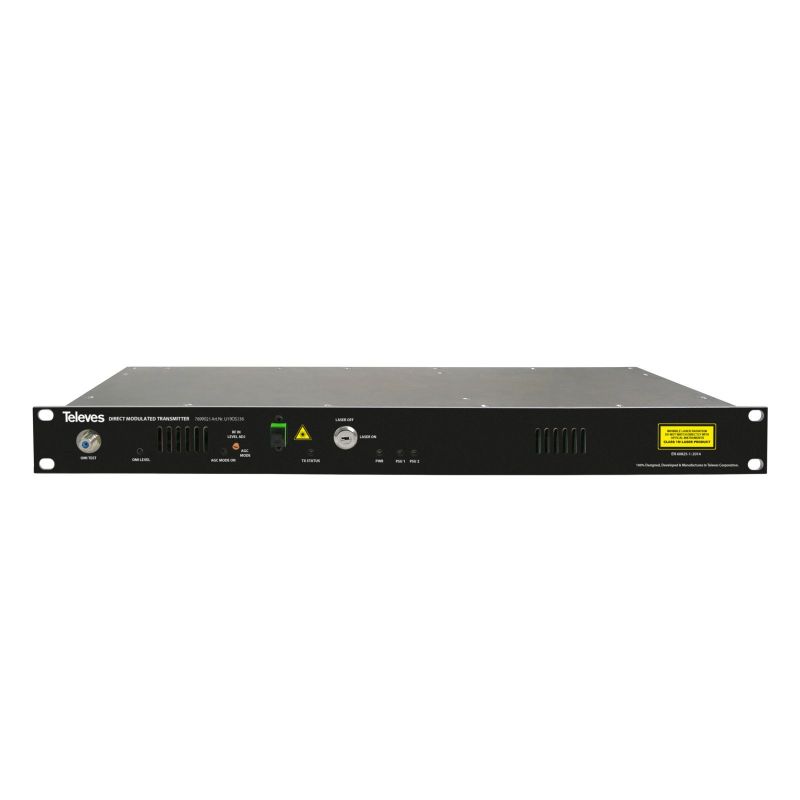

SMATV optical transmitter, 1RU rack 19” 1310 nm, Po 6 dBm Televes
Produces an optical signal in the 1310 nm-window modulated by the input RF SMATV signal (47 MHz- 2400 MHz). The optical output power is 6 dBm.
Perfect for RFoG / RF Overlay solutions.
€1,221.37
Tax included
Reference
televes-769902
Brand
Televes
SMATV optical transmitter, 1RU rack 19” 1310 nm, Po 6 dBm Televes
€1,221.37
Produces an optical signal in the 1310 nm-window modulated by the input RF SMATV signal (47 MHz- 2400 MHz). The optical output power is 6 dBm.
Perfect for RFoG / RF Overlay solutions.
Highlights
- SMATV-compatible: up to 2400 MHz input bandwidth
- RF input level control: optimization of the optical conversion quality parameters
- Optical power drop alarm
- 19"-rack installation, 1U height
Features
- Very low equivalent noise conversion
- Easy to install and use
- High energy efficiency
- SC/APC optical connectors, and F-type connectors for RF
Specs
| RF parameters | RF frequency range | MHz | 47 ... 2400 |
| RF input level (AGC: ON) | dBμV/dBmV | 75...90 / 15...30 | |
| SAT input level (AGC: ON) | dBμV/dBmV | RF - 10dB | |
| RF manual gain adjust | dB | 0 ... 14 (steps 2 dB) | |
| CAG control | dB | 20 | |
| Flatness (47...1218MHz) | dB | ± 0,5 | |
| Flatness (950...2400MHz) | dB | ± 2 | |
| Return losses (47...1218MHz) | dB | ≥ 10 | |
| Return losses (950...2400MHz) | dB | ≥ 7 | |
| Impedance | Ohm | 75 | |
| CSO (CENELEC 42) | dB | ≥ 60 | |
| CTB (CENELEC 42) | dB | ≥ 60 | |
| C/N | dB | >50 | |
| Optical | Laser | type | MQW-DFB |
| Wavelength | nm | 1310 ± 10 | |
| Optical power | dBm | 6 | |
| General | RF connectors | type | F female |
| Optical connectors | SC/APC | ||
| Supply voltage | VAC | 99 - 253 | |
| Frequency | Hz | 50/60 | |
| Power consumption | mA | 100 | |
| Operation temperature | ºC / ºF | -5…….45 / 32…….113 |
