search

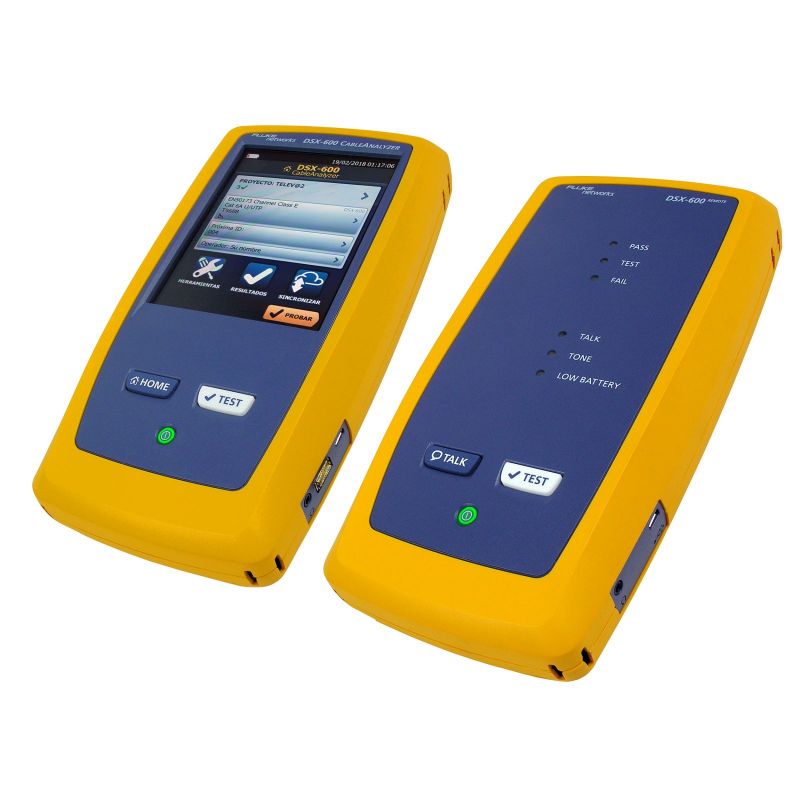

Televes DSX-600 Cat-6A Network Certifier (With channel adapters)

The DSX-600 is an indispensable certification tool for the analysis of twisted pair networks. Analyzing from Cat 3/Class C to Cat 6A/Class E, it offers speed and reliability to make your work more efficient and productive.

This product is replaced by the DSX-602 Network Certifier Cat-6A (With channel adapters) Televes

€8,463.95
Tax included
Reference televes-236703
Brand Televes
Quantity
Available in 3/4 days

Free shipping

Televes DSX-600 Cat-6A Network Certifier (With channel adapters)

€8,463.95

Cable analyzer. 2 channel adapters

Speed ​​and reliability

The DSX-600 is an indispensable certification tool for the analysis of twisted pair networks. Analyzing from Cat 3/Class C to Cat 6A/Class E, it offers speed and reliability to make your work more efficient and productive. No other tester will offer you as much consistency as the DSX-600.

Highlights

  • Frequency range up to 500 MHz that certifies Cat 6A/Class EA wiring for 10 Gigabit Ethernet in just 10 seconds
  • Function of advanced diagnoses that detect the location of the fault and suggest the corrective action
  • LinkWare ™ Live service (cloud-based), which allows you to manage certification jobs at any time, from anywhere, by any person and on any device
  • 5.7 "capacitive touch screen LCD
  • Gestural user interface
  • Storage capacity of up to 12000 Cat-6A test results with graphics

Features

  • Wiring map analysis, length, propagation delay, delay difference, DC loop resistance, insertion loss, return loss (RL), near end crosstalk (NEXT), attenuation/crosstalk ratio (ACR-N) , ACR-F (ELFEXT), Power Sum ACR-F (PS ELFEXT), Power Sum NEXT, Power Sum ACR-N
  • Great robustness of the equipment
  • High battery life (8 hours of continuous work)
  • Lightness (Only 1.36 kg of weight)
  • Transport case
  • Lithium-ion batteries

Specifications

Test standards
TIA Category 3, 5, 5e, 6, 6A according to TIA 568-C.2 or TIA-1005
ISO/IEC Certification of Classes C and D, E, EA according to ISO / IEC 11801: 2002 standards and their corresponding amendments
IEEE 802,3 10BASE-T, 100BASE-TX, 1000BASE-T, 10GBASE-T
UNE/EN Certification of Classes C and D, E, EA, according to standards UNE-EN 50173-1: 2011 (ICT2)
General specifications
Automatic check speed Full bi-directional automatic check of category 5e or 6 / class D or E: 9 seconds
Full bi-directional Autotest of category 6A / EA class: 10 seconds
Supported test parameters
(the standard determines the parameters and frequency range to be considered)		 Wiring map, length, propagation delay, delay difference, DC loop resistance, insertion loss (attenuation), return loss (Return Loss, RL), Near End Crosstalk (NEXT), Attenuation-to-crosstalk Ratio, ACR-F (ELFEXT), Power Sum ACR-F (PS ELFEXT), Power Sum NEXT , Power Sum ACR-N
Maximum frequency 500 MHz
Storage of Test Results 12000 (Cat-6A with graphics)
Screen  5.7 "screen on LCD screen with projected capacitive touch screen
Battery  Lithium-ion (7.2V)
Battery life 8 hours on average
Battery Charge Time 4 hours (below 40 ° C with the tester off)
Operating temperature  0 ° C to 45 ° C (32 ° F to 113 ° F)
Storage temperature -20 ° C to +60 ° C (-4 ° F to +140 ° F)
Operating relative humidity
(% RH without condensation)		 32 ° F to 95 ° F (0 ° C to 35 ° C): 0% to 90%
95 ° F to 113 ° F (35 ° C to 45 ° C): From 0% to 70%
Vibration Random , 2 g, from 5 Hz to 500 Hz
Knock Tests of falls from 1 m with and without module and adapter included
Security CSA 22.2 No. 61010, IEC 61010-1 3rd Edition
Altitude 4,000 m (13,123 ft)
3,200 m (10,500 ft) with AC adapter
EMC EN 61326-1: Portable
