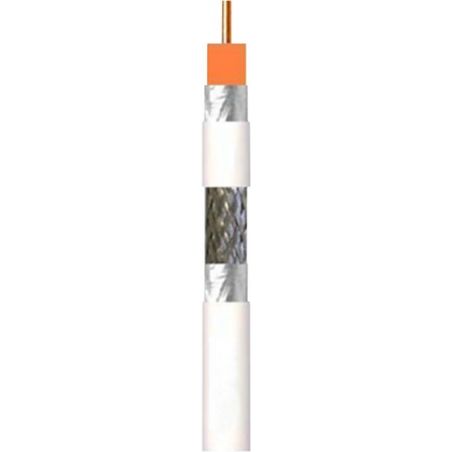

Coaxial cable SK125plus, 18VAtC

Ecla Euroclase and Class A + shielding

Coaxial cable with live and mesh made of copper (Cu / Cu) with a good braid coverage (55%). It is triple shielded (TSH) so it has a second extra sheet of extra armor. An 18VAtC cable, with PVC coverage.

Stands out for

• Conductors made of copper
• Class A screening +
• Euroclass Eca

Features

• Outer PVC cover in white
• Characteristic impedance of 75 ohm
• 500m wood coil

Coaxial cable trishield (TSH) Class A +

With 3 layers of shielding (trishield), these cables are those that provide greater immunity to interference, since they have a very high shielding. Its use is recommended in routes with high levels of electromagnetic noise.

Their constructive properties make them Class A +, complying with the EN 50117 standard:

At 5 - 30 MHz => TI <2.5 mΩ / m
At 5 - 1000 MHz => SA> 95 dB
At 1000 - 2000 MHz => SA> 85 dB
At 2000 - 3000 MHz => SA> 75 dB

Where, the transfer impedance (TI) defines the effectiveness of the shielding at low frequencies, and the shielding attenuation (SA) defines it between 30 and 3000MHz.
